49

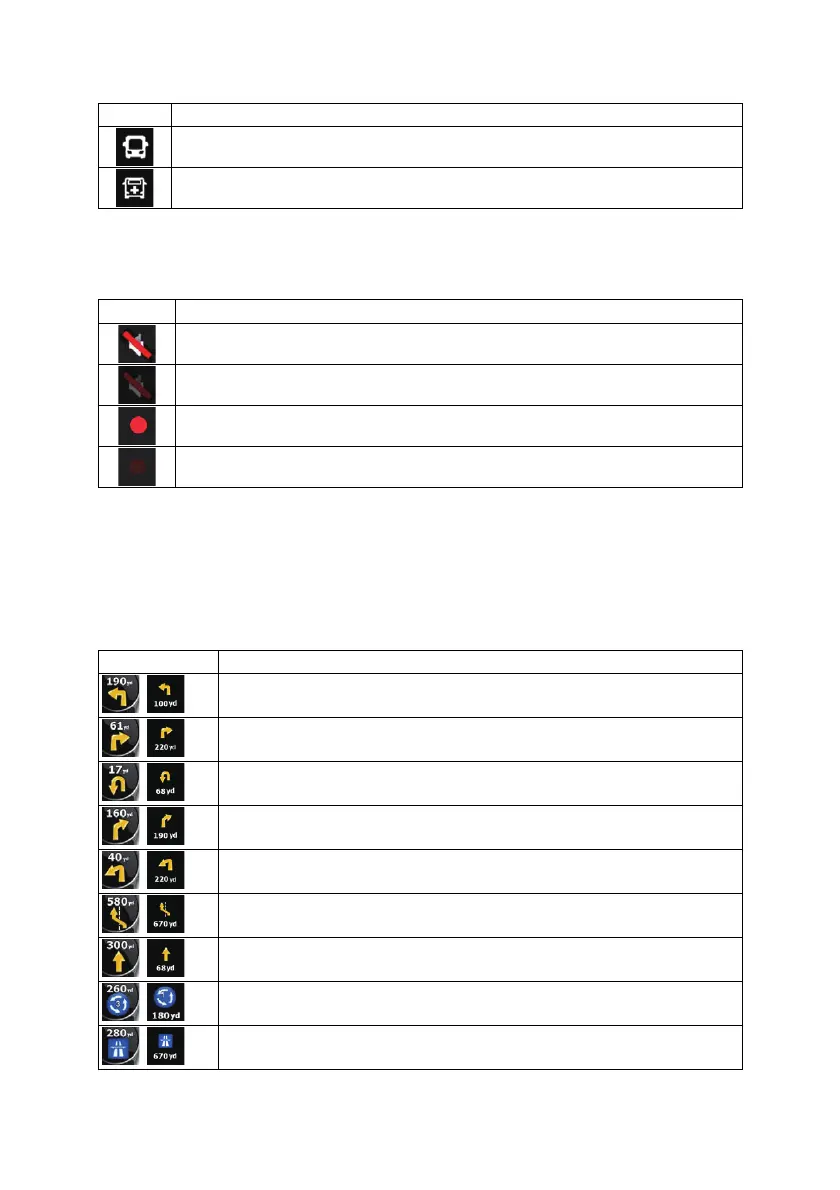

Icon Vehicle type
Bus
Emergency vehicles
4.1.1.2 Status indicator strip
This is a multiple status indicator. It indicates the following status information on a single strip:
Icon Description
The sound output of Clarion Mobile Map is muted.
The sound output of Clarion Mobile Map is enabled.
Clarion Mobile Map records a Track log when GPS position is available.
Track log recording is disabled.
4.1.1.3 Next two route events (Turn Preview fields)
There are two fields reserved on the Map screen to display the next two maneuvers (route events that
are listed in the Itinerary). Both the type of the event (turn, traffic circle, exiting freeway, etc.) and its
distance from the current GPS position is displayed.
Most of these icons are very intuitive and you also know them as road signs. The following table lists
some of the frequently shown route events. The same symbols are used in both fields:
Icon Description
,
Turn left.
,
Turn right.
,
Turn back.
,
Bear right.
,
Turn sharp left.
,
Keep left.
,
Continue straight in the intersection.
,
Enter traffic circle. The number of the exit is shown in the circle, but only for the
next turn.
,
Enter freeway.
