Clarion NX404 Quick Start Guide & Installation Manual

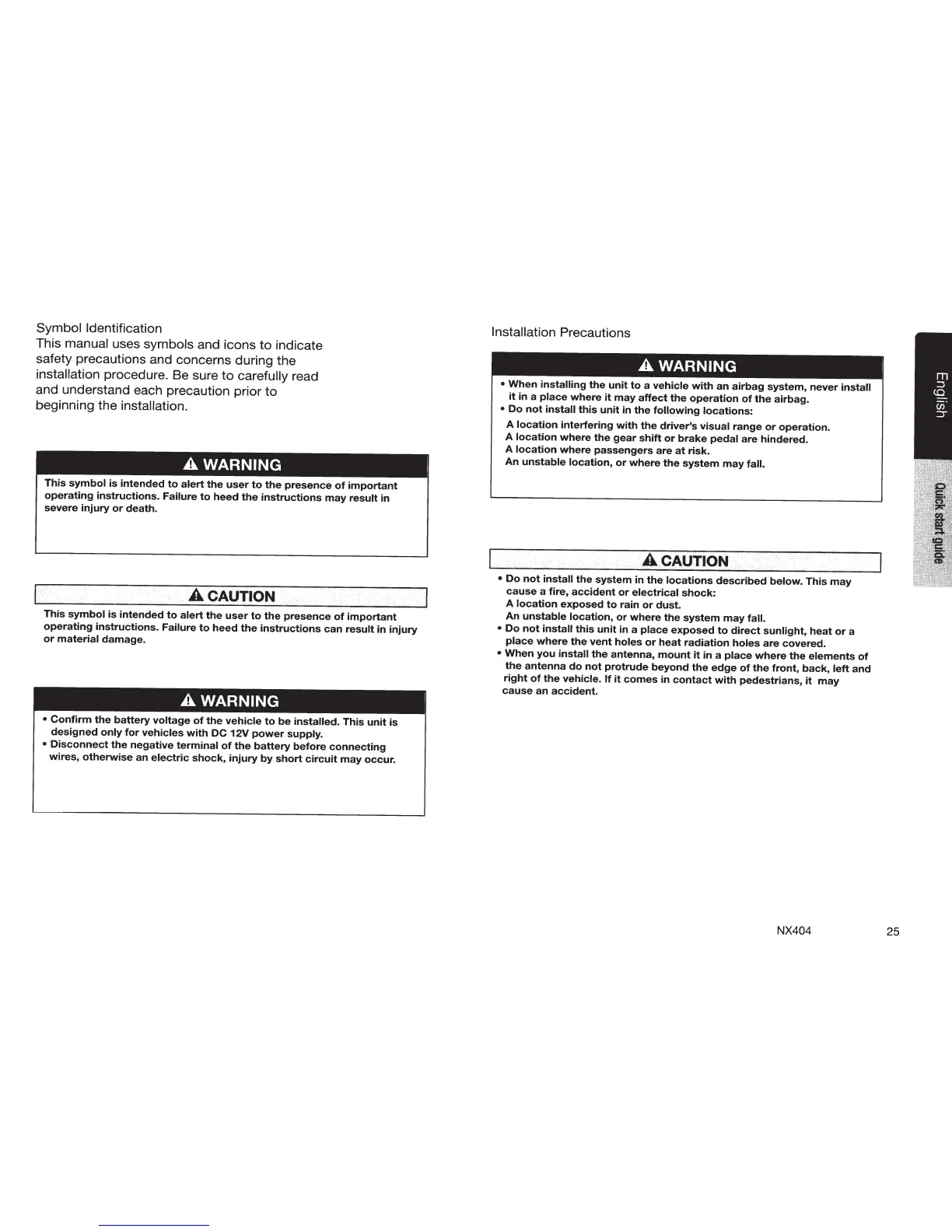

Symbol
Identification
This
manual uses symbols
and icons
to
indicate
safety precautions and concerns during
the
installation
procedure. Be sure
to
carefully
read
and understand each precaution
prior
to
beginning the installation.
A
WARNING
This
symbol
is
intended
to
alert
the
user
to
the
presence
of
important
operating
instructions.
Failure
to
heed
the
instructions
may
result
in
severe
injury
or
death.
A ·CAUTION
This
symbol
is
intended
to
alert
the
user
to
the
presence
of
important
operating
instructions.
Failure
to
heed
the
instructions
can
result
in
injury
or
material
damage.
AWARNING
I
•
Confirm
the
battery
voltage
of
the
vehicle
to
be
installed.
This
unit
is
designed
only
for
vehicles
with
DC
12V
power
supply.
•
Disconnect
the
negative
terminal
of
the
battery
before
connecting
wires,
otherwise
an
electric
shock,
injury
by
short
circuit
may
occur.
Installation
Precautions
AWARNING
I
•
When
installing
the
unit
to
a
vehicle
with
an
airbag
system,
never
install
it
in
a
place
where
it
may
affect
the
operation
of
the
airbag.
•
Do
not
install
this
unit
in
the
following
locations:
A
location
interfering
with
the
driver's
visual
range
or
operation.
A
location
where
the
gear
shift
or
brake
pedal
are
hindered.
A
location
where
passengers
are
at
risk.
An
unstable
location,
or
where
the
system
may
fall.
•
Do
not
install
the
system
in
the
locations
described
below.
This
may
cause
a
fire,
accident
or
electrical
shock:
A
location
exposed
to
rain
or
dust.
An
unstable
location,
or
where
the
system
may
fall.
•
Do
not
install
this
unit
in
a
place
exposed
to
direct
sunlight,
heat
or
a
place
where
the
vent
holes
or
heat
radiation
holes
are
covered.
•
When
you
install
the
antenna,
mount
it
in
a
place
where
the
elements
of
the
antenna
do
not
protrude
beyond
the
edge
of
the
front,
back,
left
and
right
of
the
vehicle.
If
it
comes
in
contact
with
pedestrians,
it
may
cause
an
accident.
NX404
25

Clarion NX404 Specifications

General

MP3 playback	Yes
CD-R playback	-
Audio formats supported	MP3
Video formats supported	DIVX
USB version	2.0
Line outputs (RCA)	6
USB ports quantity	2
DIN size	2 DIN
Output power	72 W
Product color	Black
Disc types supported	DVD, DVD+R, DVD+RW, DVD-R, DVD-RW
Audio output channels	4.0 channels
Equalizer bands quantity	3
Maximum power per channel	18 W
Analog signal format system	NTSC, PAL
Signal-to-Noise Ratio (SNR)	93 dB
AM band range	530 - 1710 kHz
FM band range	87.9 - 107.9 MHz
Supported radio bands	AM, FM
Aspect ratio	17:9
Display type	TFT
Display diagonal	6.2 \
Output power description	4 x 18

Weight and Dimensions

Weight	2268 g
Dimensions (WxDxH)	178 x 172 x 100 mm
