16. HDMI MODE
Wire
Wire
Wire
Wire
Connection
of
of
of
of
HDMI
HDMI
HDMI
HDMI
Mode
can be connected by using the connector cable
supplied with the and HDMI cable (sold in the
market) or CCA-770 and digital Av adapter.

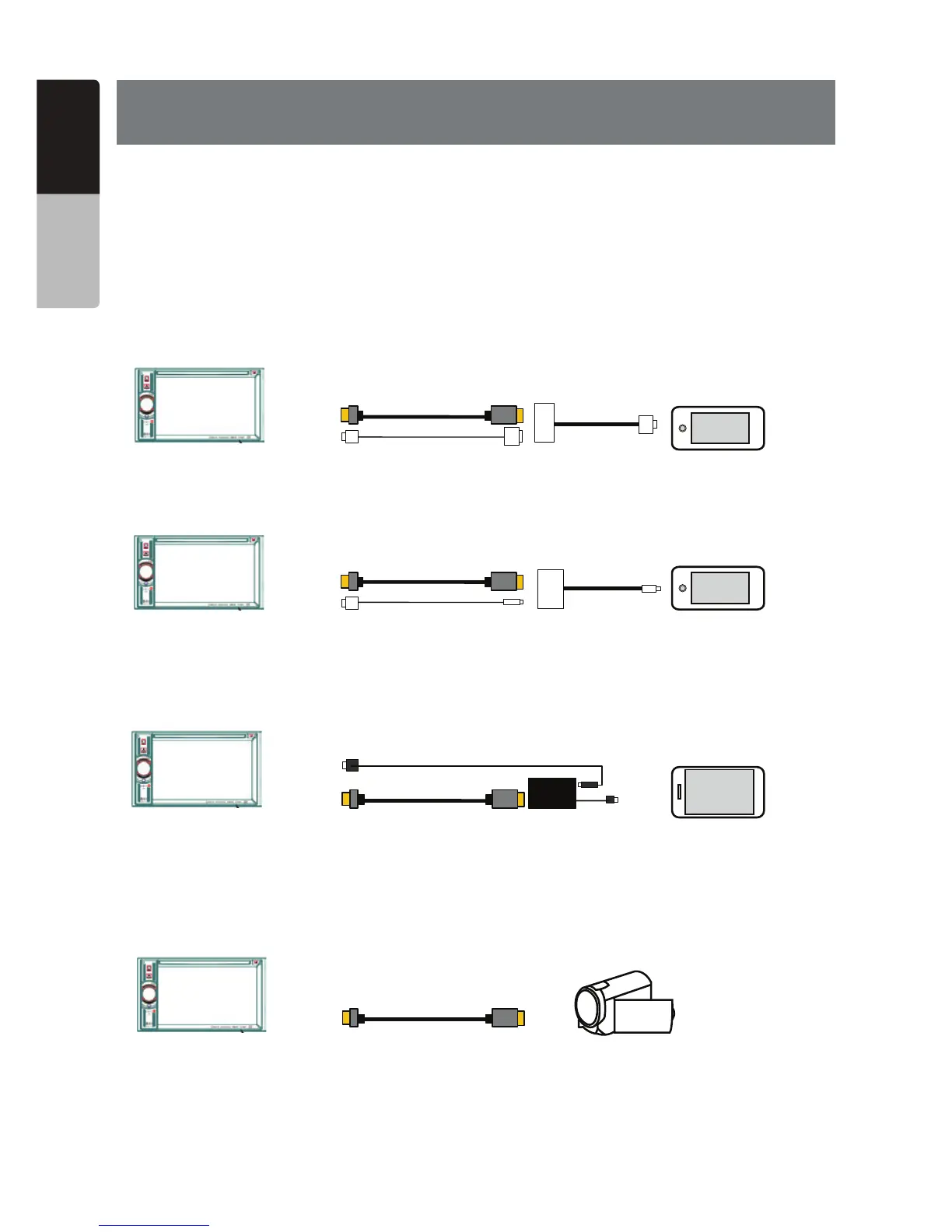

(1) Connection with the iPhone 4 and iPhone 4S
NX404
Apple Genuine
30pin-Digital AV adapter
(3) Connection with the Android Phone
NX404
Apple Genuine 30pin cable
䎰䏌䏆䏕䏒䎃䎸䎶䎥䎃䏆䏄䏅䏏䏈䎃䏖䏒䏏䏇䎃䏌䏑䎃䏗䏋䏈䎃䏐䏄䏕䏎䏈䏗
MHL adaptor sold
in the market
(2) Connection with the iPhone 5, iPhone 5s and iPhone 5c
NX404
iPhone 5, iPhone 5s and iPhone 5c
Apple Genuine
Lightning-Digital AV adapter
pple Genuine Lightning
TM
cable
HDMI cable sold in the market or
䧴
CCA-770
HDMI cable sold in the market or
䧴
CCA-770
HDMI cable sold in the
market or
䧴
CCA-770
(4) ConnecƟon with the equipment with HDMI output
NX404
Electronic devices with HDMI output
HDMI cable sold in the
market
iPhone 4, iPhone 4S, iPhone 5, iPhone 5s and iPhone 5c
iPhone 4, iPhone 4S, iPhone 5, iPhone 5s and iPhone 5c
.OTE
4HEFOLLOWINGISPARTOFTHEWIRINGEXAMPLE
Depending on the device, there is a case to connect to the device directly with the CCA-771.
Depending on the adapter or device, there is a case that the audio noise and video noise is generated.
