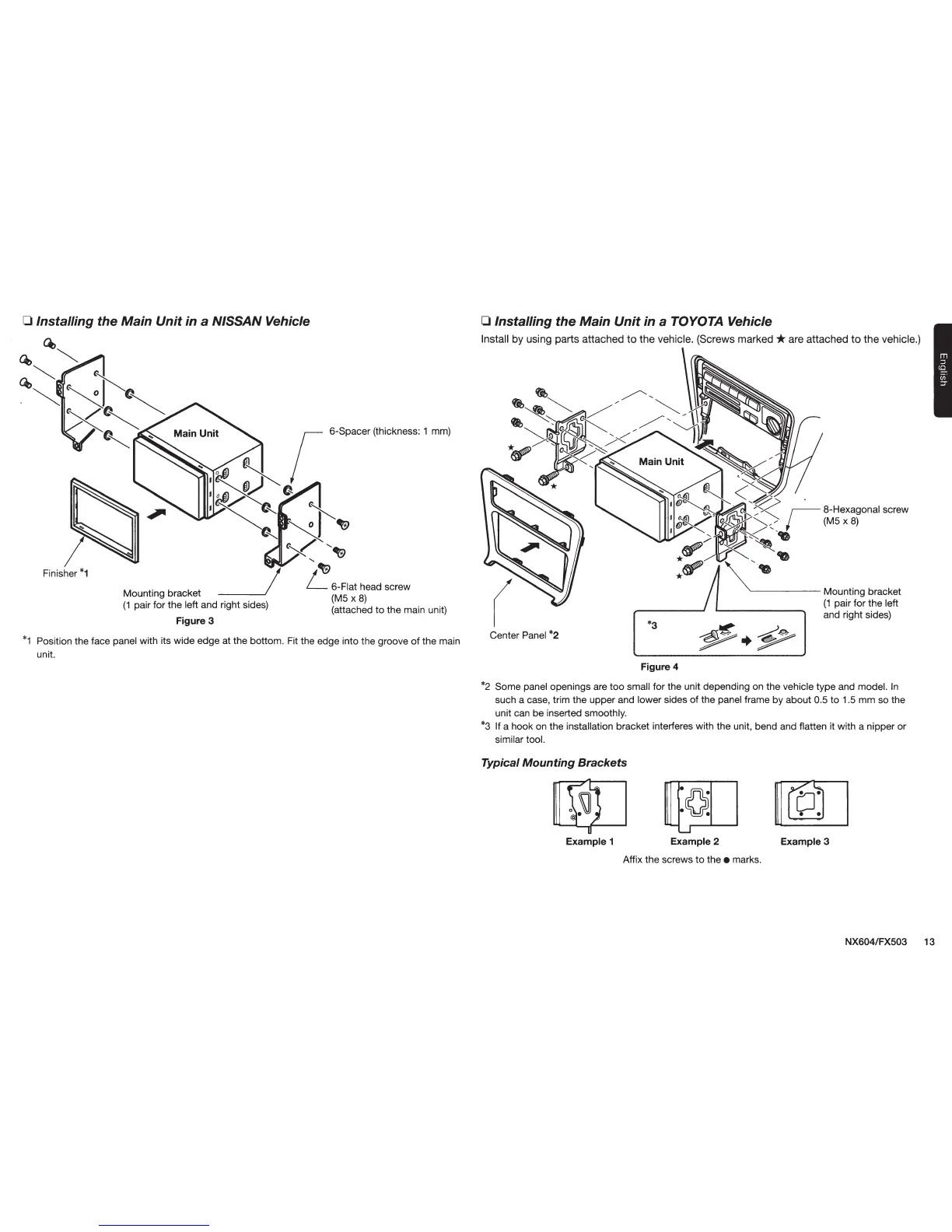

0 Installing
the
Main
Unit
in a NISSAN Vehicle
Finisher
*1
Mounting bracket
(1
pair for the left and right sides)
Figure 3
*1
Position the face panel with its wide edge at the bottom. Fit the edge into the groove
of
the main
unit.
0 Installing
the
Main
Unit
in
a TOYOTA Vehicle
Center Panel *2
Figure 4
*2
Some panel openings are too small for the unit depending on the vehicle type and model.
In
such a case, trim the upper and lower sides of the panel frame by about 0.5
to
1.5 mm so the
unit can be inserted smoothly.
*3 If a hook
on
the installation bracket interferes with the unit, bend and flatten it with a nipper or
similar tool.
Typical
Mounting
Brackets
Example 1
Example 2
Example 3
Affix the screws
to
the • marks.
NX604/FX503 13
To Next Page
