Page #16 background imageLoading...
Page #16 background image
0

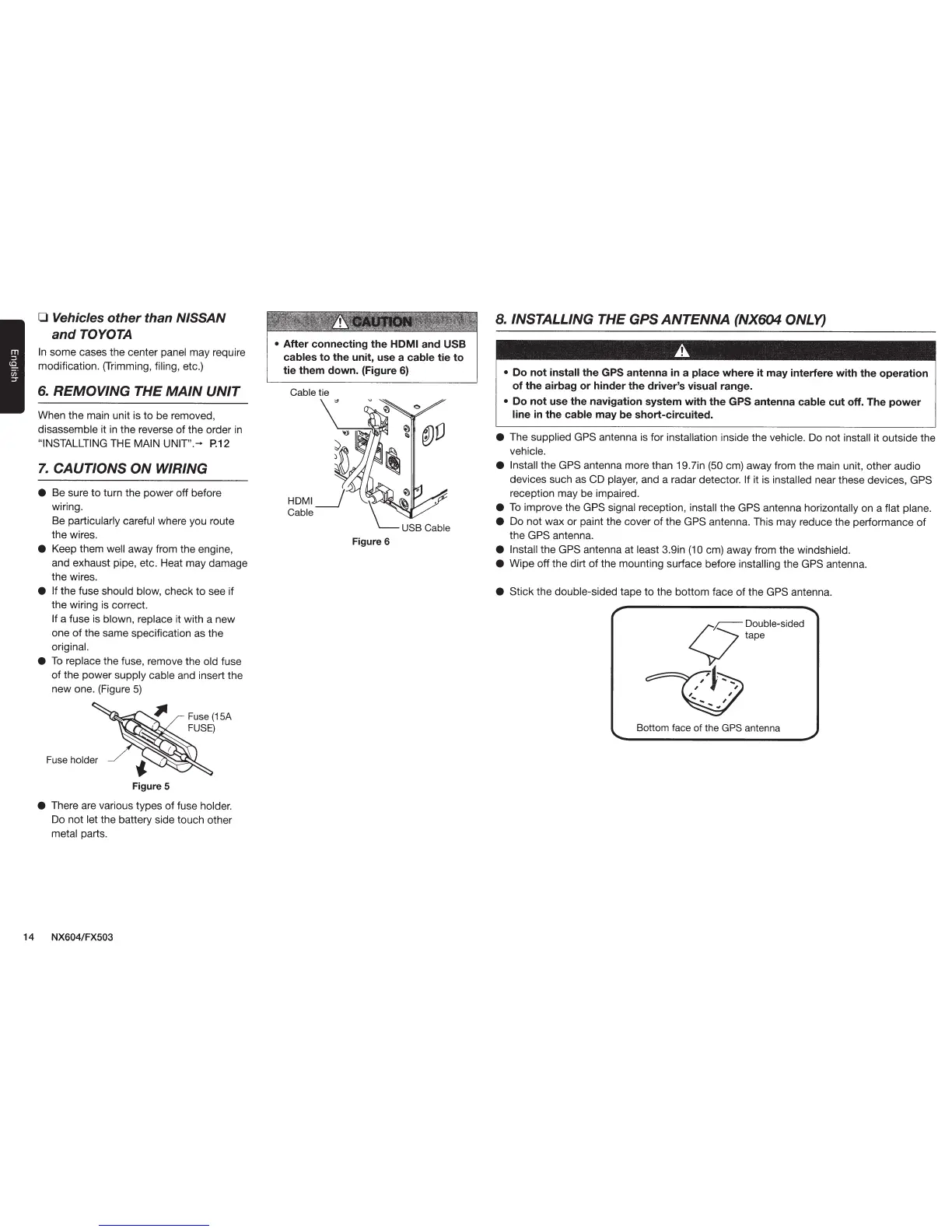

Vehicles
other
than
NISSAN
and
TOYOTA
In
some
cases the center panel
may
require
modification. (Trimming, filing, etc.)
6.
REMOVING THE
MAIN
UNIT
When
the
main unit is
to
be removed,
disassemble it
in
the reverse
of
the
order
in
"INSTALLTING
THE MAIN UNIT"
.....
P.12
7.
CAUTIONS
ON
WIRING
e
Be sure
to
turn the
power
off
before
wiring.
Be
particularly careful where you route
the
wires.
e Keep them
well
away from the engine,
and exhaust pipe, etc. Heat
may
damage
the wires.
e
If
the
fuse should blow,
check
to
see if
the
wiring is correct.
If
a fuse is blown, replace it with a
new
one
of
the same specification as
the
original.
e
To
replace the fuse, remove the
old
fuse
of
the
power
supply
cable and insert
the
new
one. (Figure
5)
Fuse holder
Figure 5
Fuse (15A
FUSE)
e
There are various
types
of
fuse holder.
Do
not
let
the battery side
touch
other
metal parts.
14 NX604/FX503
•
After
connecting
the
HDMI
and
USB
cables
to
the
unit, use a
cable
tie
to
tie
them
down.
(Figure 6)
Cable tie
Figure
6
8. INSTALLING THE
GPS
ANTENNA
(NX604 ONLY)
•
Do
not
install
the
GPS
antenna in a
place
where
it
may
interfere
with
the
operation
of
the
airbag
or
hinder
the
driver's
visual
range.
•
Do
not
use
the
navigation
system
with
the
GPS
antenna
cable
cut
off. The
power
line
in
the
cable
may
be
short-circuited.
e
The supplied GPS
antenna is
for
installation inside the vehicle. Do
not
install
it
outside
the
vehicle.
e
Install
the
GPS antenna more than 19.7in (50
em)
away
from the main unit, other
audio
devices such as
CD
player, and a radar detector.
If it is installed near these devices,
GPS
reception
may
be impaired.
e
To
improve the
GPS
signal reception,
install
the
GPS
antenna
horizontally on a flat plane.
e
Do
not
wax
or
paint the
cover
of
the
GPS
antenna. This
may
reduce the performance
of
the
GPS
antenna.
e
Install
the
GPS
antenna at least 3.9in
(1
0 em)
away
from the windshield.
e
Wipe
off
the
dirt
of
the
mounting surface before
installing
the
GPS
antenna.
e
Stick
the
double-sided
tape
to
the
bottom
face
of
the
GPS
antenna.
Bottom face
of
the
GPS antenna
