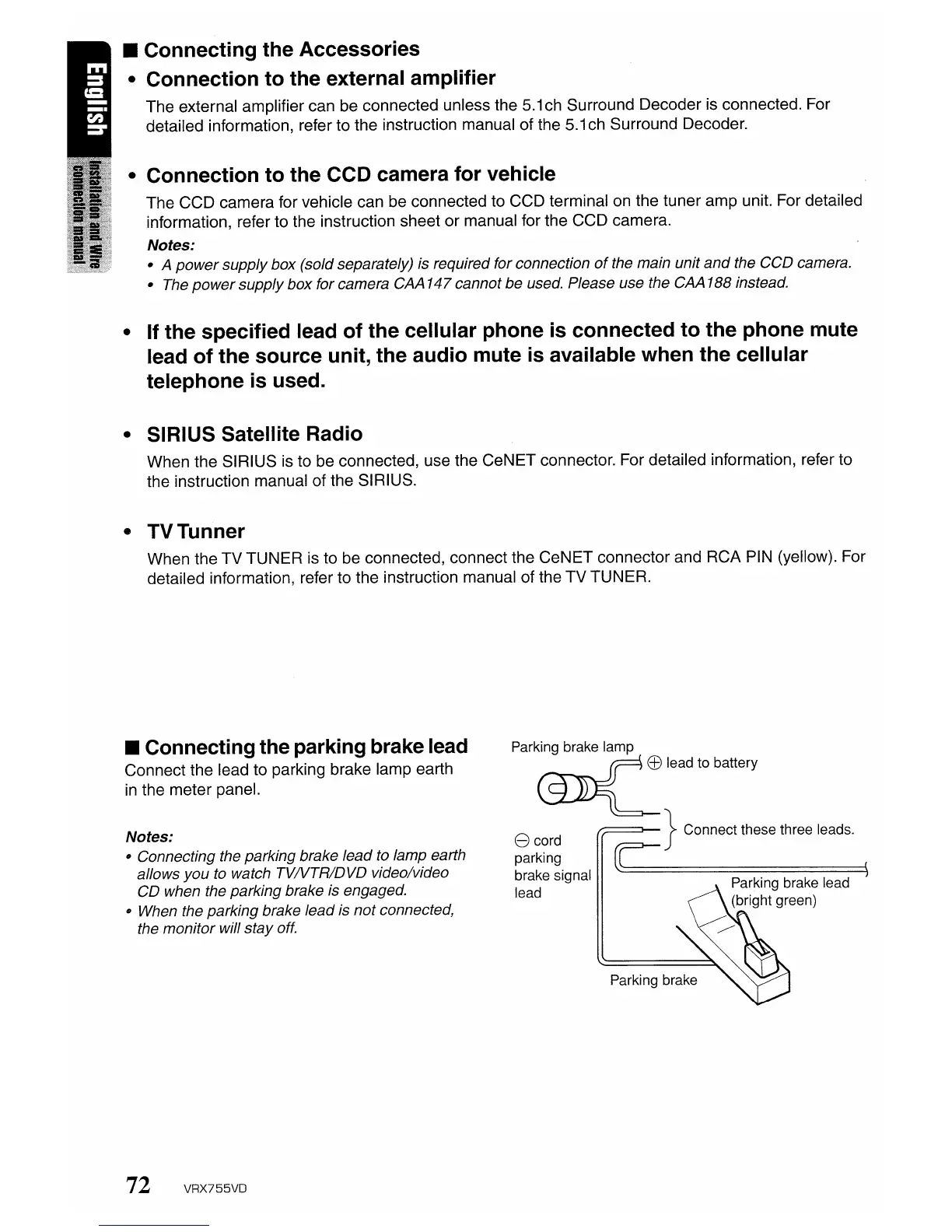

• Connecting the Accessories
• Connection to the external amplifier
The external amplifier can be connected unless the
5.1
ch
Surround Decoder is connected. For
detailed information, refer to the instruction manual of the
5.1
ch Surround Decoder.
• Connection to the CCO camera for vehicle
The CCD camera for vehicle can be connected to CCD terminal on the tuner amp unit. For detailed
information, refer to the instruction sheet or manual for the CCD camera.
Notes:
• A
power
supply box (sold separately) is required for connection
of
the main unit
and
the CCO camera.
• The power supply box for camera CAA 147cannot be used. Please use the CAA 188 instead.
• If the specified lead of the cellular phone is connected to the phone mute
lead of the source unit, the audio mute
is
available when the cellular
telephone is used.
• SIRIUS Satellite Radio
When the SIRIUS
is
to be connected, use the CeNET connector. For detailed information, refer to
the instruction manual of the SIRIUS.
• TVTunner
When the TV TUNER is to be connected, connect the CeNET connector and RCA PIN (yellow). For
detailed information, refer to the instruction manual of the TV TUNER.
• Connecting the parking brake lead
Connect the lead to parking brake lamp earth
in
the meter panel.
Notes:
• Connecting the parking brake lead to lamp earth
allows you to watch TVNTR/OVO video/video
CO
when the parking brake is engaged.
II
When the parking brake lead is not connected,
the monitor will stay off.
72 VRX755VD
Parking brake lamp
~
lead to battery
e
d
}
Connect these three leads.
- cor
parking
C
brake signal
~====================~
lead
Parking brake
