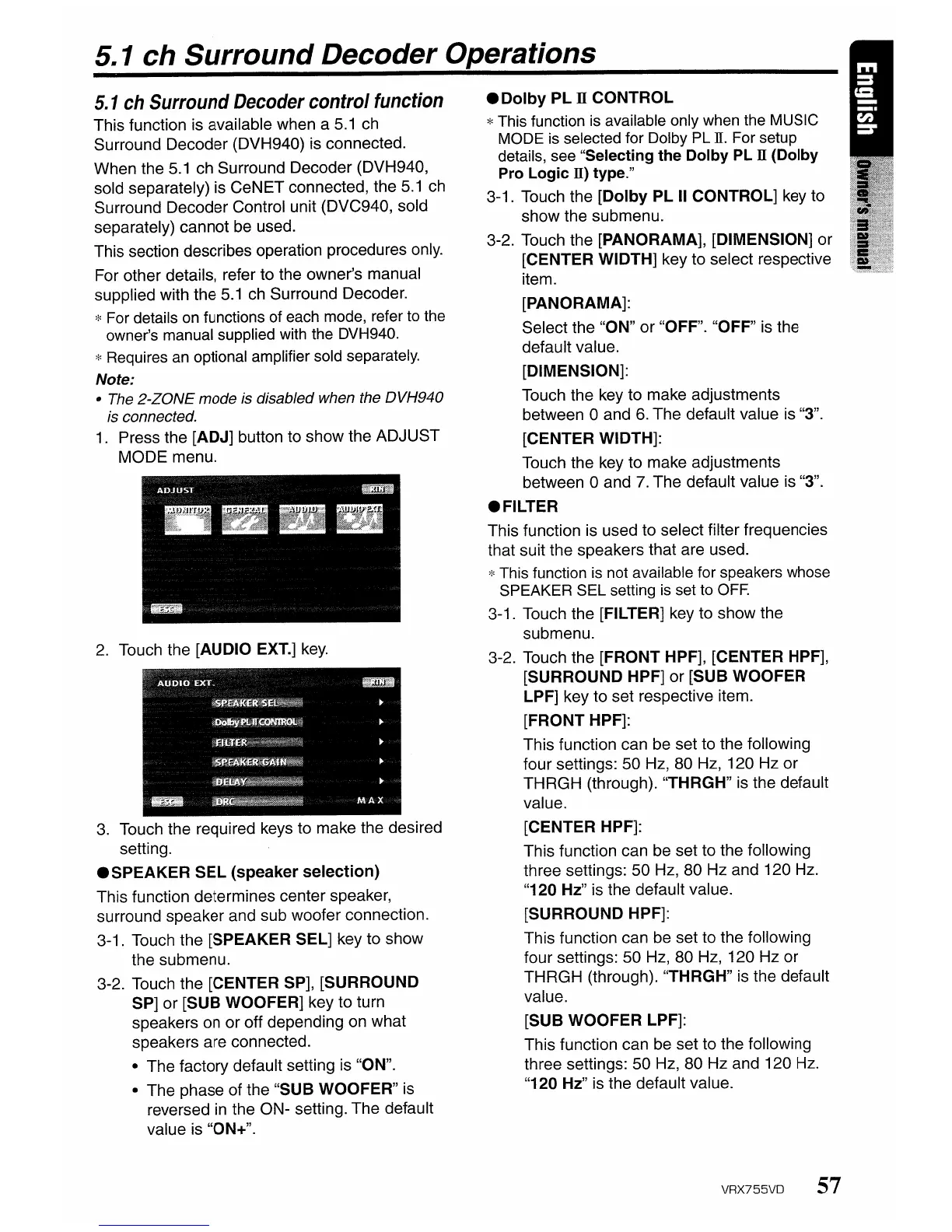

5.1
ch
Surround
Decoder Operations
5.1
ch
Surround
Decoder
control function
This function is available when a
5.1
ch
Surround Decoder (DVH940) is connected.
When the
5.1
ch Surround Decoder (DVH940,
sold separately) is CeNET connected, the
5.1
ch
Surround Decoder Control unit (DVC940, sold
separately) cannot be used.
This section describes operation procedures only.
For other details, refer to the owner's manual
supplied with the
5.1
ch Surround Decoder.
* For details
on
functions of each mode, refer
to
the
owner's manual supplied with the DVH940.
* Requires
an
optional amplifier sold separately.
Note:
The
2-Z0NE
mode is disabled when the DVH940
is connected.
1.
Press the [ADJ] button to show the ADJUST
MODE menu.
2.
Touch the [AUDIO EXT.]
key.
3.
Touch the required keys to make the desired
setting.
.SPEAKER
SEL
(speaker
selection)
This function determines center speaker,
surround speaker and sub woofer connection.
3-1. Touch the
[SPEAKER
SEL] key to show
the submenu.
3-2. Touch the [CENTER SP], [SURROUND
SP] or [SUB WOOFER] key to turn
speakers on or off depending on what
speakers are connected.
The factory default setting is "ON".
The phase of the "SUB WOOFER" is
reversed in the ON- setting. The default
value is "ON+".
Dolby
PL
n
CONTROL
*This function
is
available only when the MUSIC
MODE
is
selected for Dolby
PL
ll. For setup
details, see "Selecting the Dolby PL
II
(Dolby
Pro
Logic
ll)
type."
3-1. Touch the
[Dolby
PL
II
CONTROL] key to
show the submenu.
3-2. Touch the [PANORAMA], [DIMENSION] or
[CENTER WIDTH] key to select respective
item.
[PANORAMA]:
Select the "ON"
or
"OFF". "OFF" is the
default value.
[DIMENSION]:
Touch the key to make adjustments
between 0 and
6.
The default value is "3".
[CENTER WIDTH]:
Touch the key to make adjustments
between 0 and
7.
The default value is "3".
FILTER
This function is used to select filter frequencies
that suit the speakers that are used.
*This function
is
not available for speakers whose
SPEAKER SEL setting
is
set
to
OFF.
3-1. Touch the [FILTER] key to show the
submenu.
3-2. Touch the [FRONT HPF], [CENTER HPF],
[SURROUND HPF]
or
[SUB WOOFER
LPF] key to set respective item.
[FRONT HPF]:
This function can be set to the following
four settings: 50 Hz, 80 Hz, 120 Hz or
THRGH (through). "THRGH" is the default
value.
[CENTER HPF]:
This function can be set to the following
three settings: 50 Hz, 80 Hz and 120 Hz.
"120 Hz" is the default value.
[SURROUND HPF]:
This function can be set to the following
four settings: 50 Hz, 80 Hz, 120 Hz or
THRGH (through). "THRGH" is the default
value.
[SUB WOOFER LPF]:
This function can be set to the following
three settings: 50 Hz, 80 Hz and 120 Hz.
"120 Hz" is the default value.
VRX755VD 57
