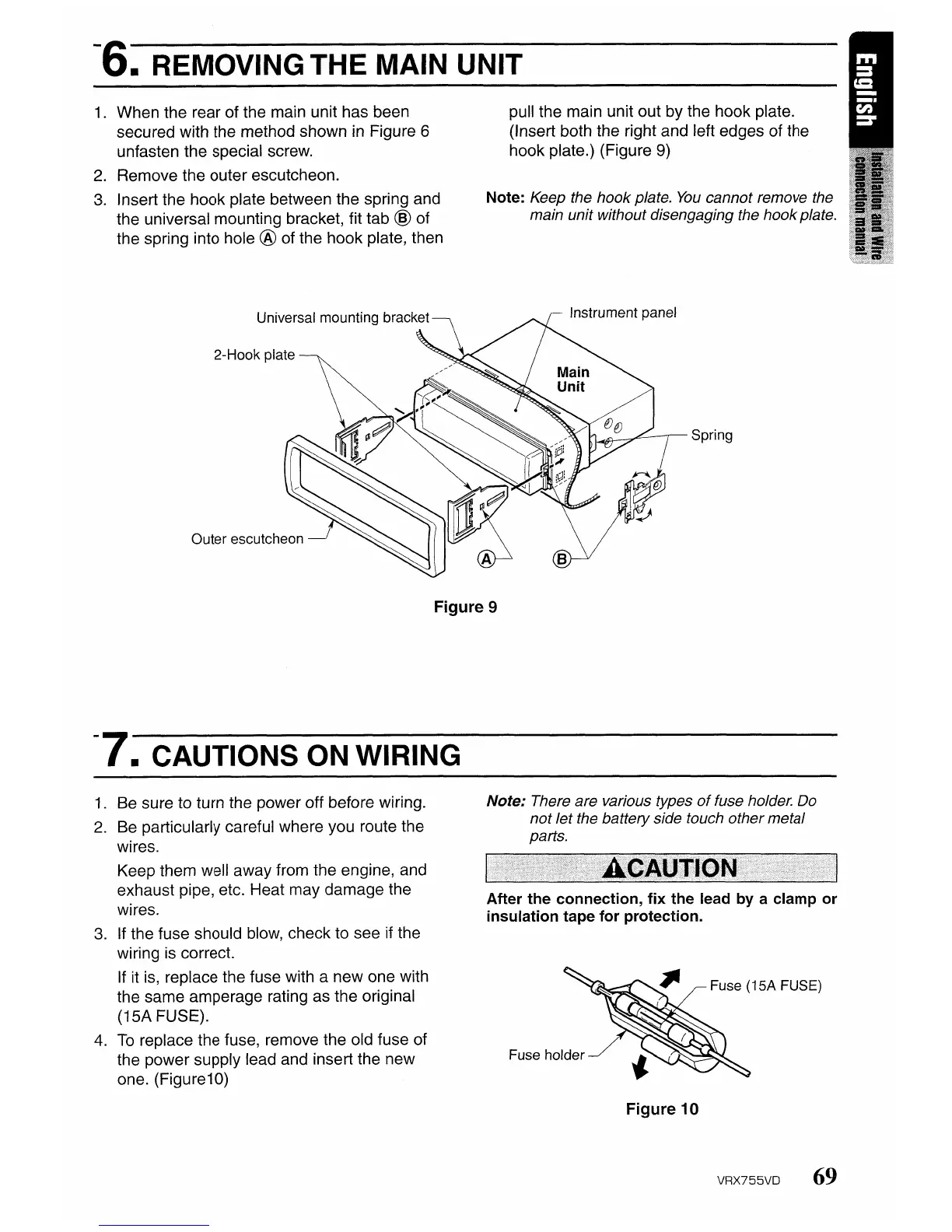

-6.
REMOVING THE MAIN UNIT
1.
When the rear of the main unit has been
secured with the method shown in Figure 6
unfasten the special screw.
2. Remove the outer escutcheon.
3.
Insert the hook plate between the spring and
the universal mounting bracket, fit tab
® of
the spring into hole
® of the hook plate, then
2-Hook plate
Outer escutcheon
pull the main unit out by the hook plate.
(Insert both the right and left edges of the
hook plate.) (Figure 9)
Note: Keep the hook plate.
You
cannot remove the
main unit without disengaging the hook plate.
Instrument panel
Spring
8
Figure 9
-7.
CAUTIONS ON WIRING
1.
Be sure to turn the power off before wiring.
2.
Be particularly careful where you route the
wires.
Keep them well away from the engine, and
exhaust pipe, etc. Heat may damage the
wires.
3.
If the fuse should blow, check to see if the
wiring is correct.
If it is, replace the fuse with a new one with
the same amperage rating as the original
(15A FUSE).
4.
To
replace the fuse, remove the old fuse of
the power supply lead and insert the new
one. (Figure10)
Note: There are various types
of
fuse holder. Do
not let the battery side touch other metal
parts.
After
the
connection,
fix
the
lead by a
clamp
or
insulation
tape
for
protection.
Fuse (15A FUSE)
Fuse holder
Figure 10
VRX755VD 69
