H1/3 WHITE/BLUE (-) remote start activation input
This input comes from the factory set to 2 activation pulses. This means that it is necessary to have
2 consecutive ground pulses on the white/blue wire for the remote start to activate or to deactivate.
The same holds true for the remote control activation when set to a two pulse setting it is necessary
to press the button twice for the remote start to activate or deactivate.
NNOOTTEE::
When the activation pulse count can be programmed to 1, 2, or 3 pulses when changed it will affect
both activation inputs; the White/Blue wire and the remote control activation.
H1/4 BLACK /WHITE (-) 200 mA domelight supervision output

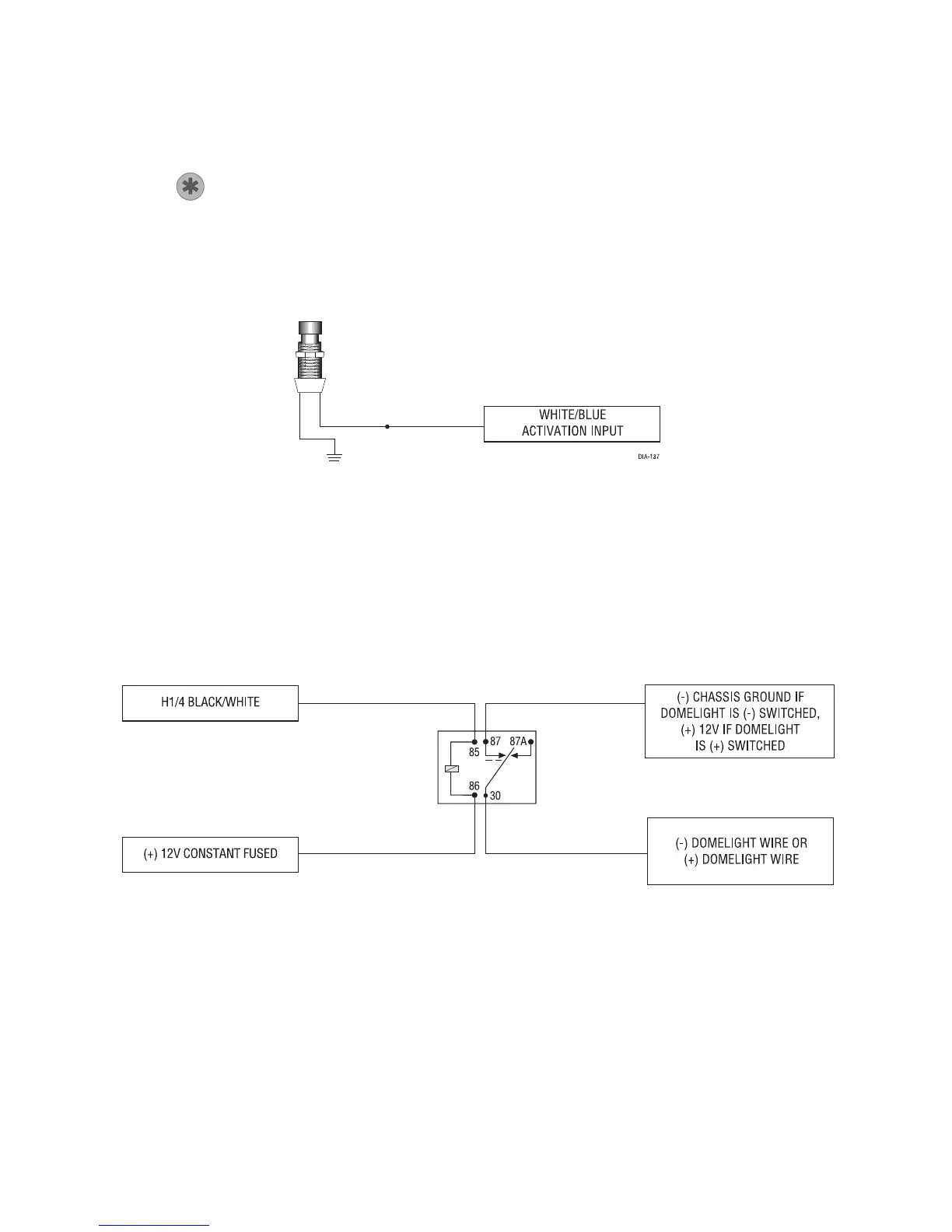

Connect this wire to the optional domelight supervision relay as shown below:
IIMMPPOORRTTAANNTT!!
This output is only intended to drive a relay. It cannot be connected directly to the domelight cir-
cuit because the output cannot support the current draw of one or more light bulbs.
H1/6 BLUE second unlock
This output is used for progressive door unlock. A progressive unlock system unlocks the driver's
door when the unlock (disarm) button is pressed and unlocks the passenger doors if the unlock
(disarm) button is pressed again within 15 seconds after unlocking the driver's door. The BLUE
wire outputs a low current (-) pulse on the second press of the unlock button of the remote. This
negative unlock output is used to unlock the passenger doors.
NNOOTTEE::
The second unlock output feature is not available if the double pulse unlock feature
is turned on.
