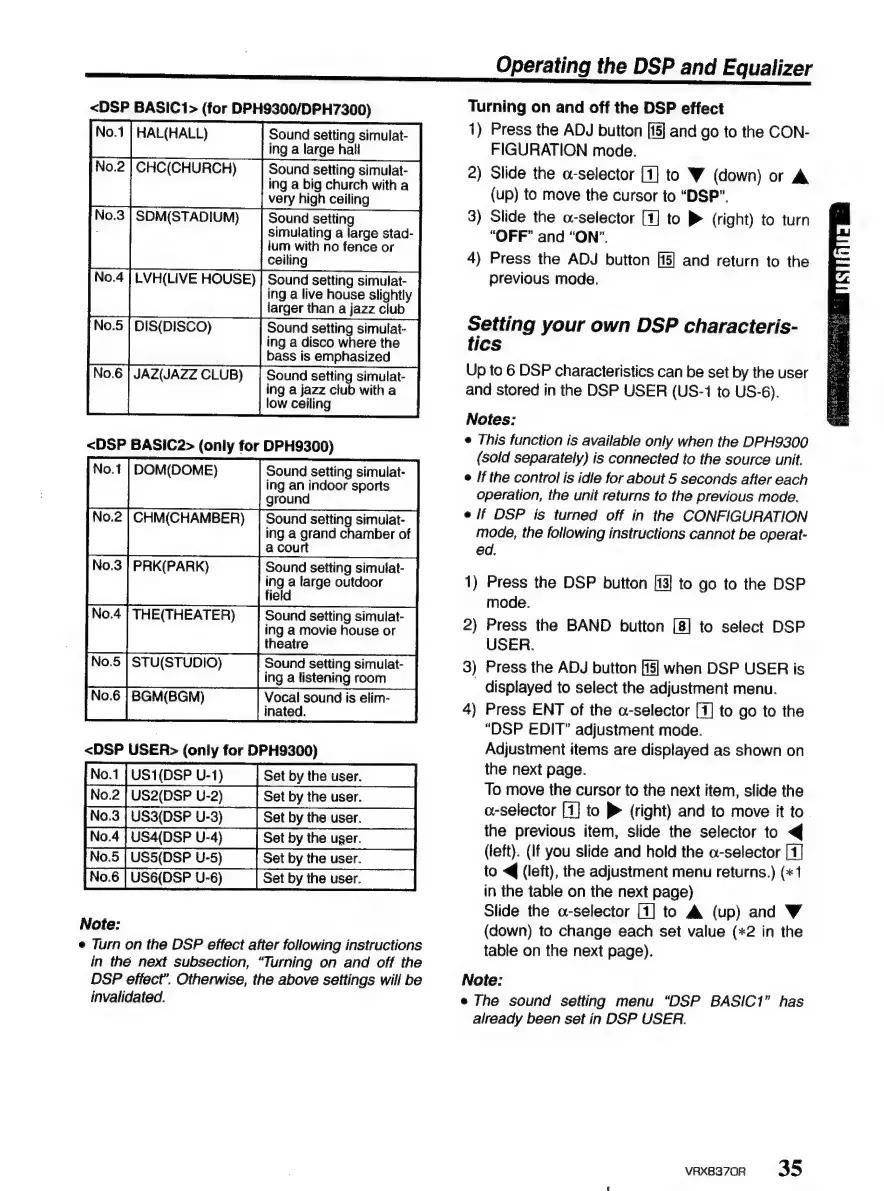

Operating the DSP and Equalizer
<DSP BASIC1> (for DPH9300/DPH7300)
No.1 | HAL(HALL) Sound setting simulat-
ing a large hall
CHC(CHURCH) | Sound setting simulat-
ing a big church with a
very high ceiling
SDM(STADIUM) Sound setting
simulating a large stad-
ium with no fence or
ceiling
LVH(LIVE HOUSE) | Sound setting simulat-
ing a live house slightly
larger than a jazz club
DIS(DISCO) Sound setting simulat-
ing a disco where the
bass is emphasized
a JAZ(JAZZ CLUB)
DOM(DOME)
Sound setting simulat-
ing a jazz club with a
low ceiling
Sound setting simulat-
ing an indoor sports
ground
CHM(CHAMBER) | Sound setting simulat-
ing a grand chamber of
a court
No.3 | PRK(PARK) Sound setting simutat-
ing a large outdoor
field
No.4 | THE(THEATER) Sound setting simulat-
ing a movie house or
theatre
STU(STUDIO) Sound setting simulat-
ing a listening room
BGM(BGM) Vocal sound is elim-
inated.
<DSP USER> (only for DPH9300)
INo.1{US1(DSP U-1) _| Set by the user.
|No.2 | US2(DSP U-2) Set by the user.
|No.3 | US3(DSP U-3) Set by the user.
US4(DSP U-4) Set by the uger.
US5(DSP US)
US6(DSP U-6) Set by the user.
Note:
e Turn on the DSP effect after following instructions
in the next subsection, “Turning on and off the
DSP effect’. Otherwise, the above settings will be
invalidated.
Turning on and off the DSP effect
1) Press the ADJ button [15] and go to the CON-
FIGURATION mode.
2)
Slide
the
a-selector
[1]
to
W
(down)
or
A
(up)
to
move
the
cursor
to
“DSP”.
3)
Slide
the
a-selector
[1]
to
®
(right)
to
turn
“OFF”
and
“ON”.
4) Press the ADJ button [15] and return to the
previous mode.
Setting your own DSP characteris-
tics
Up to 6 DSP characteristics can be set by the user
and stored in the DSP USER (US-1 to US-6).
Notes:
e This function is available only when the DPH9300
(sold separately) is connected to the source unit.
e /f the control is idle for about 5 seconds after each
operation, the unit returns to the previous mode.
e if DSP is turned off in the CONFIGURATION
mode, the following instructions cannot be operat-
ed.
1) Press the DSP button [13] to go to the DSP
mode.
2) Press the BAND button to select DSP
USER.
3) Press the ADJ button [15] when DSP USER is
displayed to select the adjustment menu.
4) Press ENT of the a-selector [4] to go to the
“DSP EDIT” adjustment mode.
Adjustment items are displayed as shown on
the next page.
To move the cursor to the next item, slide the
a-selector [1] to > (right) and to move it to
the previous item, slide the selector to <q
(left). (If you slide and hold the «-selector [1]
to <q (left), the adjustment menu returns.) (+1
in the table on the next page)
Slide the a-selector [1] to A (up) and W
(down) to change each set value (*2 in the
table on the next page).
Note:
e The sound setting menu “DSP BASIC1” has
already been set in DSP USER.
VRX8370R 35
