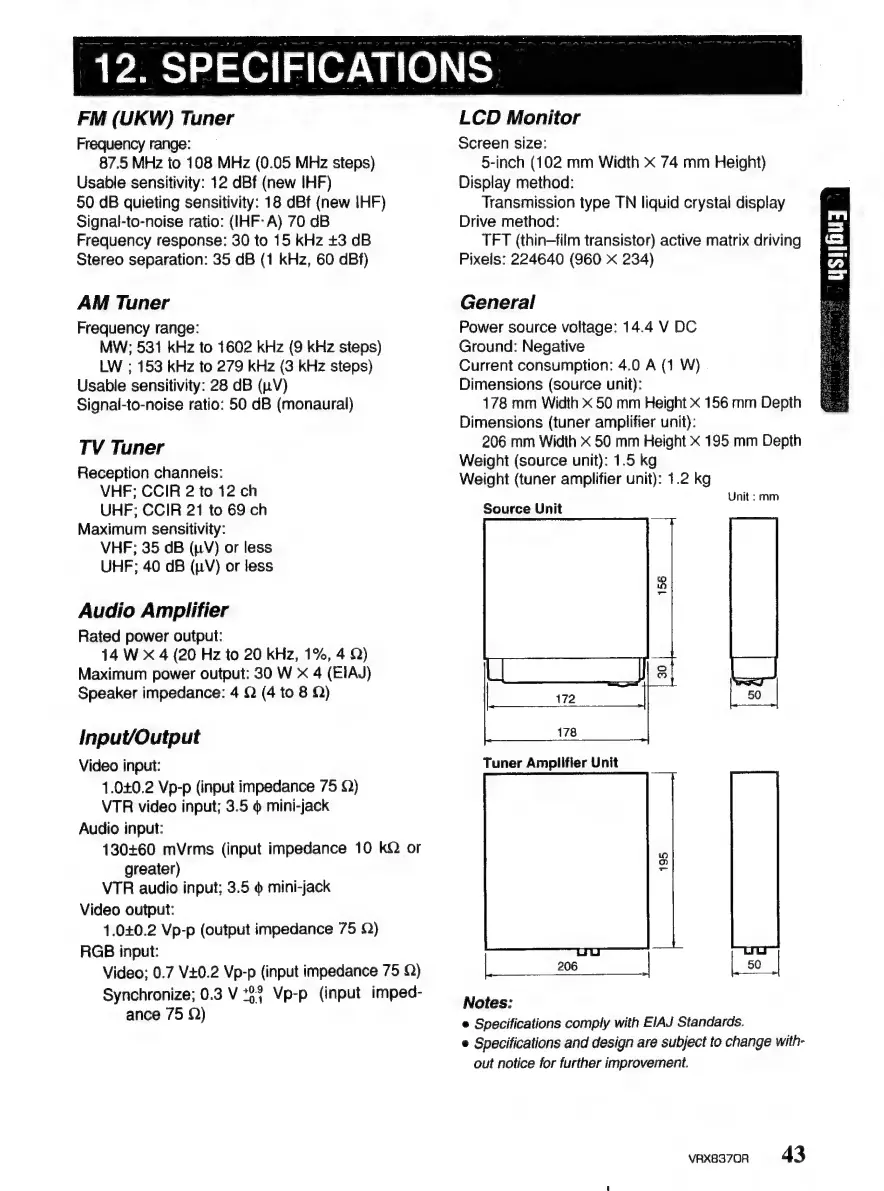

12. SPECIFICATIONS |
FM (UKW) Tuner
Frequency range:
87.5 MHz to 108 MHz (0.05 MHz steps)
Usable sensitivity: 12 dBf (new IHF)
50 dB quieting sensitivity: 18 dBf (new IHF)
Signal-to-noise ratio: (IHF: A) 70 dB
Frequency response: 30 to 15 kHz +3 dB
Stereo separation: 35 dB (1 kHz, 60 dBf)
AM Tuner
Frequency range:
MW; 531 kHz to 1602 kHz (9 kHz steps)
LW ; 153 kHz to 279 kHz (3 kHz steps)
Usabie sensitivity: 28 dB (2 V)
Signal-to-noise ratio: 50 dB (monaural)
TV Tuner
Reception channels:
VHF; CCIR 2 to 12 ch
UHF; CCIR 21 to 69 ch
Maximum sensitivity:
VHF; 35 dB (uV) or less
UHF; 40 dB (uV) or less
Audio Amplifier
Rated power output:
14 W X 4 (20 Hz to 20 kHz, 1%, 4 2)
Maximum power output: 30 W x 4 (EIAJ)
Speaker impedance: 4 Q (4 to 8 Q)
Input/Output
Video input:
1.0+0.2 Vp-p (input impedance 75 Q)
VTR video input; 3.5 mini-jack
Audio input:
130460 mVrms (input impedance 10 kQ or
greater)
VTR audio input; 3.5 @ mini-jack
Video output:
1.040.2 Vp-p (output impedance 75 Q)
RGB input:
Video; 0.7 V+0.2 Vp-p (input impedance 75 Q)
Synchronize; 0.3 V ‘$$ Vp-p (input imped-
ance 75 22)
LCD Monitor
Screen size:
5-inch (102 mm Width < 74 mm Height)
Display method:
Transmission type TN liquid crystal display
Drive method:
TFT (thin-film transistor) active matrix driving
Pixels: 224640 (960 x 234)
General
Power source voltage: 14.4 V DC
Ground: Negative
Current consumption: 4.0 A (1 W)
Dimensions (source unit):
178 mm Width x 50 mm Height X 156 mm Depth
Dimensions (tuner amplifier unit):
206 mm Width x 50 mm Height X 195 mm Depth
Weight (source unit): 1.5 kg
Weight (tuner amplifier unit): 1.2 kg
: Unit : mm
Source Unit
| :
a
172 | 50 |
178
Tuner Amplifier Unit
195
206
;
e Specifications comply with EIAJ Standards.
Specifications and design are subject to change with-
out notice for further improvement.
VRX8370R 43
