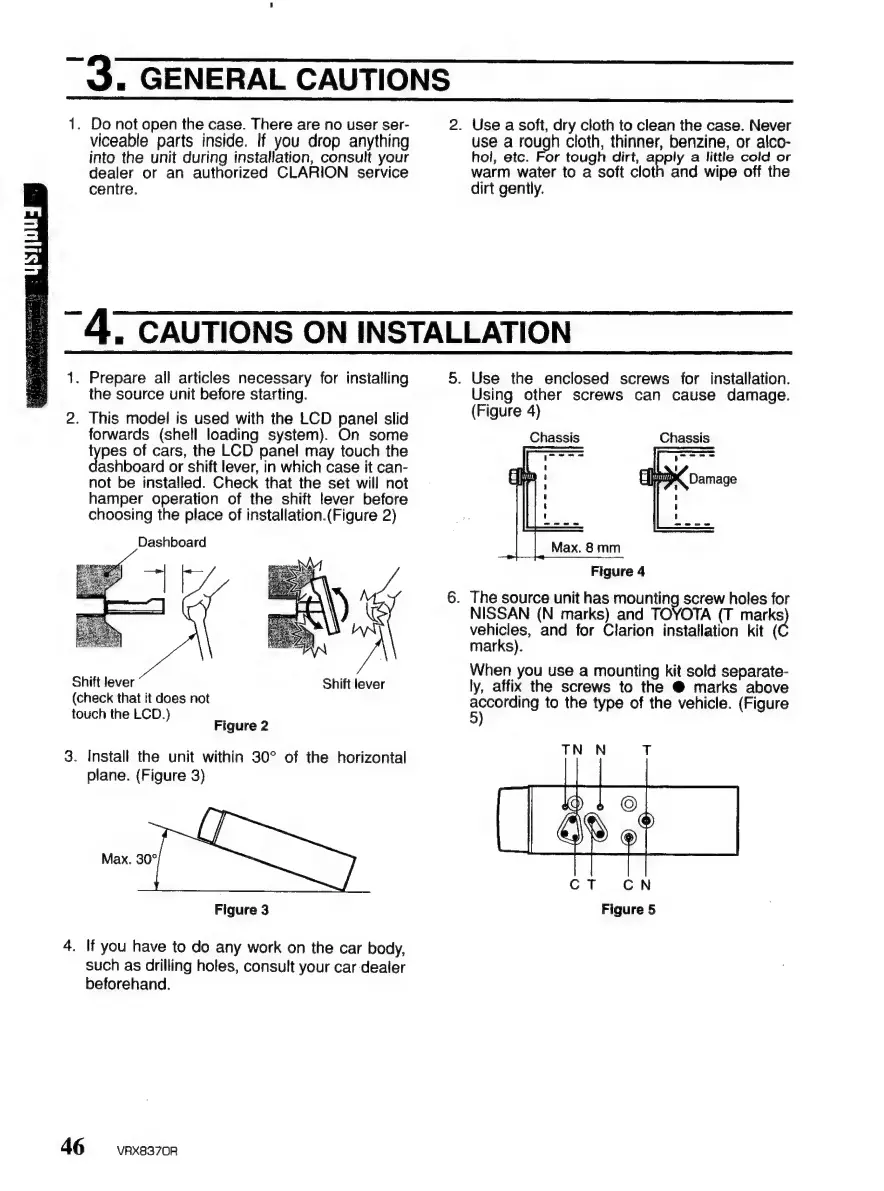

Clarion VRX8370R - Page 46

~ 3. GENERAL CAUTIONS
1. Do not open the case. There are no user ser-
viceable parts inside. If you drop anything
into the unit during installation, consult your
dealer or an authorized CLARION service
centre.
1. Prepare all articles necessary for installing
the source unit before starting.
2. This model is used with the LCD panel slid
forwards (shell loading system). On some
types of cars, the LCD panel may touch the
ashboard or shift lever, in which case it can-
not be installed. Check that the set will not
hamper operation of the shift lever before
choosing the place of installation.(Figure 2)
Dashboard
Shift lever
(check that it does not
touch the LCD.)
Shift lever
Figure 2
3. Install the unit within 30° of the horizontal
plane. (Figure 3)
Max. 30°
Figure 3
4. If you have to do any work on the car body,
such as drilling holes, consult your car dealer
beforehand.
46 VRX8370R
2. Use a soft, dry cloth to clean the case. Never
use a rough cloth, thinner, benzine, or alco-
hol, etc. For tough dirt, apply a little cold or
warm water to a soft cloth and wipe off the
dirt gently.
~ 47 CAUTIONS ON INSTALLATION
5. Use the enclosed screws for installation.
Using other screws can cause damage.
(Figure 4)
Chassis
Chassis
Figure 4
6. The source unit has eee holes for
NISSAN (N marks) and TOYOTA (T ae
vehicles, and for Clarion installation kit (
marks).
When you use a mounting kit sold separate-
ly, affix the screws to the @ marks above
re to the type of the vehicle. (Figure
CT CN
Figure 5
