Clarion VX603AU User Manual

FM Tuner
Frequency range: 87.5-108.0MHz
Usable sensitivity: 13dBf
Frequency response: 30Hz-15kHz
Stereo separation: 30dB(1kHz)
Signal/noise ratio: >55dB
AM Tuner
Frequency range: 531-1629kHz
Usable sensitivity (S/N=20dB): 30dBμ
Disc Player
System: Disc digital audio system
Frequency response: 20Hz-20kHz
Signal/noise ratio: >93dB
Total harmonic distortion: Less than 0.1% (1kHz)
Channel separation: >60dB
Video signal output: NTSC
Video output level: 1±0.2V
MP3/WMA mode
MP3 sampling rate: 8 kHz to 48 kHz
MP3 bit rate: 8 kbps to 320 kbps / VBR
WMA bit rate: 8 kbps to 320 kbps
USB
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Playable video format:
MP4(.mp4): MPEG4part2(Simple)
MPG(.mpg):MPEG2, MPEG1
AVI(.avi): MPEG4part2(Simple)
DivX(.divx): Divx3.11/4.0/5.0/6.0
Resolution : 720x576
Audio format :AAC,MP3,PCM,AC3
SD
Memory cards:
Standard SD/SDHC, micro SD/SDHC
File system: FAT, FAT16, FAT32
Playable audio format:
MP3(.mp3): MPEG 1/2/Audio Layer-3
WMA(.wma): Ver 7/8/9.1/9.2
Playable video format:
:)4pm.(4PM,)v4m.(V4M
MPEG4part2(Simple),MPEG4 AVC/
H.264(Baseline@2.1)
3GP(.3gp): MPEG4part2(Simple)
Resolution : 480x272
Audio format :AAC,AMR,MP3,WMA,WAV
Bluetooth

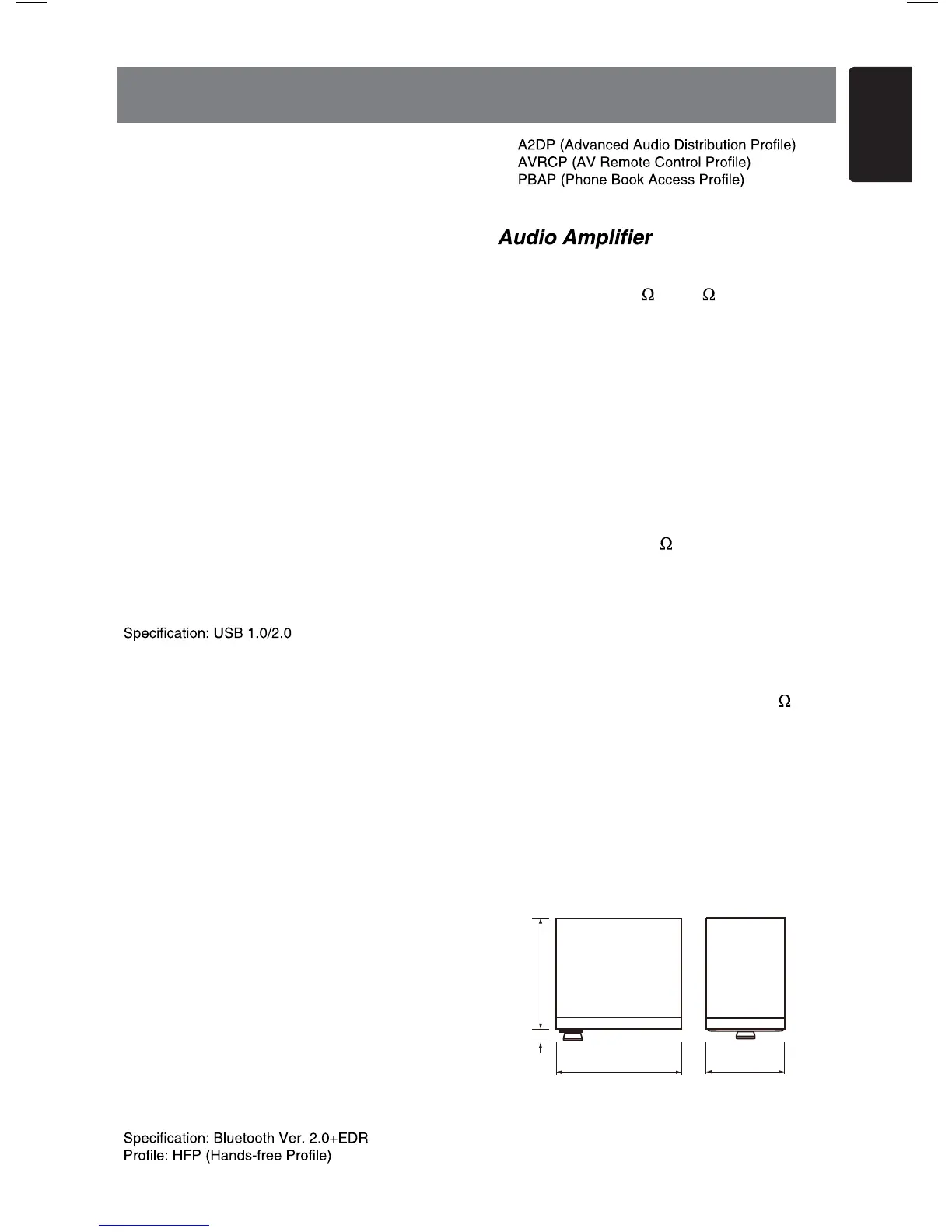

17. SPECIFICATIONS
Send/Receive Sensitivity: Class 2
Maximum power output:
200W (50W x 4)
Speaker impedance: 4
(4 to 8 allowable)
6.2 Inch TFT LCD
Display resolution (dot): 800RGB (H) x 480(V)
Active area (mm): 137.52(H) x 77.232 (V)
Screen size (inch): 6.2 (Diagonal)
Dot pitch (mm): 0.1719(H) x 0.1609(V)
Input
Audio input sensitivity:
High: 320mV (at 2V output)
Mid: 650mV (at 2V output)
Low: 1.3V (at 2V output)
(input impedance 10 k
or greater)
AUX-in Audio level : ≤2V
Video level : NTSC/PAL 1Vp-p@75Ω
General
Power supply voltage:
14.4VDC (10.8 to 15.6V allowable),
negative ground
Pre-Amp output voltage:
V0.4 (CD play mode: 1kHz, 0dB, 10k
load,
volume max.)
Fuse: 15A
Dimensions of the Main Unit:
7”(Width) × 4”(Height) × 6.4”(Depth)
[178(W) × 100(H) × 163(D)mm]
Weight of the Main Unit: 4.19lb (1.90kg)
Dimensions of the Remote Control unit:
1.9”(Width) × 0.5”(Height) × 5.5”(Depth)
]mm)D(931 × )H(21 × )W(94[
Weight of the Remote Control Unit:
1.94oz (55g) (including battery)
Note:
• Specifications and design are subject to change
without notice for further improvement.
178mm
100mm
13mm
163mm
7"
4"
6.4"
0.5"
