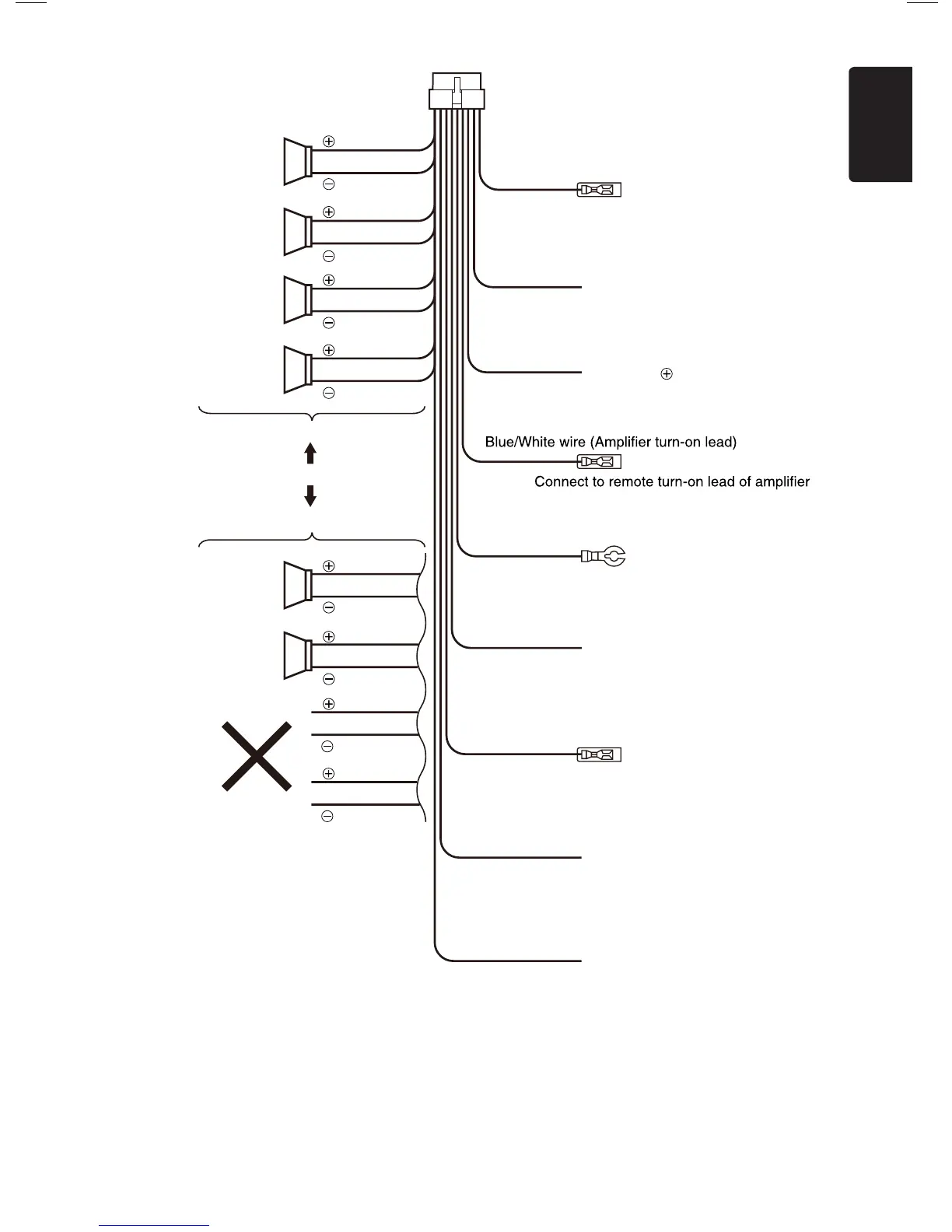

18-Pin Connector Extension Lead

(attached to the source unit)

Yellow wire (Memory back-up lead)

Brown wire (Phone mute lead)

Red wire (Power lead)

Black wire (Ground lead)

Orange/White wire (Illumination lead)

Blue wire (Auto antenna lead)

Fresh Green wire (Park Brake / Hand Brake)

Purple/White wire (Reverse)

Connect to vehicle chassis ground

Connect it to the car power supply terminal

for illumination

Connect it to the car power supply terminal

for antenna

*Connect it to the car park brake terminal

for parking

*Legal requirement. See page 2

Connect it to the car power supply terminal

for reverse

Connect directly to battery

Connect to mobile phone mute lead.

Accessory 12V

Front Right

Gray

White

Purple

Green

Gray/Black

White/Black

Purple/Black

Green/Black

4-Speaker system

2-Speaker system

Rear Right

Rear Left

Not used.

Insulate each wire

Front Left

English

VX603AU
