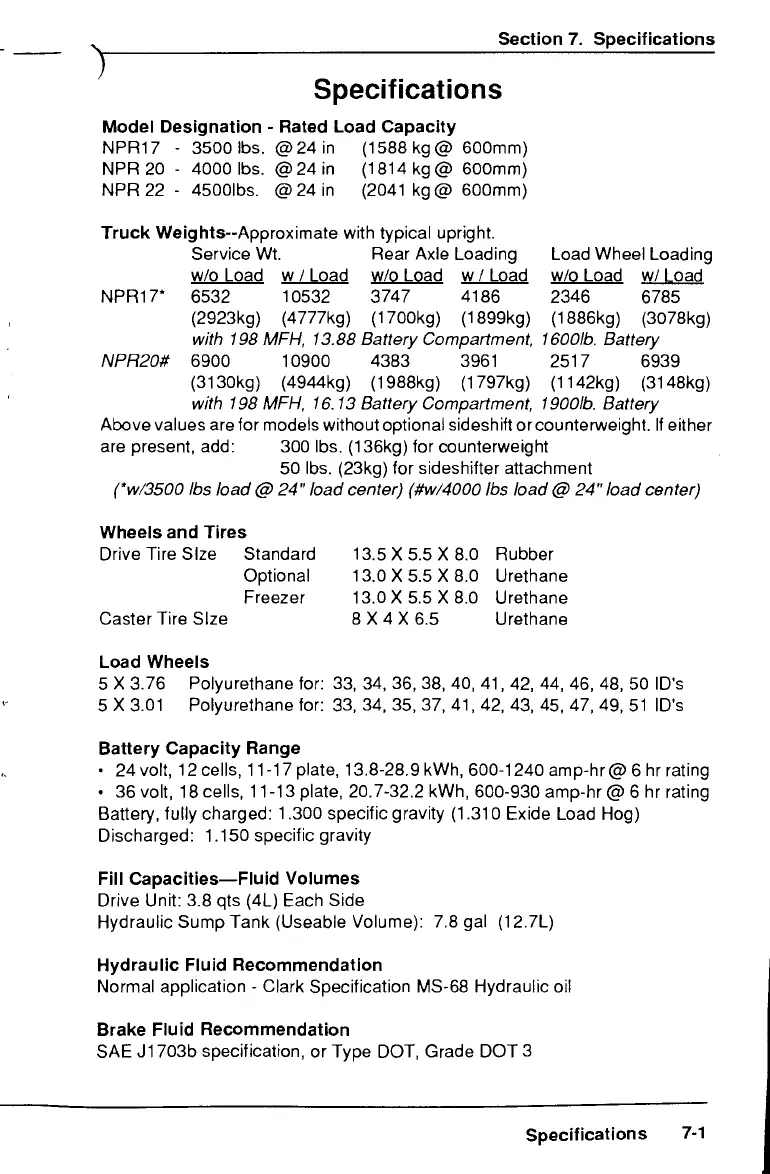

Section
7.
Specifications
Specifications
Model Designation
-
Rated Load Capacity
NPR17
-
3500
Ibs.
@
24 in
(1588
kg
@
600mm)
NPR20
-
4000
Ibs.
@24in
(1814kg@
600mm)
NPR22
-
4500lbs.
@24in
(2041
kg@
600mm)
Truck
Weights-Approximate
with typical
upright.
Service
Wt.
Rear Axle Loading Load Wheel Loading
w/o
Load
w /
Load
w/o
Load
w /
Load
w/o
Load
w/
Load
NPR17*
6532 10532
3747
4186
2346
6785
(2923kg) (4777kg) (1700kg) (1899kg) (1886kg) (3078kg)
with
198MFH,
13.88 Battery Compartment, 1600lb. Battery
NPR20# 6900 10900 4383 3961 2517 6939
(3130kg)
(4944kg) (1988kg) (1797kg) (1142kg) (3148kg)
with
198
MFH,
16.13
Battery Compartment, 1900lb. Battery
Above
values
are for
models without optional
sideshift
or
counterweight.
If
either
are
present, add:
300
Ibs.
(136kg)
for
counterweight
50
Ibs. (23kg)
for
sideshifter attachment
('w/3500
Ibs
load
@ 24"
load center)
(#w/4000
Ibs
load
@ 24"
load center)
Wheels
and
Tires
Drive Tire
Size
Standard
Optional
Freezer
Caster
Tire
Size
13.5X5.5X8.0
Rubber
13.0X5.5X8.0 Urethane
13.0X5.5X8.0
Urethane
8 X 4 X 6.5
Urethane
Load Wheels
5 X
3.76 Polyurethane for:
33, 34, 36, 38, 40,
41,
42, 44, 46, 48, 50
ID'S
5 X
3.01 Polyurethane for:
33, 34, 35, 37,
41,
42, 43, 45, 47, 49, 51
ID'S
Battery Capacity Range
•
24
volt,
12
cells,
11-17
plate,
13.8-28.9
kWh,
600-1240
amp-hr
@ 6 hr
rating
• 36
volt,
18
cells,
11-13
plate, 20.7-32.2 kWh, 600-930 amp-hr
@ 6 hr
rating
Battery, fully charged:
1.300
specific gravity
(1.310
Exide Load Hog)
Discharged:
1.150
specific
gravity
Fill
Capacities—Fluid
Volumes
Drive
Unit:
3.8 qts
(4L) Each Side
Hydraulic
Sump
Tank
(Useable Volume):
7.8 gal
(12.7L)
Hydraulic Fluid Recommendation
Normal application
-
Clark Specification MS-68 Hydraulic
oil
Brake Fluid Recommendation
SAE
J1703b
specification,
or
Type DOT, Grade
DOT 3
Specifications
7-1
