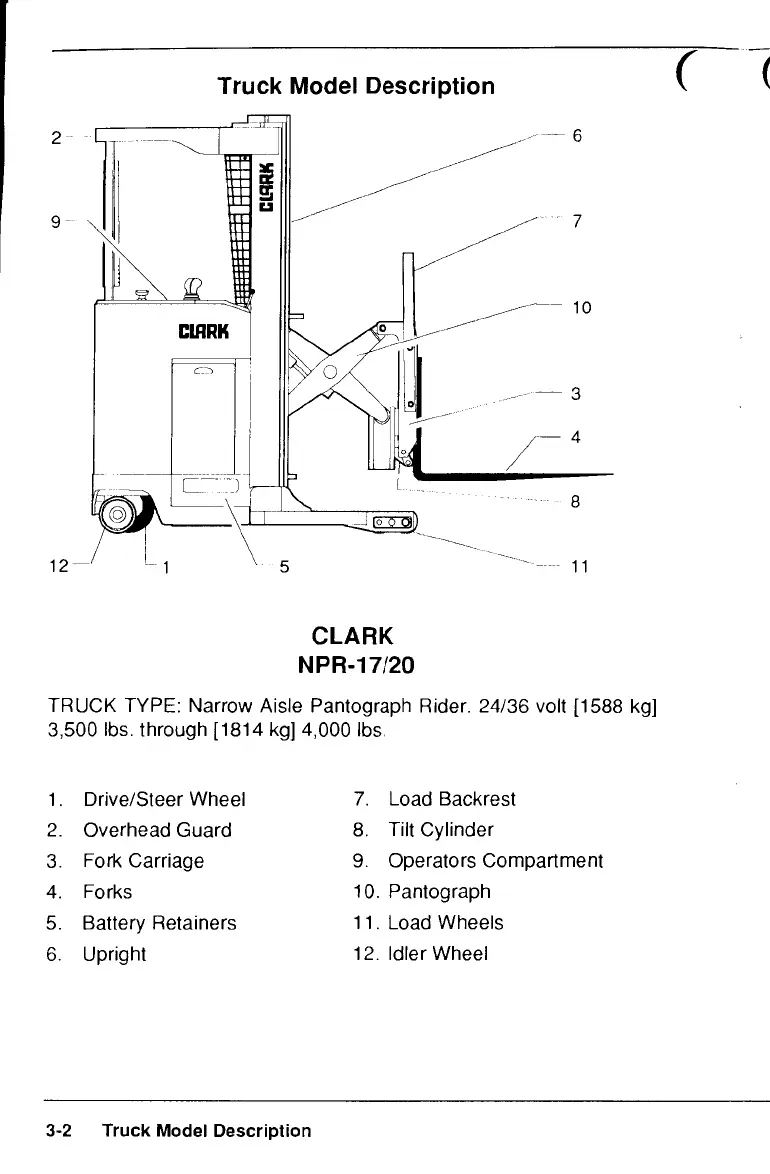

Truck Model Description
r i
9-
12 —
11
CLARK
NPR-17/20
TRUCK TYPE: Narrow Aisle Pantograph Rider. 24/36 volt [1588 kg]
3,500 Ibs. through [1814 kg] 4,000 Ibs.
1. Drive/Steer Wheel
2. Overhead Guard
3. Fork Carriage
4. Forks
5. Battery Retainers
6. Upright
7. Load Backrest
8. Tilt Cylinder
9. Operators Compartment
10. Pantograph
11. Load Wheels
12. Idler Wheel
