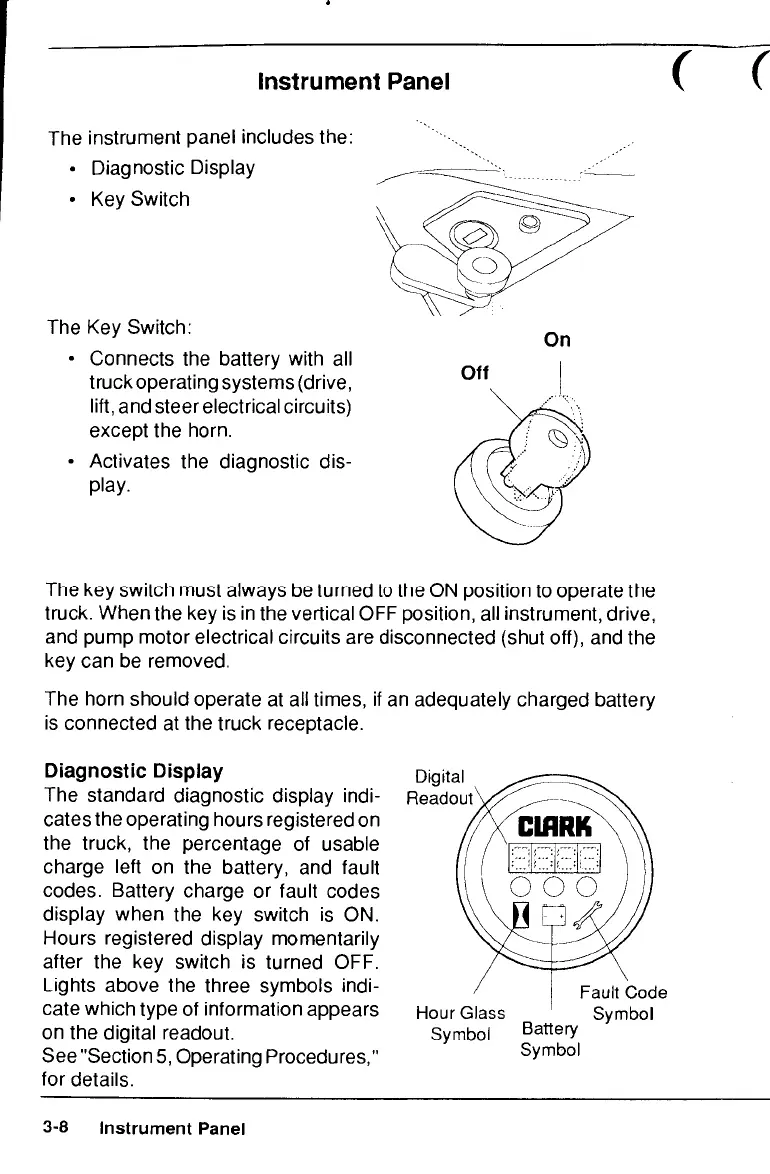

Instrument Panel
The
instrument
panel
includes the:
•
Diagnostic Display
• Key
Switch
The
Key
Switch:
•
Connects
the
battery with
all
truck operating systems (drive,
lift,
and
steer electrical circuits)
except
the
horn.
•
Activates
the
diagnostic dis-
play.
The key
switch must always
be
turned
to the ON
position
to
operate
the
truck.
When
the key is in the
vertical
OFF
position,
all
instrument, drive,
and
pump
motor electrical circuits
are
disconnected (shut off),
and the
key
can be
removed.
The
horn
should
operate
at all
times,
if an
adequately charged battery
is
connected
at the
truck receptacle.
Diagnostic Display
The
standard
diagnostic
display
indi-
cates
the
operating hours registered
on
the
truck,
the
percentage
of
usable
charge
left
on the
battery,
and
fault
codes. Battery charge
or
fault codes
display when
the key
switch
is ON.
Hours registered display momentarily
after
the key
switch
is
turned OFF.
Lights above
the
three symbols indi-
cate which type
of
information appears
on
the
digital
readout.
See
"Section
5,
Operating
Procedures,"
for
details.
Digital
Readout
Hour
Glass
Symbol
Battery
Symbol
Fault Code
Symbol
3-8
Instrument Panel
