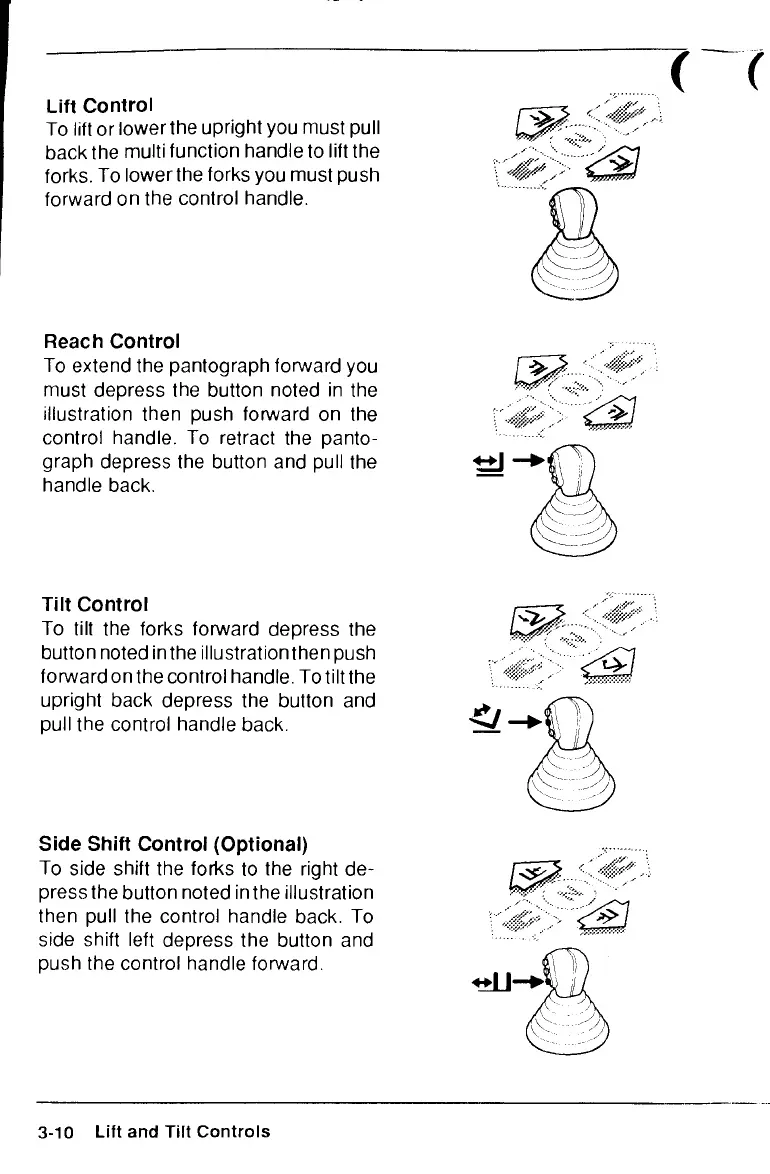

Clark NPR17 - Page 50

Lift Control
To lift or lower the upright you must pull
back the multi function handle to lift the
forks. To lower the forks you must push
forward on the control handle.
Reach Control
To extend the pantograph forward you
must depress the button noted in the
illustration then push forward on the
control handle. To retract the panto-
graph depress the button and pull the
handle back.
(
Tilt Control
To tilt the forks forward depress the
button noted intheillustrationthen push
forward on the control handle. To tilt the
upright back depress the button and
pull the control handle back.
Side Shift Control (Optional)
To side shift the forks to the right de-
press the button noted in the illustration
then pull the control handle back. To
side shift left depress the button and
push the control handle forward.
3-10 Lift and Tilt Controls
