Clarke
®
American Sanders Operator's Manual (EN) - EZ-8 Sander HDTR Form No. 70399B - 11 -
Sander Adjustment Procedures
DANGER: Electrocution could occur if mainte-
nance and repairs are performed on a
unit that is not properly disconnected
from the power source. Disconnect
the power supply before attempting
any maintenance or service.
DANGER: Moving parts of this machine can
cause serious injury and/or dam-
age. Keep hands, feet and loose
clothing away from all moving parts
of the sander.
The following information provides details on how to
adjust different features/controls of the sander.

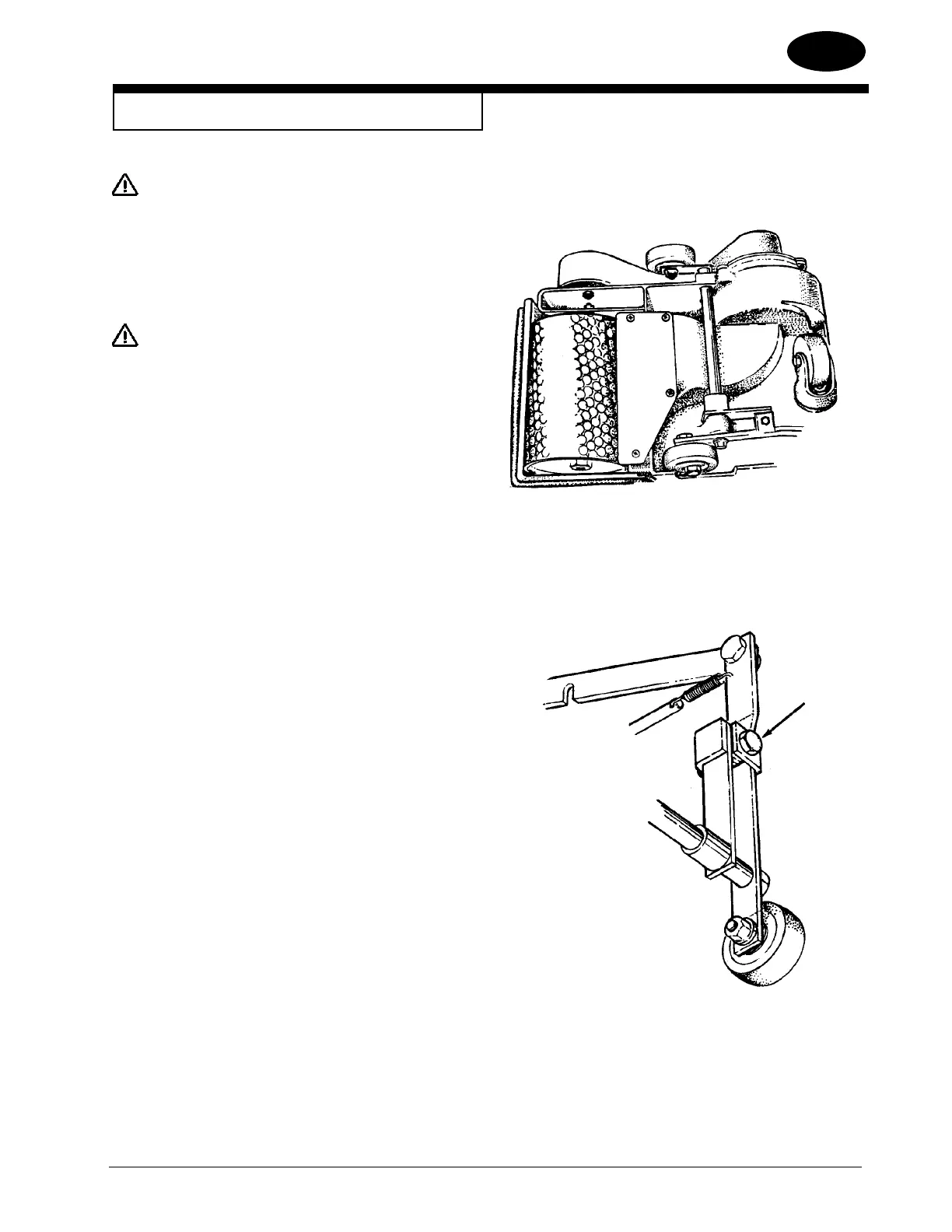

Dust Shoe
To adjust the dust shoe follow this procedure:
1. Disconnect machine from power supply.
2. Loosen the four screws fastening the dust shoe to
the chassis.
3. Adjust the dust shoe towards the drum to improve
recovery of fi ne particles.
4. Adjust the dust shoe away from the drum to im-
prove recovery of coarse particles.
5. Align the dust shoe with the drum and tighten
screws. See fi gure # 12.
Leveling
To adjust the machine leveling follow this procedure:
1. Locate the leveling screw. See fi gure # 13.
2. Tighten the screw (compress the leveling spring) to
sand heavier on drive belt side of sanding drum.
3. Loosen the leveling screw (relax the leveling
spring) to sand heavier on the side opposite the
drive belts.
Figure # 12
Figure # 13
