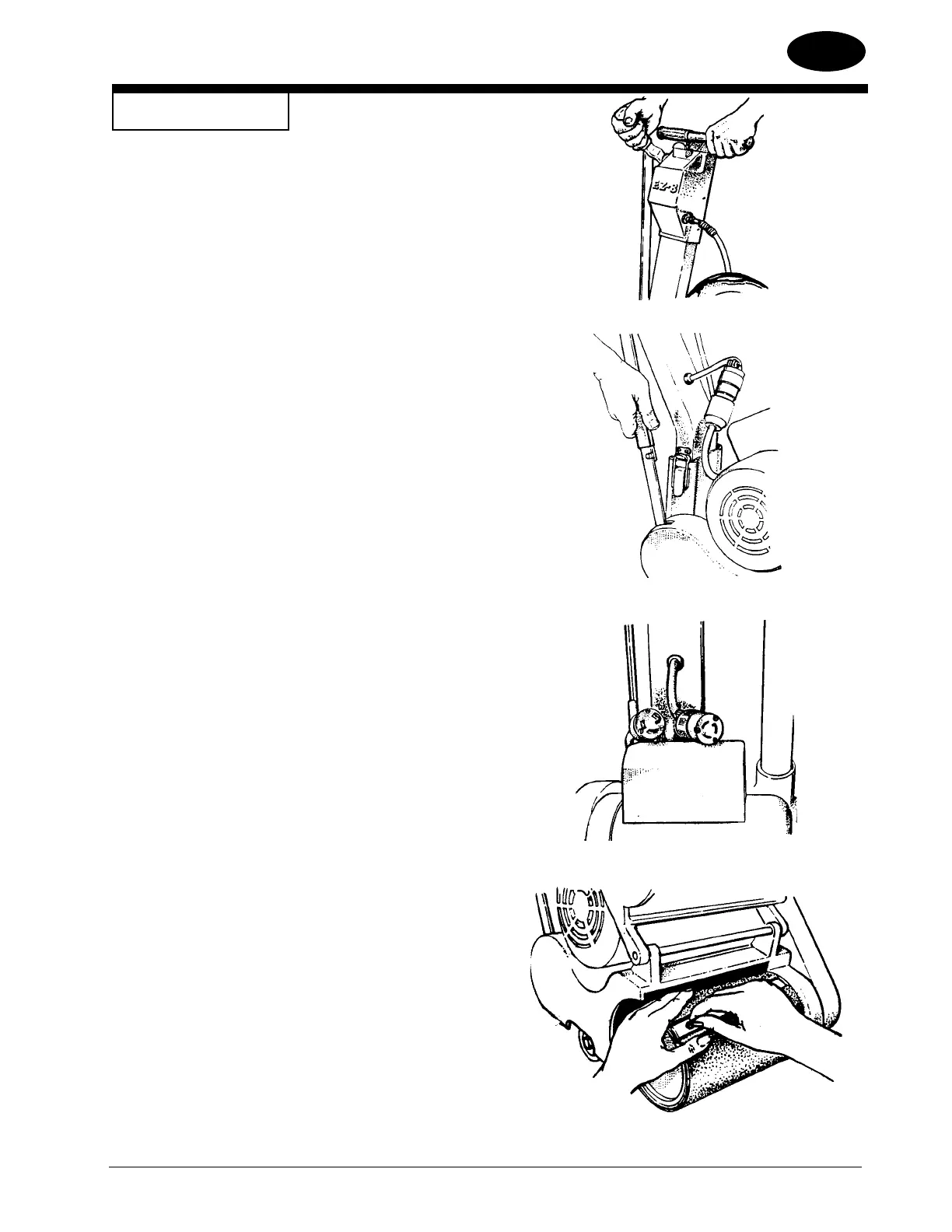

Machine Set-up
To set up the machine follow this procedure:
1. Familiarize yourself with the machine. Read all
danger, warning, and caution statements as well
as the Operator’s Manual. If operator is unable to
read English, have the manual explained before
operating.
2. Install handle and fasten latches. See fi gure # 6.
3. Insert control link into notch and slide collar to pin.
Raise sanding drum with control lever. See
fi gure # 5 & # 6.
4. Install dust tube.
5. Connect the handle pigtail to the motor cord. Align
ground pin, insert and twist. See fi gure # 7.
6. To install abrasive on sanding drum equipped with
paper clamp: loosen screws to paper clamp with a
coin.Do not remove screws or clamp from the
sanding drum. Insert one edge of abrasive under
paper clamp. Rotate sanding drum to wrap
abrasive around drum. Insert other edge of
abrasive under paper clamp. Center abrasive
and take up any slack in the abrasive. Tighten
screws on paper clamp.
Close drum cover. See fi gure # 8.
To install abrasive on sanding drum equipped for
Sleeve abrasive: slide abrasive over drum, center
abrasive, and close drum cover.
