MAINTENANCE AND CARE
The service life and the maximum operation safety of the machine are assured by proper and timely maintenance and care.
The following table is a routine maintenance guide for the machine. The time intervals of maintenance are determined to a large extent by the
working conditions of the machine. These time intervals should be formulated by the person responsible for the maintenance.
WARNING !
Only after the main power is disconnected should these procedures be performed. Prior to proceeding with any of the maintenance
procedures, please study carefully the related safety sections.
All maintenance should be done by qualifi ed personnel or authorized Clarke service centers.
This manual only relates the simplest and the most common maintenance procedures.
For any maintenance procedures other than those stated in this table of planned maintenance, please contact your local Clarke distributor.
SCHEDULED MAINTENANCE TABLE
After each use Weekly Every six months Annually
Clean Squeegee
Clean Brush/Pad holder
Clean water tank and fl oat fi lter, inspect tank
gaskets
Inspect and change the squeegee blades
Clean solution fi lter
Clean Vacuum motor fi lter
Inspect tightness of nuts and bolts
（1）
Check brush motor carbon brushes
（2）
Check vacuum motor carbon brushes
（2）
(1) = After the fi rst 9 working hours.
(2) = This maintenance procedure must be performed by an authorized Service Center.

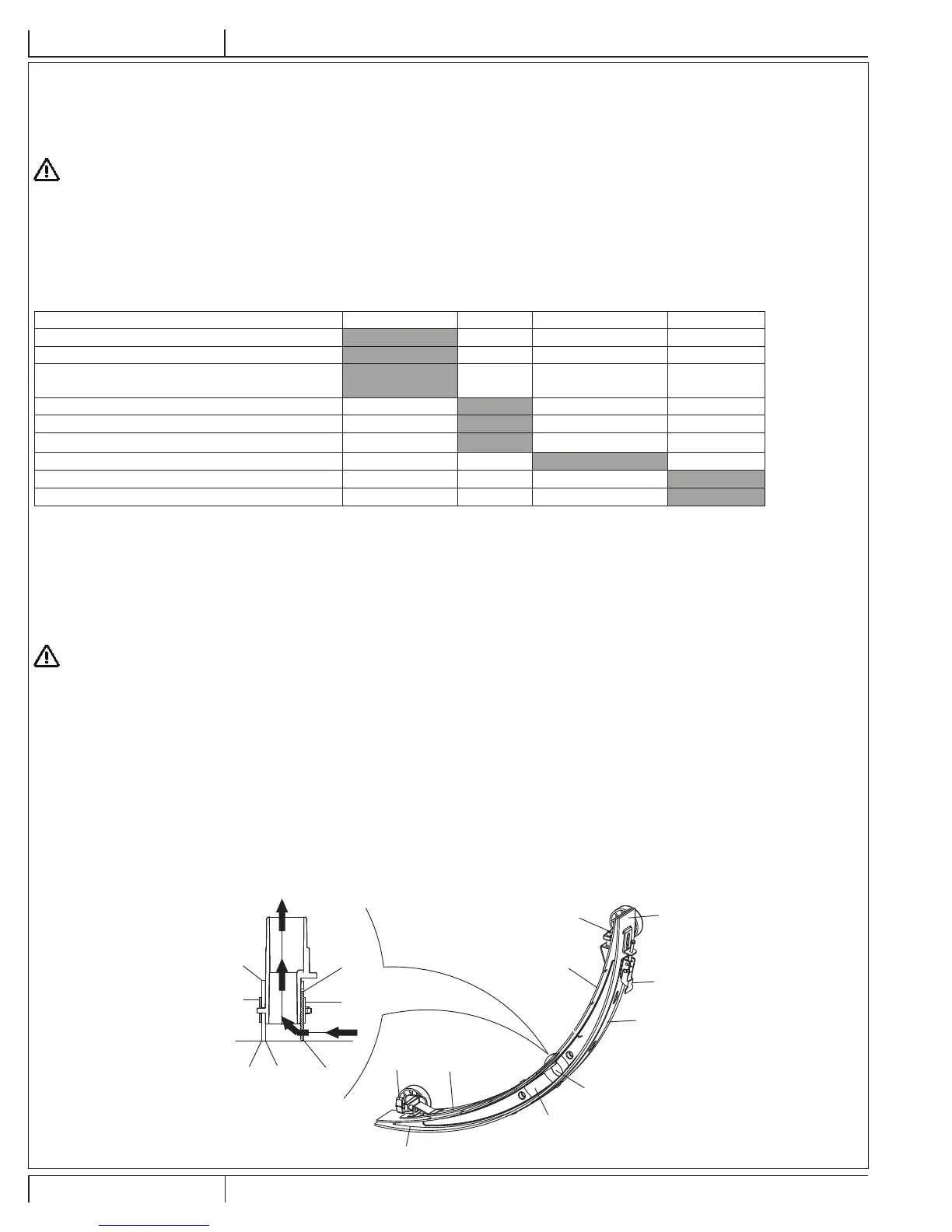

SQUEEGEE CLEANING
NOTE
In order to maintain the optimal squeegee performance, the squeegee must be kept clean, and the squeegee blades must remain in
good condition.
CAUTION !
When cleaning the squeegee, it is recommended to put on protective gloves as the squeegee may contain sharp debris.
Move the machine to a fl at and smooth surface.1.
Press the power switch (38) to the “O” position to turn off the machine.2.
Unscrew the squeegee knobs (16); remove the vacuum hose from the squeegee assembly & remove squeegee.3.
Use the squeegee lift handle (14) to lift the squeegee mount bracket.4.
Using a damp towel, clean the squeegee (Figure 10). Clean in particular the groove (A, Figure10) and the dirt and fragments on the vacuum 5.
tube. Check if the front squeegee blade (C) and the rear squeegee blade (D) are intact, and if there are broken edges and cracks. Replace
them if necessary (refer to the steps in the following section).
Re-install the squeegee in the reverse order of the above6.
FIGURE 10
