WATER TANK AND FLOAT FILTER MESH CLEANING
Move the machine to a dedicated draining area.1.
Press the power switch (38) to the position “O” to turn off the machine.2.
Open recovery tank lid (A, Figure 11), and remove the fl oat device (36) from inside the tank.3.
Use clean water to rinse the recovery tank lid (A), the tank (B and C), and the fl oat fi lter support frame (E). Drain all the water from the water 4.
tank.
If necessary, following the symbols “Open” and “Close” as shown in Figure 11, open the bottom lid (F) of the fl oat fi lter and clean the fl oat (D), 5.
fl oat fi lter support frame (E), and the fi lter sponge (I). After cleaning, re-attach the fl oat onto the support frame (E), and then align the mark
groove (L) of the bottom lid (F) of the fl oat fi lter with the mark groove (L) of the fl oat fi lter support frame (E). Turn the bottom lid (F) of the fl oat
fi lter tight, and re-attach the fi lter sponge (I) onto the support frame (E), and then onto the vacuum tube (M).
Inspect the seal / gasket (G) of the recovery tank lid. If necessary, the recovery tank seal / gasket (G) may be taken out from the groove (H) 6.
and changed. When installing the new seal / gasket as shown in Figure 11 below, install the connector to the middle section of the rear part.
NOTE
The seal / gasket (G) of the recovery tank allows the tank to create a vacuum. It must be completely sealed to be able to effectively
suck the wastewater from the fl oor.
Check if the receiving surface of the sealing strip (G) is intact and seals adequately.7.
Close recovery tank lid (A).8.
0
.
-
+
*
$
%
&
,
(
'
)
/

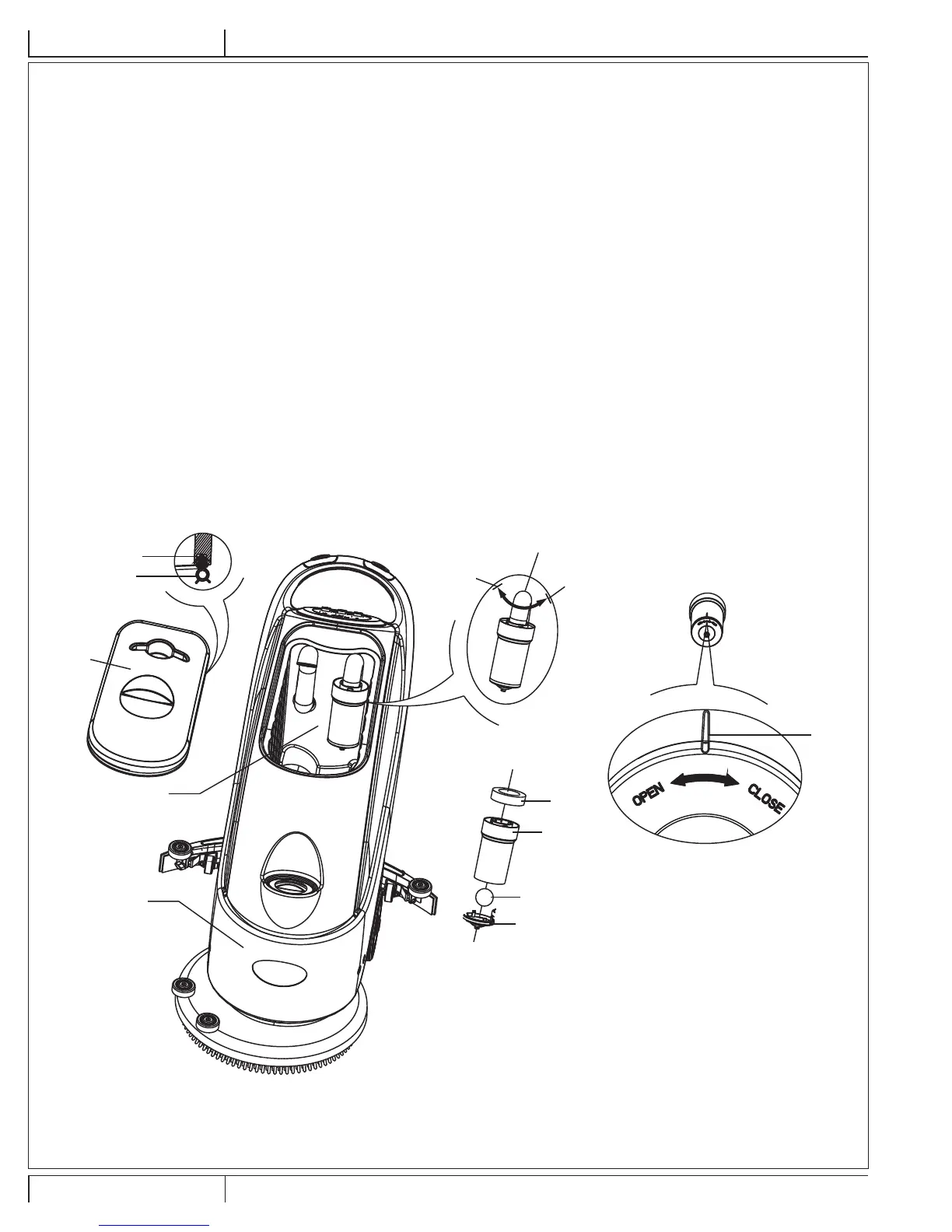

FIGURE 11
