27
Step 7
.
Step 8
.

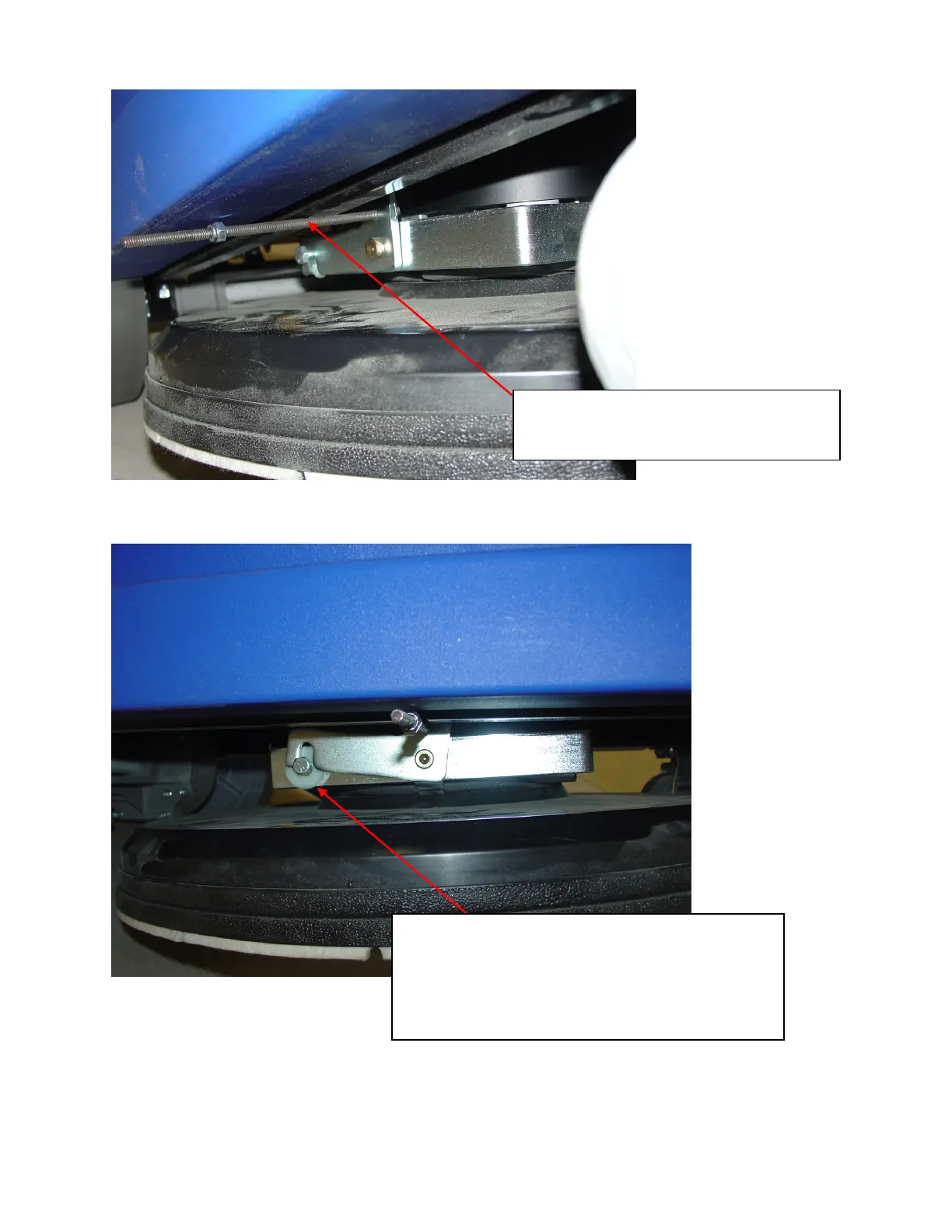

Better view of bolts in the P
ad Motor
Lift Assy.
. There is a Nylon Washer on each sid
e of the
Pad Motor Ass
y
. as show
n above. This washer
is needed to reduce vibra
tion and noise and must
be left in place as shown
when reinstalling the
Pad Motor Ass
y
.
26
28
Table of Contents
Troubleshooting Guide
1
Table of Contents
2
Important Notes
3
Main Electrical System
4
I Drive Traverse Controller
4
Main Electrical System
6
40135A Battery / Low Voltage / Delay Module
6
Battery Charger 41036A Manual
8
Battery Charger 41036A Programming
9
Battery Charger 41036A Troubleshooting Guide
10
Battery Charger 41036A Flow Chart
14
Tru-Charge
15
Battery Gauge
18
Fusion 20B Electrical Schematic
19
Fusion 20T Electrical Schematic
20
Pad Assist Adjustment
21
Fusion Burnisher Pad Motor Assembly Removal
24
Note Page
30
