Links have to be made over IP before the trunk/direct can be used.
9.3.3 Concert Users
The IVC-32 interface will allow Concert users to establish audio links with users on the
Eclipse matrix via the Concert IV-R server.
This server will provide a link over IP between Concert users and the Eclipse matrix.
Concert users cannot connect directly to the IVC-32 interface card.
Concert users communicate with Eclipse users using a soft-panel, rather than the main
Concert Client application.
This soft panel is configured using the EHX configuration software and the configuration
information is uploaded to the Concert user’s soft-panel on connection to the matrix.

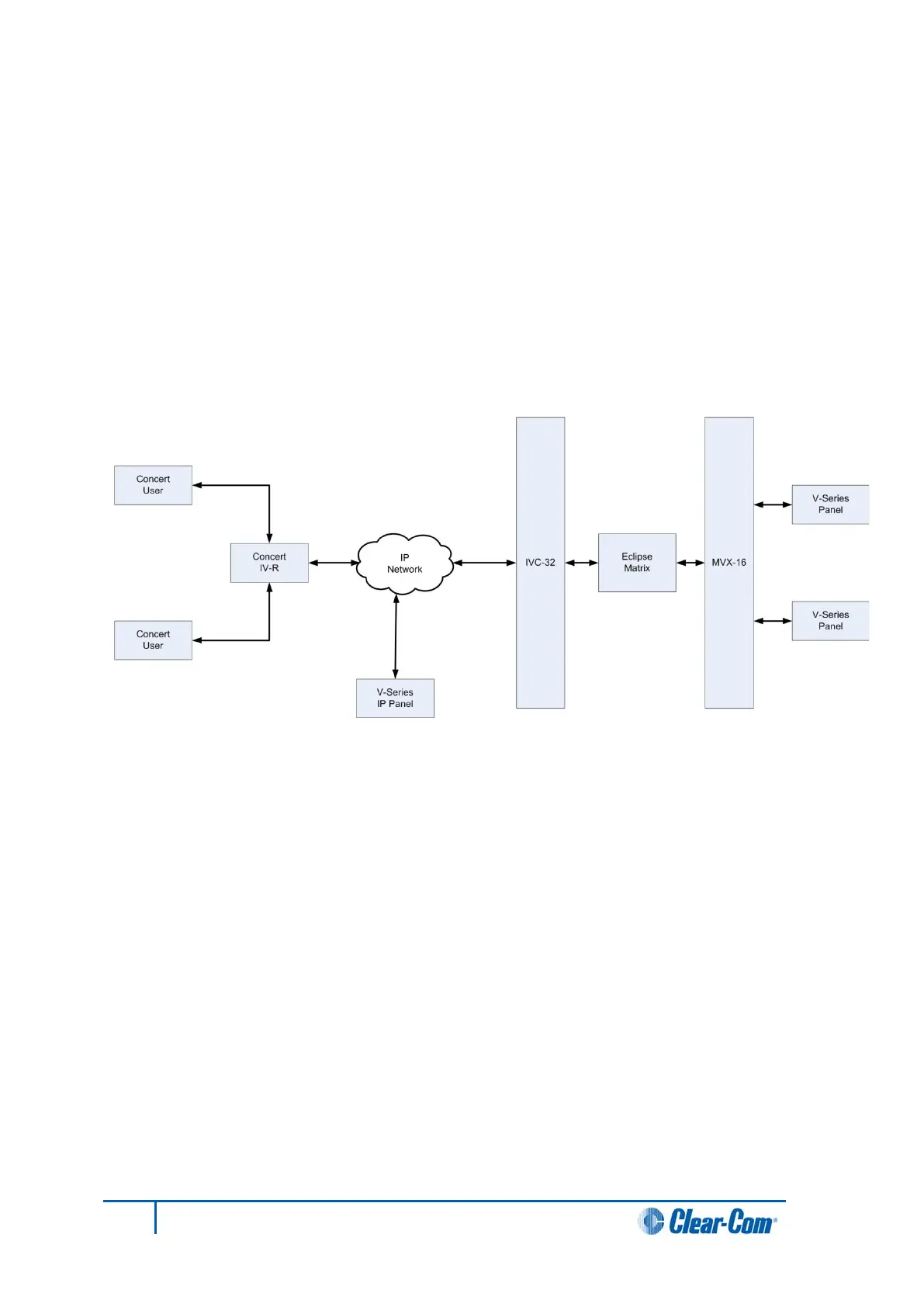

Figure 45: IP communication using an IVC-32 interface card
115
