Clear-Com EclipseHX Series User Manual

User Guide| Eclipse HX-Median
Page 57

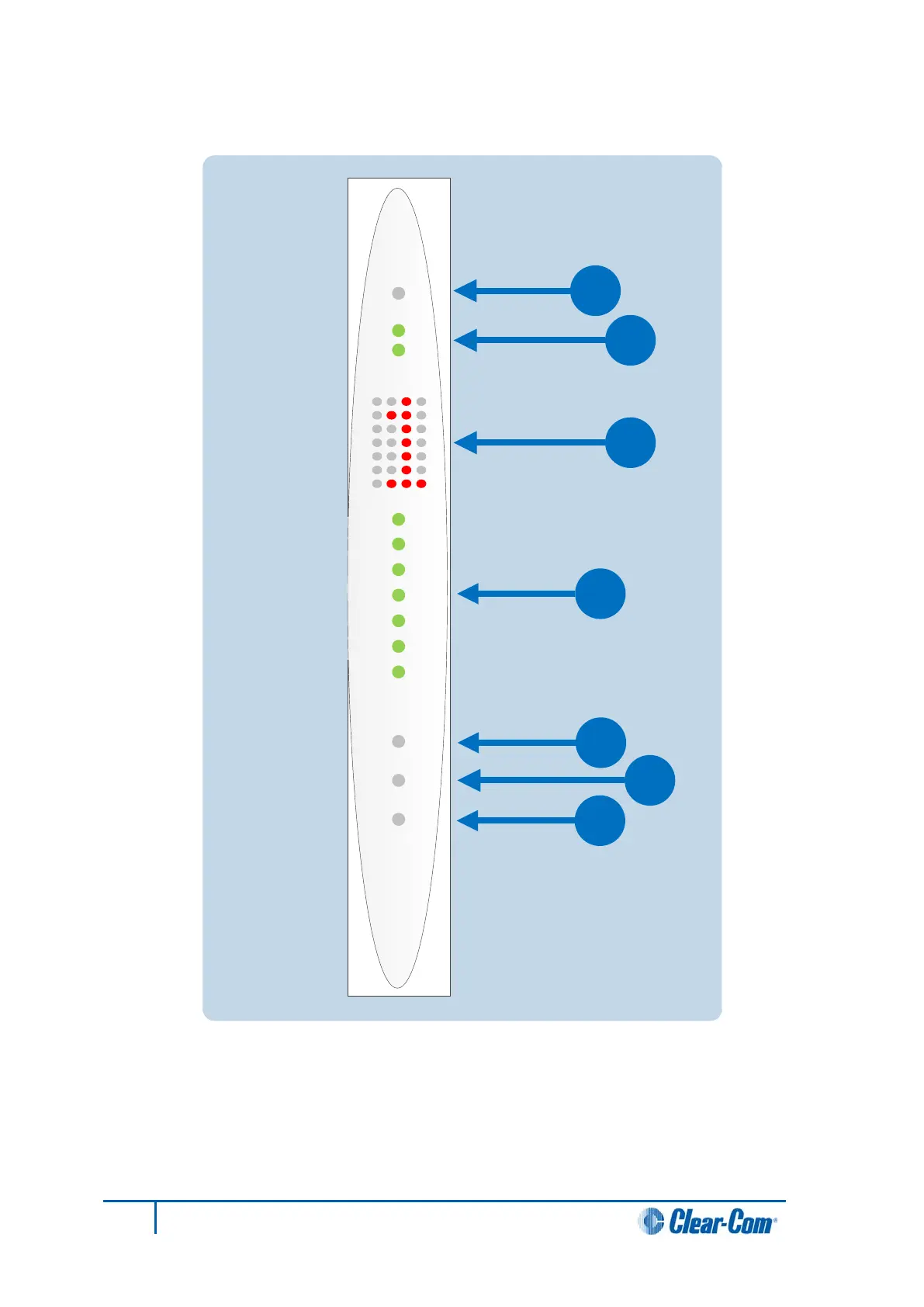

The “interprocessor communication” (IPC) light only operates
when there are two CPU cards in the matrix. When lit, the light
indicates that the two CPU cards are exchanging information.
Master Light
An Eclipse HX-Median system can have two CPU cards, although
the system will operate with only one. If the primary card
becomes unavailable for any reason, the second card can serve as
backup while the primary card is repaired or replaced.
The “master” light illuminates on whichever CPU card is currently
serving as master. If there is a backup CPU card in the matrix, its
“master” light will not illuminate if the primary card is acting as
master.
LAN A Light
When a local area network (LAN) is connected to the matrix’s LAN
A port, the CPU card’s LAN A LED lights to indicate a connection to
the Eclipse Configuration Software LAN A port.
LAN B Light
When a second local area network is connected to the matrix’s
“LAN B” port, the CPU card’s “LAN B” LED lights to indicate a
connection to the Eclipse Configuration Software (EHX) LAN B
port.
Sync Light
When multiple Eclipse HX matrices are connected together the
“sync” light illuminates to indicate that the matrices are connected
and synchronized.
SI Light
The SI light flashes to indicate communications activity.
E
Configuration [ CONFIG ] button
The CPU card can hold four complete system configurations in its
operational memory. When the CONFIG button is pressed the
number of the currently active configuration (either 1, 2, 3, or 4)
appears in the dot-matrix display.
Each time the button is subsequently pressed the next
configuration number in the series appears in the dot-matrix
display. The numbers cycle forward until all of the choices have
been displayed, then start again at 1.
When a non-active configuration’s number appears in the display,
it flashes to indicate its non-active status. When an active
configuration’s number (either 1, 2, 3, or 4) appears in the
display, it illuminates solidly (without flashing) to indicate that it is
the active configuration.
To select one of the four configurations from the CPU card:
1) On the front of the CPU card, repeatedly press the
CONFIG button until the number of the desired
configuration (1,2,3, or 4) is shown by the dot matrix
display.
