4.6.2 Single-pair digital
Single-pair digital wiring is accomplished with double-shielded 24 AWG conductor CAT-6E
enhanced STP cable.
Pair 1 transmits and receives multiplexed digital and analog between the matrix and the
panel.
Ensure that the Select switch on the rear of the panel is in the correct position for the
intended use.

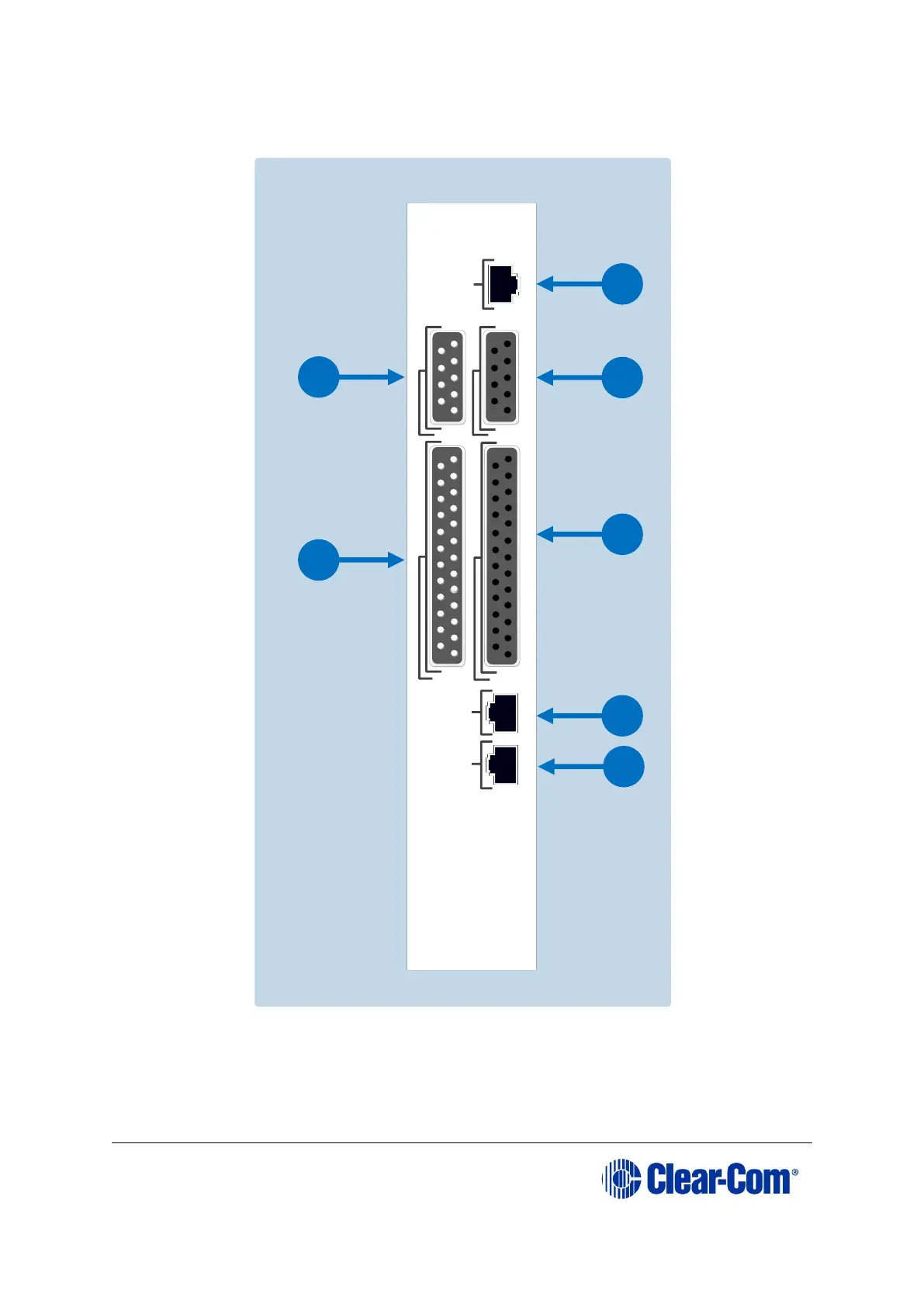

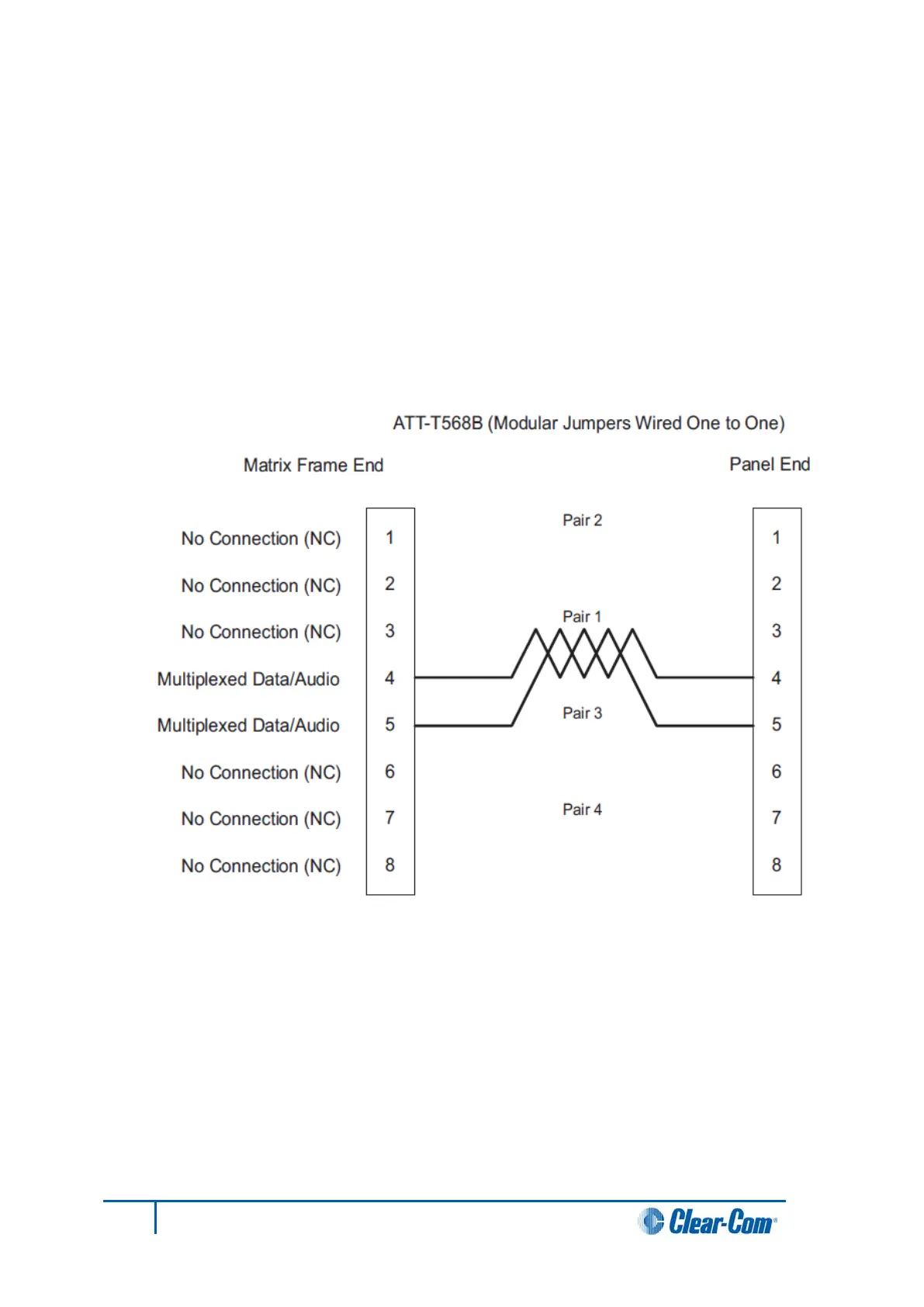

Figure 11: Wiring the matrix to a digital panel using RJ-45
Important note:
The above wiring diagram refers to DIG-2 and is shown as an example only (DIG-2 panels
are not compatible with the Eclipse HX-Median.
41
Eclipse HX-Median User Guide
