User Guide| Eclipse HX-Median
Page 63

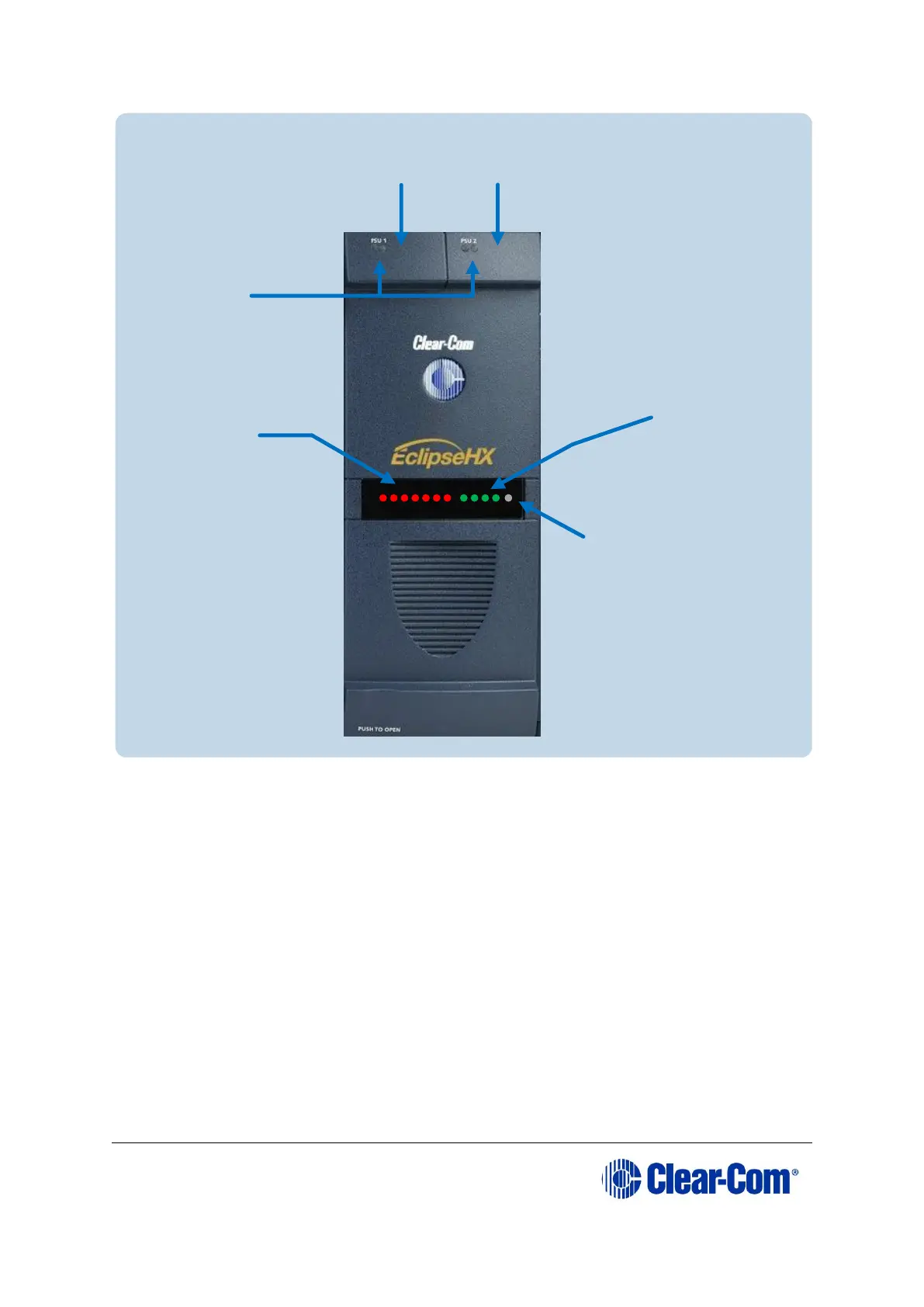

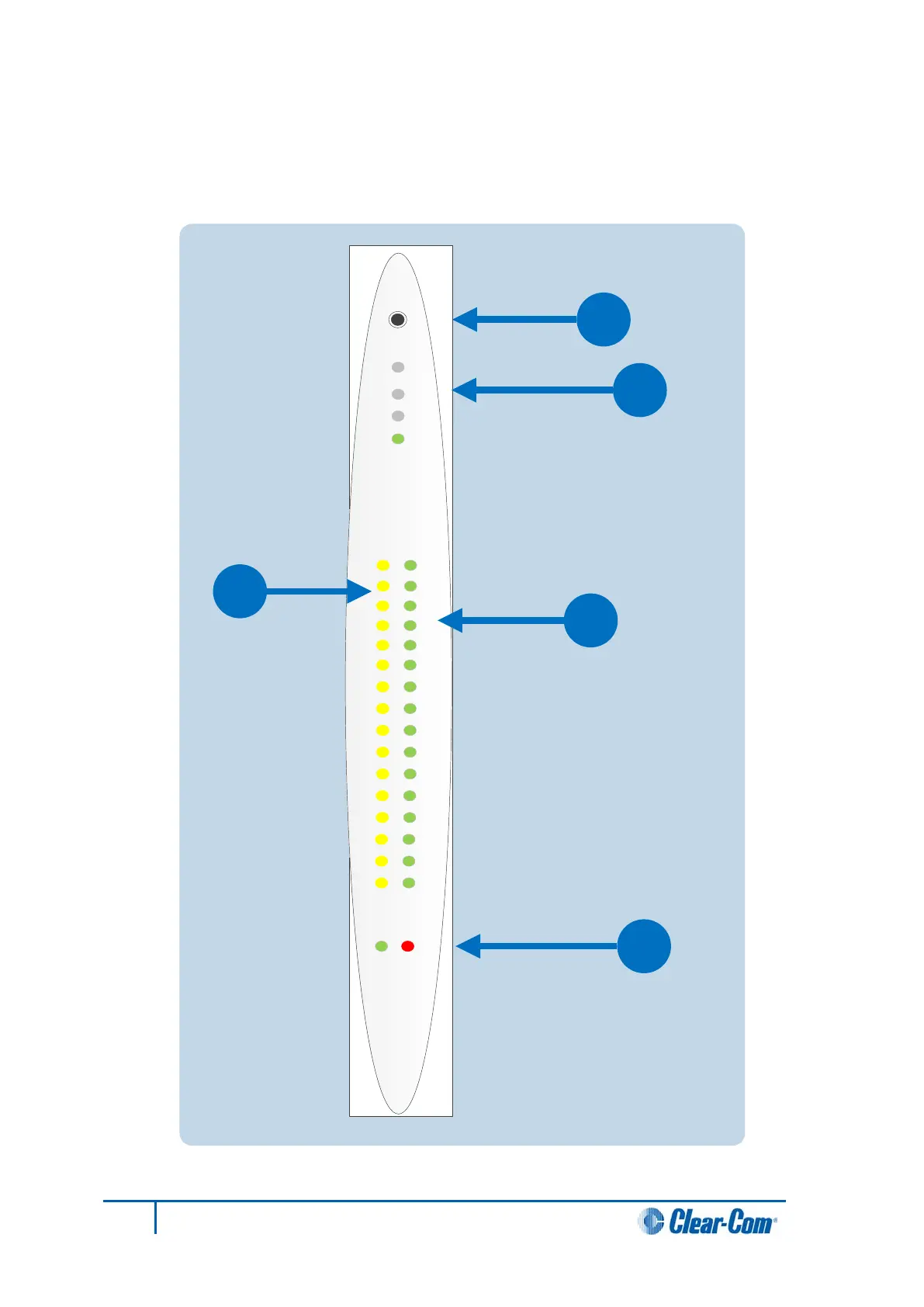

Figure 5-3: Power supplies: Front panel lights and controls
The front panel alarm lights, power supply lights, and reset button are shown in
Figure 24.
An alarm source triggers the red main alarm light and also one of the additional
six red alarm lights, allowing the system operator to identify or correct alarm
conditions before they affect the operation of the matrix.
Each of the four green power supply lights stays on continuously to show that
the power supplies are receiving sufficient AC current. When one of these lights
switches off, the power supplies must be replaced or repaired.
Under normal operating conditions, the red front-panel alarm lights stay off,
while the green power supply lights stay on continuously.
Note: The XP type power supplies (part 740101Z) may need to be adjusted if E-QUE,
E-FIB,
IVC-32 or LMC-64 interface cards are installed. For more information, see the
Eclipse HX Upgrade Guide.
Euro Cassette
Power Supply 1
Euro Cassette
Power Supply 2
Euro Cassette
Alarm lights
Alarm reset
button
Power supply lights
(green when lit):
+12 V light
+5 V light
+3.3 V light
-12 V light
Alarm lights
(red when lit):
Main alarm light
External alarm light
Temp alarm light
Fan-fail alarm light
PSU1 fail light
PSU2 fail light
Fan-on alarm light
