4) Configure EHX settings for the E-MADI64 cards. Standard EHX settings
(including VOX and In-use tally) are applicable to all E-MADI64
channels.
Note: Card Properties permits sample rate selection when synching to
video signals. It is only used when not using the Word Clock
Source Sync (see below).
Card Properties always defaults to the E-MADI64 standard for the number of
channels:
Table 16: E-MADI 64 channel modes
5) Apply the changes to the frame with a reset.
6.4.1 Connecting a Word Clock source
If you connect the Word Clock source to the Clock Input connector on the rear

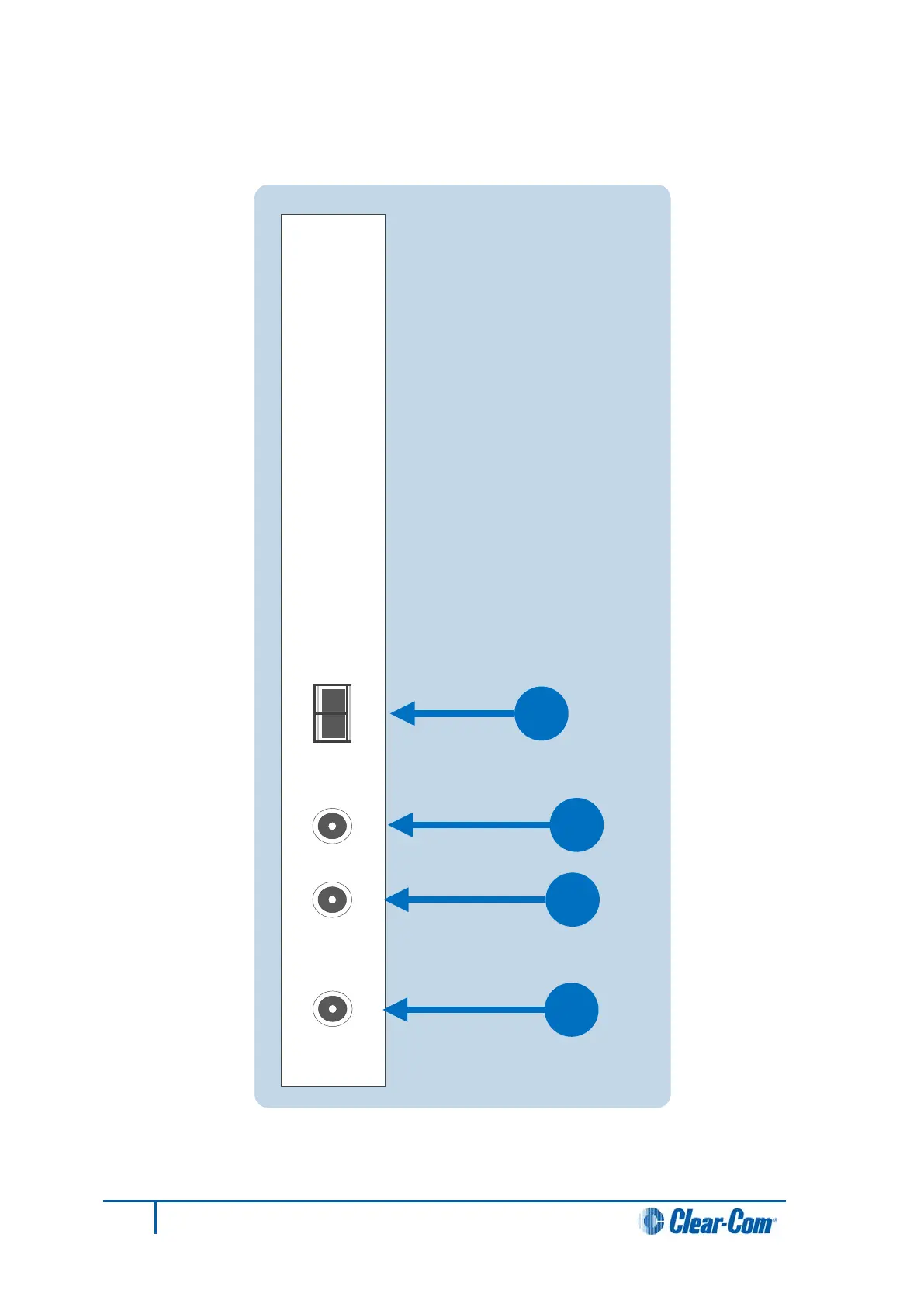

card (see Table 15 above):
The WRD LED on the front of the E-MADI64 card is lit solid green,
indicating that the word clock has been detected and locked onto.
The number of configured ports and the detected sample rate (as
provided by the word clock) is indicated by flashing green LEDs (1:1 at
0.5Hz) on the front of the E-MADI64 card.
The Error LED on the E-MADI64 card is lit solid red.
6.4.2 Connecting a video source
If you connect a video source to the Clock Input connector on the rear card
(see Table 15 above):
The VID LED on the front of the E-MADI64 card is lit solid green,
indicating that the word clock has been detected and locked onto.
The number of configured ports and the sample rate (configured in EHX)
is indicated by flashing green LEDs (1:1 at 0.5Hz) on the front of the E-
MADI64 card.
