Clevo C4505 - Upgrading the Optical (CD;DVD) Device

Upgrading The Computer
Upgrading the Optical (CD/DVD) Device 6 - 7
6
Upgrading the Optical (CD/DVD) Device
1. Turn off the computer, and turn it over and remove the battery.
2. Locate the component bay cover and remove screws
- .
3. Carefully (a fan and cable are attached to the under side of the cover) lift up
the bay cover.
4. Carefully disconnect the fan cable , and remove the cover
.

Fan Cable & Cover
Make sure you recon-
nect the fan cable
before screwing down
the bay cover. Note the
information on replac-
ing the RAM & CPU
bay cover in “Cover
Pins” on page 6 - 11.

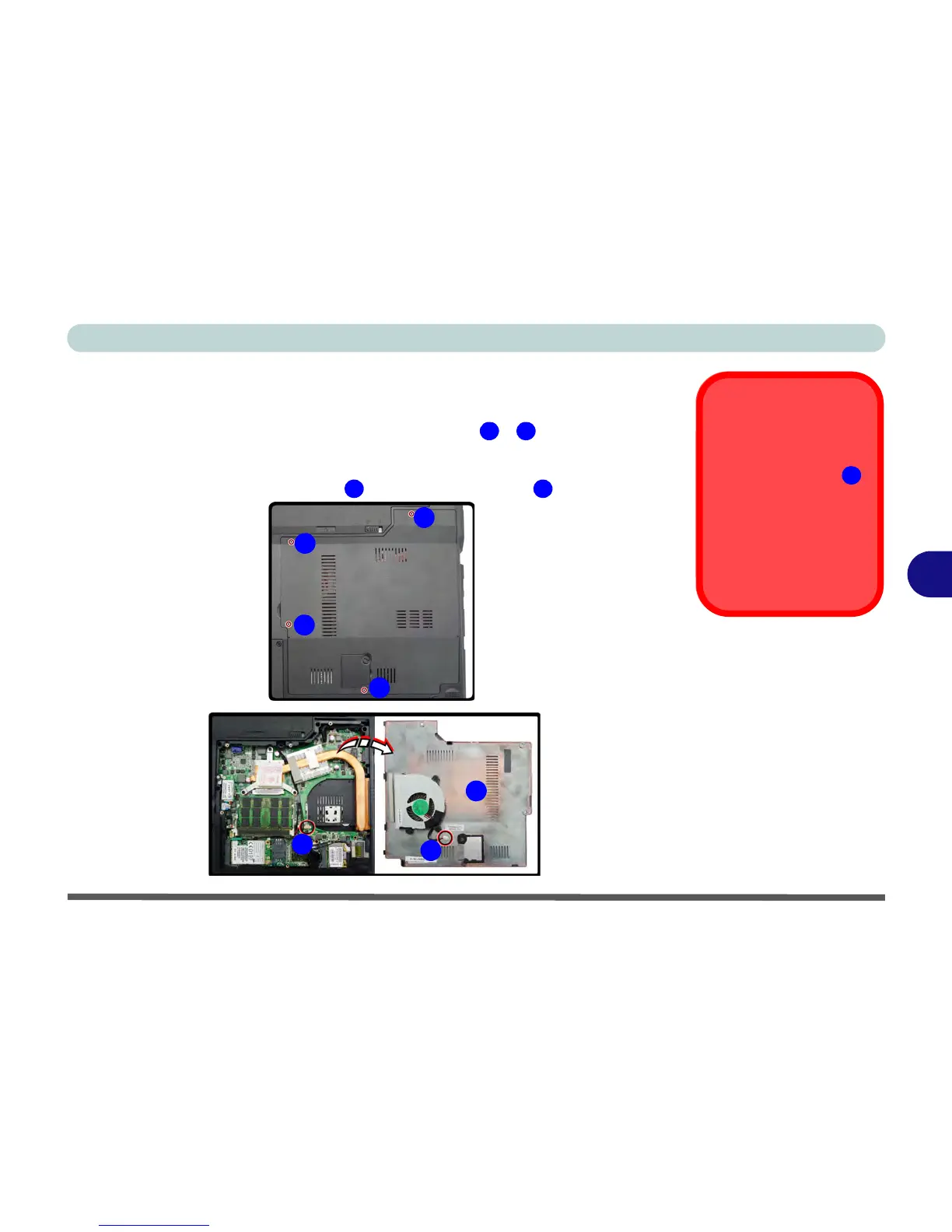

Figure 6 - 4
Removing the
Component Bay
Cover
