System Map: Right & Rear Views

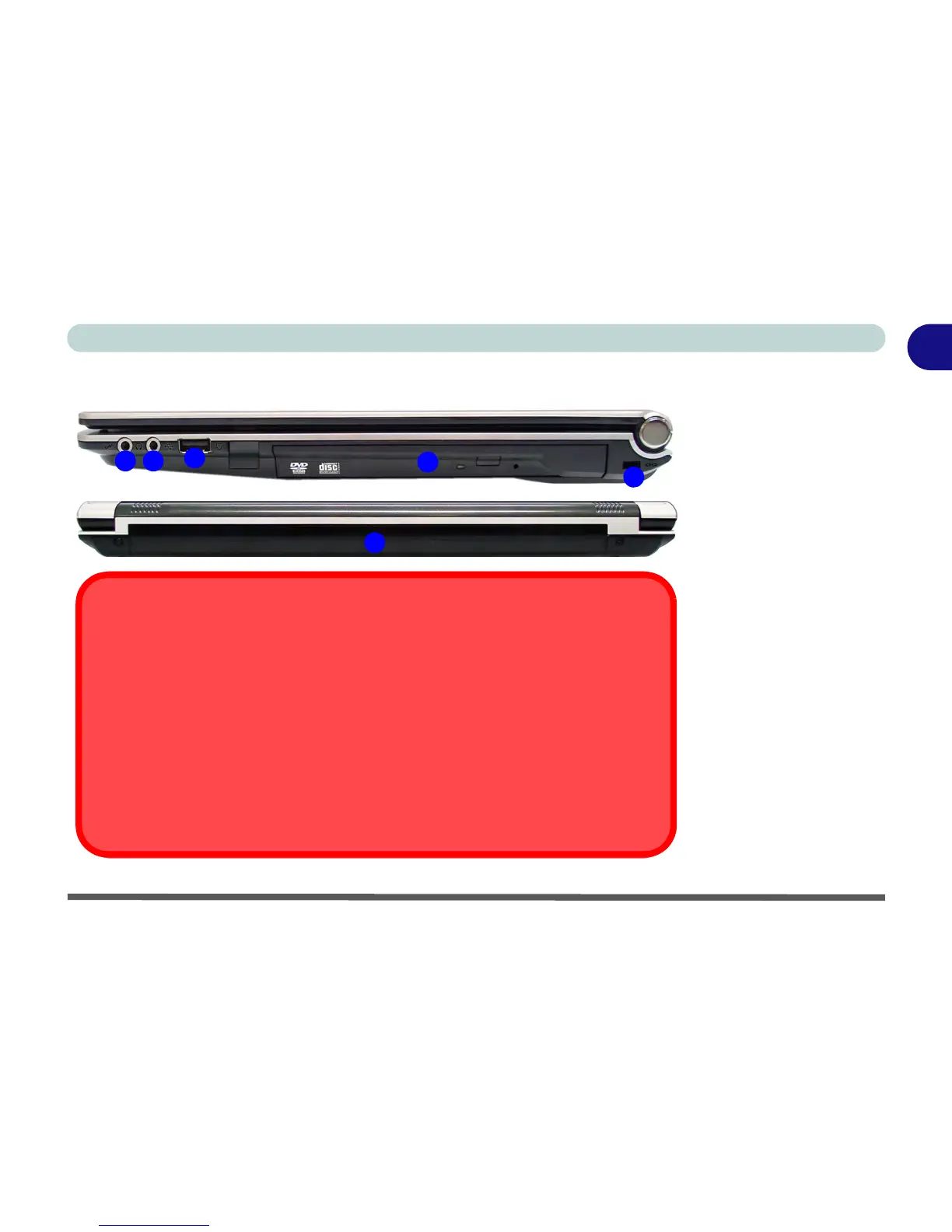

Figure 1 - 5
Right & Rear Views
1. Microphone-In
Jack
2. Headphone-Out
Jack
3. USB 2.0 Port
4. Optical Device
Drive Bay (for CD/
DVD Device)
5. Security Lock Slot
6. Battery
1
4
2
3
5
6

CD/DVD Emergency Eject
If you need to manually eject a CD/DVD (e.g. due to an unexpected power interruption)
you may push the end of a straightened paper clip into the emergency eject hole. Do not
use a sharpened pencil or any object that may break and become lodged in the hole.
Don’t try to remove a floppy disk/CD/DVD while the system is accessing it. This may
cause the system to “crash”.
Disk Eject Warning
Don’t try to eject a CD/DVD while the system is accessing it. This may cause the system
to “crash”. Stop the disk first then eject it, or press the stop button twice.
