Clevo C4505 - System Map: Front & Left Views

1 - 10 System Map: Front & Left Views
Quick Start Guide
1
System Map: Front & Left Views

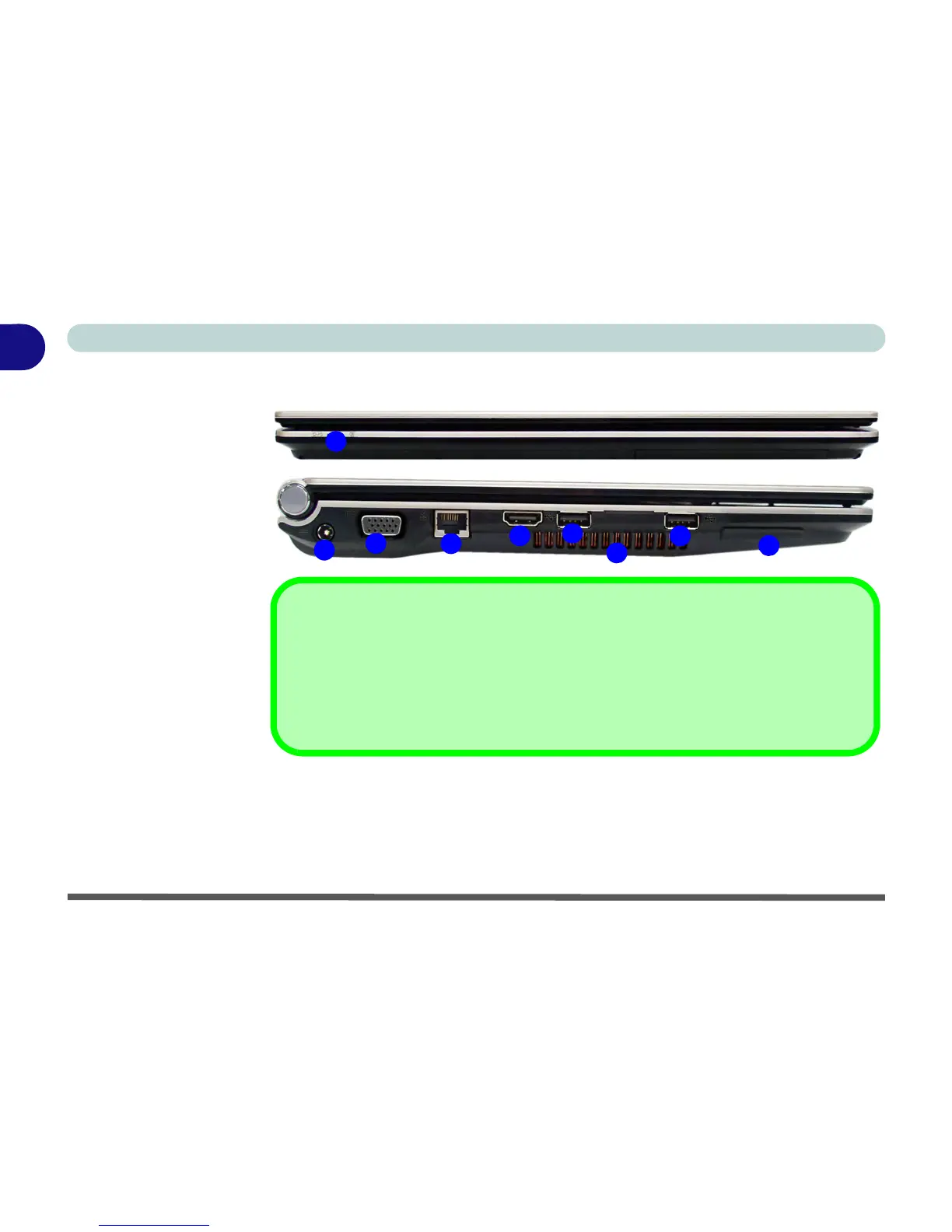

Figure 1 - 4
Front & Left Views
1. LED Power Indica-
tors (see
Table 1 -
1, on page 1 - 6)
2. DC-In Jack
3. External Monitor
Port
4. RJ-45 LAN Jack
5. HDMI-Out Port
6. 2 * USB 2.0 Ports
7. Vent/Fan Intake/
Outlet
8. Multi-In-1 Card
Reader
*See “HDMI Audio Con-
figuration” on page B - 14
for more information on the
audio settings for HDMI.
2
7
4
1
6
3

Multi-In-1 Card Reader
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / RSMMC
SD (Secure Digital) / Mini SD
MS (Memory Stick) / MS Pro / MS Duo
6
8
5
