20
English
Setup for Audio Recording
To record audio sources on your computer at optimum
quality follow the instructions below:
1. Click Start, and click Control Panel (or point to Settings and
click Control Panel).
2. Click Realtek HD Audio Manager (or right-click the notification
area icon
and select Sound Manager).
3. Click Microphone Effects (tab) in Microphone (tab), and then
click to select Noise Suppression (button), or adjust the
Recording Volume level to around 60, to obtain the optimum
recording quality.
4. Click OK to close the Sound control panel.
Setup for 5.1 or 7.1 Surround Sound
To setup your system for 5.1 or 7.1 surround sound you
will need to connect the audio cables to the Line-In, Head-
phone-Out, Microphone-In and S/PDIF-Out jacks (7.1
Speaker only).
1. Click Start, and click Control Panel (or point to Settings and
click Control Panel) and make sure you are in Classic View.
2. Click Realtek HD Audio Manager (or right-click the notification
area icon
and select Sound Manager).
3. Click Speakers (tab) and click Speaker Configuration (tab).
4. Select 5.1 Speaker or 7.1 Speaker from the Speaker
Configuration pull-down menu.
5. Plug the front speaker cables into the Headphone-Out Jack.
6. Plug in the cables (you may require an adapter to connect each
cable to the appropriate jack e.g a stereo mini to dual RCA
adapter) from your speakers as follows:
• Line-In Jack = Side Speaker Out
• Microphone-In Jack = Center/Subwoofer Speaker Out
• S/PDIF-Out Jack = Rear Speaker Out (7.1 Speaker only)
7. As you plug in each cable a dialog box will pop up.
8. Click to put a tick in the appropriate box according to the
speaker plugged-in (e.g. Rear Speaker Out), and then click OK
to save the setting.
9. Click OK to exit Realtek HD Audio Manager.
Figure 14 - Connected Device Auto Popup

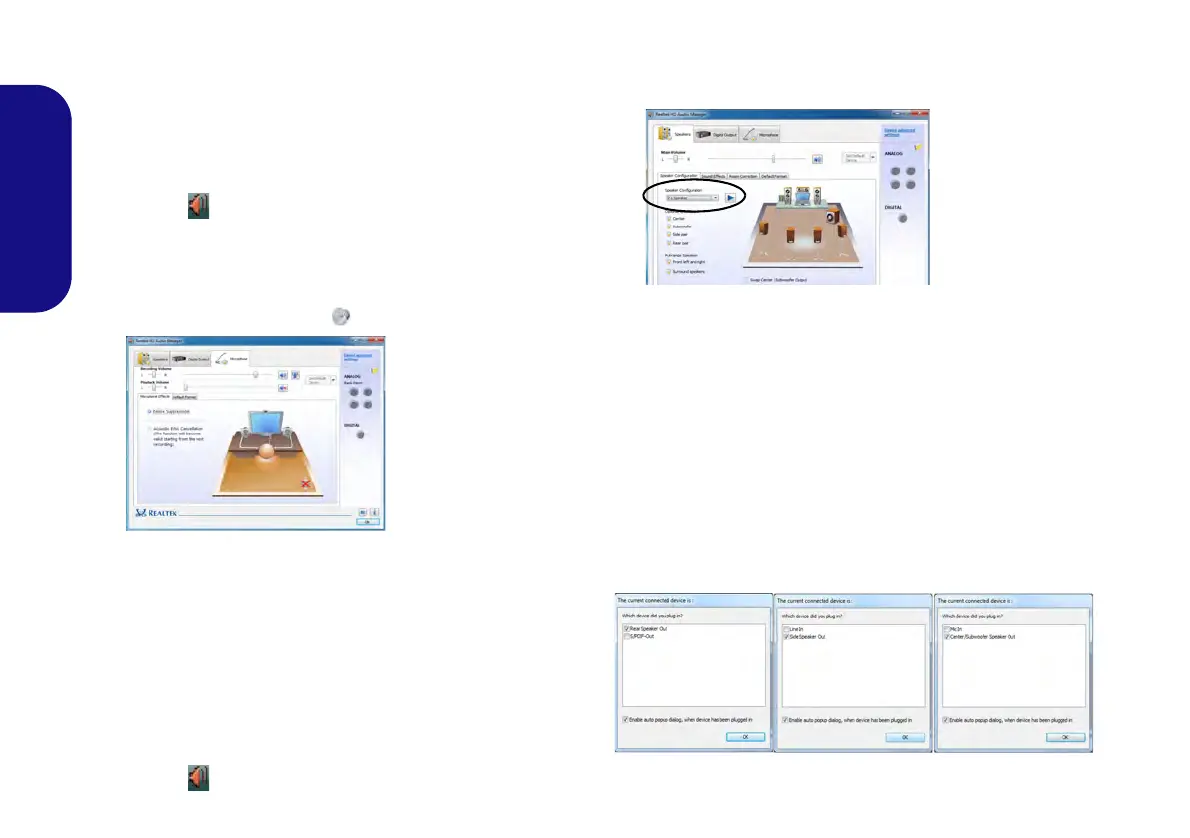

Figure 12
Realtek HD
Audio Man-
ager - Re-
cording
Setup
Figure 13
Speaker Con-
figuration
