ClimateMaster Water-Source Heat Pumps
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
30 (TT) Series
Rev.: 07/18/13

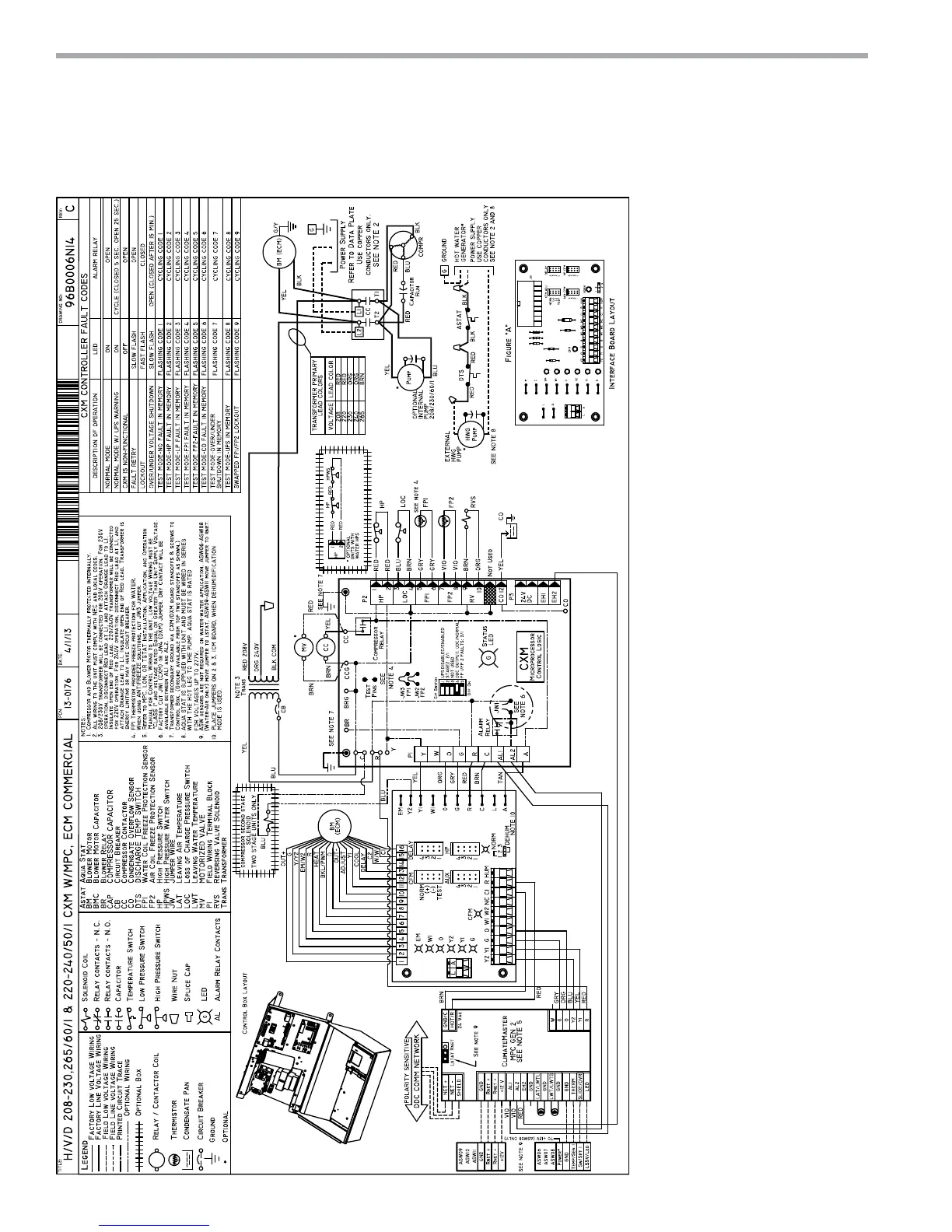

Typical Wiring Diagram - Units with CXM Board,
ECM Fan Motor, and MPC (DDC) CONTROLS (SINGLE PHASE)
