ClimateMaster Water-Source Heat Pumps
CLIMATEMASTER WATER-SOURCE HEAT PUMPS
Tranquility
®
30 (TT) Series
Rev.: 07/18/13
WARNING! When the disconnect switch is closed, high
voltage is present in some areas of the electrical panel.
Exercise caution when working with energized equipment.
CAUTION! Verify that ALL water control valves are open and
allow water fl ow prior to engaging the compressor. Freezing
of the coax or water lines can permanently damage the heat
pump.

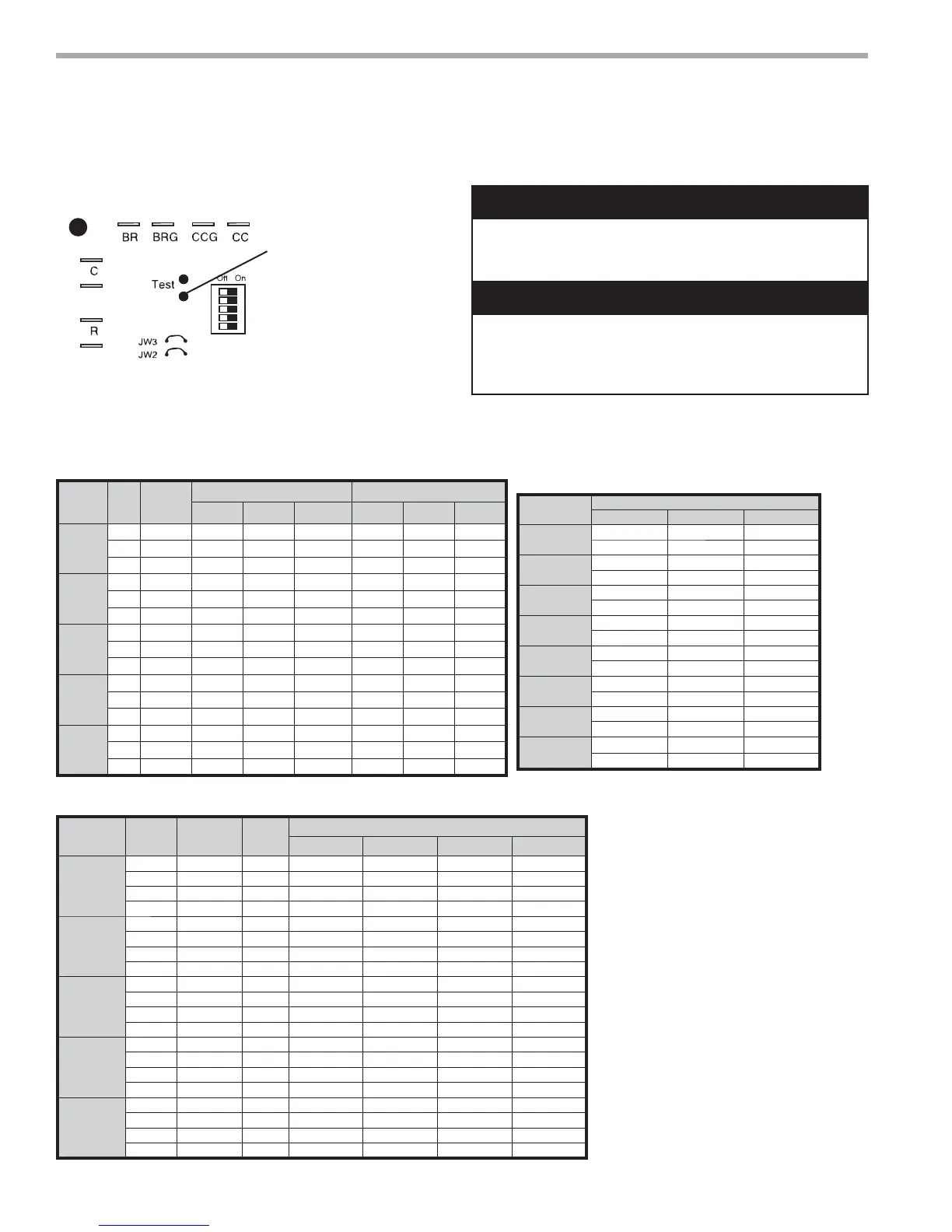

Figure 25: Test Mode Pins
 WARNING! 
 CAUTION! 
UNIT OPERATING CONDITIONS
LT1
LT2
Short test pins together
to enter Test Mode and
speed-up timing and delays
for 20 minutes.
Unit Start-Up Procedure
ClimaDry
®
II Option Corrections
(When Operating in Non-ClimaDry
®
Mode)
Model
Additional WPD
GPM PSI FT
015
1.8 0.32 0.73
2.8 0.77 1.77
018
2.3 0.52 1.20
3.4 1.13 2.62
024
3.0 0.88 2.04
4.5 1.98 4.58
030
3.8 0.62 1.44
5.6 1.35 3.12
036
4.5 0.87 2.02
6.8 1.99 4.60
042
5.3 1.21 2.80
7.9 2.69 6.21
048
6.0 1.55 3.58
9.0 3.49 8.06
060
7.5 1.49 3.45
11.3 3.39 7.82
Model
U.S.
GPM
l/s l/m
Pressure Drop, psi [kPa]*
30ºF [-1ºC] 50ºF [10ºC] 70ºF [21ºC] 90ºF [32ºC]
026
4.0 0.252 15 1.5 [10.3] 1.3 [9.0] 1.1 [7.6] 1.0 [6.9]
6.0 0.378 23 3.1 [21.4] 2.6 [17.9] 2.3 [15.9] 2.1 [14.5]
7.0 0.441 26 4.1 [28.3] 3.4 [23.4] 3.0 [20.7] 2.7 [18.6]
8.0 0.504 30 5.1 [35.2] 4.3 [29.7] 3.8 [26.2] 3.4 [23.4]
038
4.0 0.252 15 1.2 [8.3] 1.0 [6.9] 0.8 [5.5] 0.6 [4.1]
6.0 0.378 23 2.6 [17.9] 2.5 [17.2] 2.3 [15.9] 2.1 [14.5]
8.0 0.504 30 4.5 [31.0] 4.2 [29.0] 4.0 [27.6] 3.7 [25.5]
9.0 0.567 34 5.7 [39.3] 5.2 [35.9] 4.8 [33.1] 4.4 [30.3]
049
5.5 0.347 21 1.1 [7.6] 0.9 [6.2] 0.8 [5.5] 0.7 [4.8]
8.3 0.523 31 2.2 [15.2] 2.1 [14.5] 2.0 [13.8] 1.8 [12.4]
11.0 0.693 42 3.9 [26.9] 3.6 [24.8] 3.2 [22.1] 3.1 [21.4]
12.0 0.756 45 4.5 [31.0] 4.2 [29.0] 3.8 [26.2] 3.5 [24.1]
064
7.0 0.441 26 0.5 [3.4] 0.3 [2.1] 0.2 [1.4] 0.1 [0.7]
10.5 0.662 40 1.9 [13.1] 1.8 [12.4] 1.7 [11.7] 1.6 [11.0]
14.0 0.882 53 3.9 [26.9] 3.5 [24.1] 3.2 [22.1] 2.9 [20.0]
15.0 0.945 57 4.8 [33.1] 4.3 [29.7] 3.9 [26.9] 3.5 [24.1]
072
7.5 0.473 29 1.7 [11.7] 1.5 [10.3] 1.3 [9.0] 1.3 [9.0]
11.3 0.712 43 3.9 [26.9] 3.4 [23.4] 3.0 [20.7] 2.8 [19.3]
15.0 0.945 57 6.9 [47.6] 6.0 [41.4] 5.4 [37.2] 5.0 [34.5]
17.0 1.071 64 8.9 [61.4] 7.7 [53.1] 6.9 [47.6] 6.5 [44.8]
*Note: To convert to kPa millibars, multiply by 10.
Table 10: TT Coax Water Pressure Drop
Motorized Water Valve Option Corrections
Model Cv MOPD
WPD Adders (Part Load) WPD Adders (Full Load)
GPM PSI FT GPM PSI FT
026
10.3 150
3.5 0.12 0.27 4.0 0.15 0.35
10.3 150
5.8 0.31 0.72 6.0 0.34 0.78
10.3 150
7.0 0.46 1.07 8.0 0.60 1.39
038
10.3 150
4.0 0.15 0.35 4.5 0.19 0.44
10.3 150
6.0 0.34 0.78 6.8 0.43 0.99
10.3 150
8.0 0.60 1.39 9.0 0.76 1.76
049
10.3 150
5.5 0.29 0.66 6.0 0.34 0.78
10.3 150
8.3 0.64 1.48 9.0 0.76 1.76
10.3 150
11.0 1.14 2.63 12.0 1.36 3.14
064
8.9 150
7.0 0.62 1.43 7.5 0.71 1.64
8.9 150
10.5 1.39 3.22 11.3 1.60 3.69
8.9 150
14.0 2.47 5.72 15.0 2.84 6.56
072
8.9 150
7.5 0.71 1.64 8.5 0.91 2.11
8.9 150
11.3 1.61 3.72 12.8 2.07 4.78
8.9 150
15.0 2.84 6.56 17.0 3.65 8.43
