Water-Loop Heat Pump Applications
Commercial Water Loop Applications
Commercial systems typically include a number of units
connected to a common piping system. Any unit plumbing
maintenance work can introduce air into the piping system;
therefore air elimination equipment is a major portion of the
mechanical room plumbing. Consideration should be given
to insulating the piping surfaces to avoid condensation.
ClimateMaster recommends unit insulation any time the
water temperature is expected to be below 60ºF (15.6ºC).
Metal to plastic threaded joints should never be used due to
their tendency to leak over time.
Teon
®
tape thread sealant is recommended to minimize
internal fouling of the heat exchanger. Do not over tighten
connections and route piping so as not to interfere with
service or maintenance access. Hose kits are available from
ClimateMaster in different congurations for connection
between the unit and the piping system. Depending upon
selection, hose kits may include shut off valves, P/T plugs
for performance measurement, high pressure stainless
steel braided hose, “Y” type strainer with blow down valve,
and/or with blow down valve, auto-ow valve and swivel
connections.
The piping system should be ushed to remove dirt, piping
chips, and other foreign material prior to operation (see
“Piping System Cleaning and Flushing Procedures” in this
manual). The ow rate is usually set between 2.25 and 3.5
gpm per ton [2.9 and 4.5 l/m per kW] of cooling capacity.
ClimateMaster recommends 3 gpm per ton [3.9 l/m per
kW] for most applications of water loop heat pumps. To
ensure proper maintenance and servicing, P/T ports are
imperative for temperature and ow verication, as well as
performance checks.
Water loop heat pump (cooling tower/boiler) systems
typically utilize a common loop, maintained between
60 - 90°F [16 - 32°C]. The use of a closed circuit
evaporative cooling tower with a secondary heat
exchanger between the tower and the water loop is
recommended. If an open type cooling tower is used
continuously, chemical treatment and ltering will be
necessary.

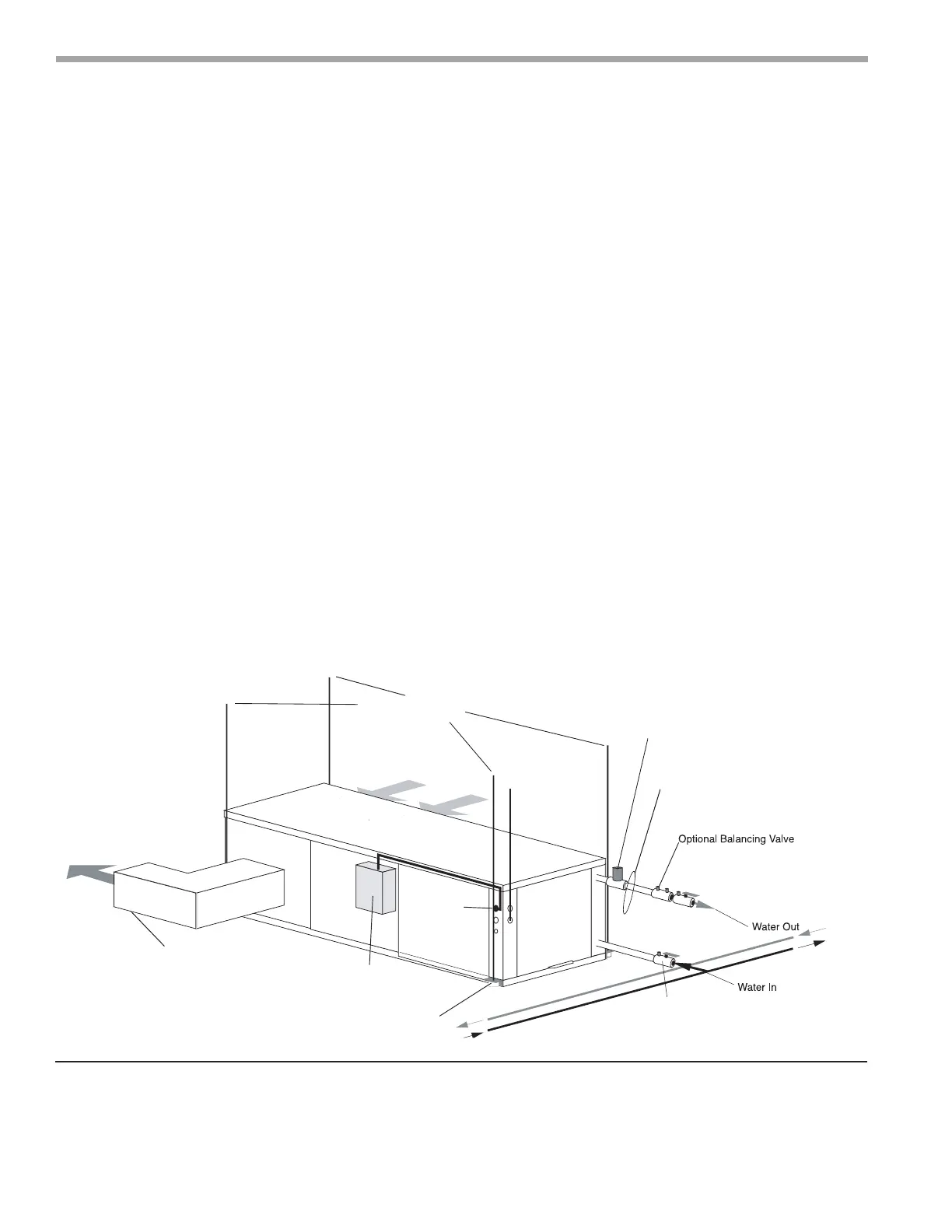

Typical Water-Loop Application
(by others)
(by others)
Thermostat
Wiring
Ball Valve with optional
integral P/T plug
Building
Loop
Unit Power
Disconnect
Power Wiring
Insulated supply duct with
at least one 90 deg elbow
to reduce air noise
Return Air
Supply Air
Unit Hanger
3/8" [10mm] threaded rods
Unit Power
Stainless steel braid hose
with integral "J" swivel
Optional Water Control Valve
Low Water Temperature Cutout Setting - DXM2 Control
When antifreeze is selected, the LT1 jumper (JW3) should be clipped to select the low temperature (antifreeze 10.0°F
[-12.2°C]) setpoint and avoid nuisance faults (see “Low Water Temperature Cutout Selection” in this manual). Note:
Low water temperature operation requires extended range equipment.
