4 - WATER CONNECTIONS
4.3.2 Condensation discharge VERTICAL version 4.3.1 Condensation discharge HORIZONTAL version
x Connect to the condensation collection tray discharge
union (fig. 4.3 rif. A) a pipe for the outflow of the liquid (fig.
4.3 rif. B) blocking it adequately.
x Check that the drip-collector extension (fig. 4.3 ref. C) is
present and correctly installed.
To mount the horizontal bowl refer to the instructions in kits.
x check that the "L" pipe and the flexible rubber hose are
correctly connected to the bowl (fig. 4.1 rif. A).
x slide in the side of the machine keeping the pipe in
position up against the front grill.
x fully close the side checking that the pipe remains blocked
in the special grove on the side (fig. 4.2 rif. B).
For the horizontal installation carefully note the following
precautions:
x make sure that the machine is installed perfectly
level or with a slight inclination towards the
condensation discharge;
x insulate carefully the inflow and outflow pipes up to
the machine union to prevent any drops of
condensation outside the same collection bowl;
x insulate the bowl condensation discharge pipe
along all of its length.
4.4 FIXTURE ROTATION
The operations described and the relative images refer to a
machine with fixtures on the left on which the fixtures on the
right side must be rotated.
If there is a machine available with right side fixtures that
require rotation to the left, the sequence of the operations is
the same, only the images are a mirror image.
To connect the motor to the control kit, use the special
cabling optional.
4.4.1 Dismouting panels
x Dismount the upper grill (fig. 4.4 ref. A) unscrewing the
two fixing screws (fig. 4.4 ref. B)
x On the left-hand side lift the cover covering the screw (fig.
4.4 ref. C) and loosen the screw (D) that fixes the left
panel (fig. 4.4 ref. E) , then move it slightly to the left and
lift it up.
x On the opposite side lift the cover covering the screw (fig.
4.4 ref. C) and unscrew it.
x Move the side panel slightly (fig. 4.4 ref. F) to the right and
lift it.
x Remove the lower front grill (fig. 4.5 rif. G).
x Loosen the screws (fig. 4.5 ref. H-I) fixing the front panel
(fig. 4.5 ref. L) and dismount it.

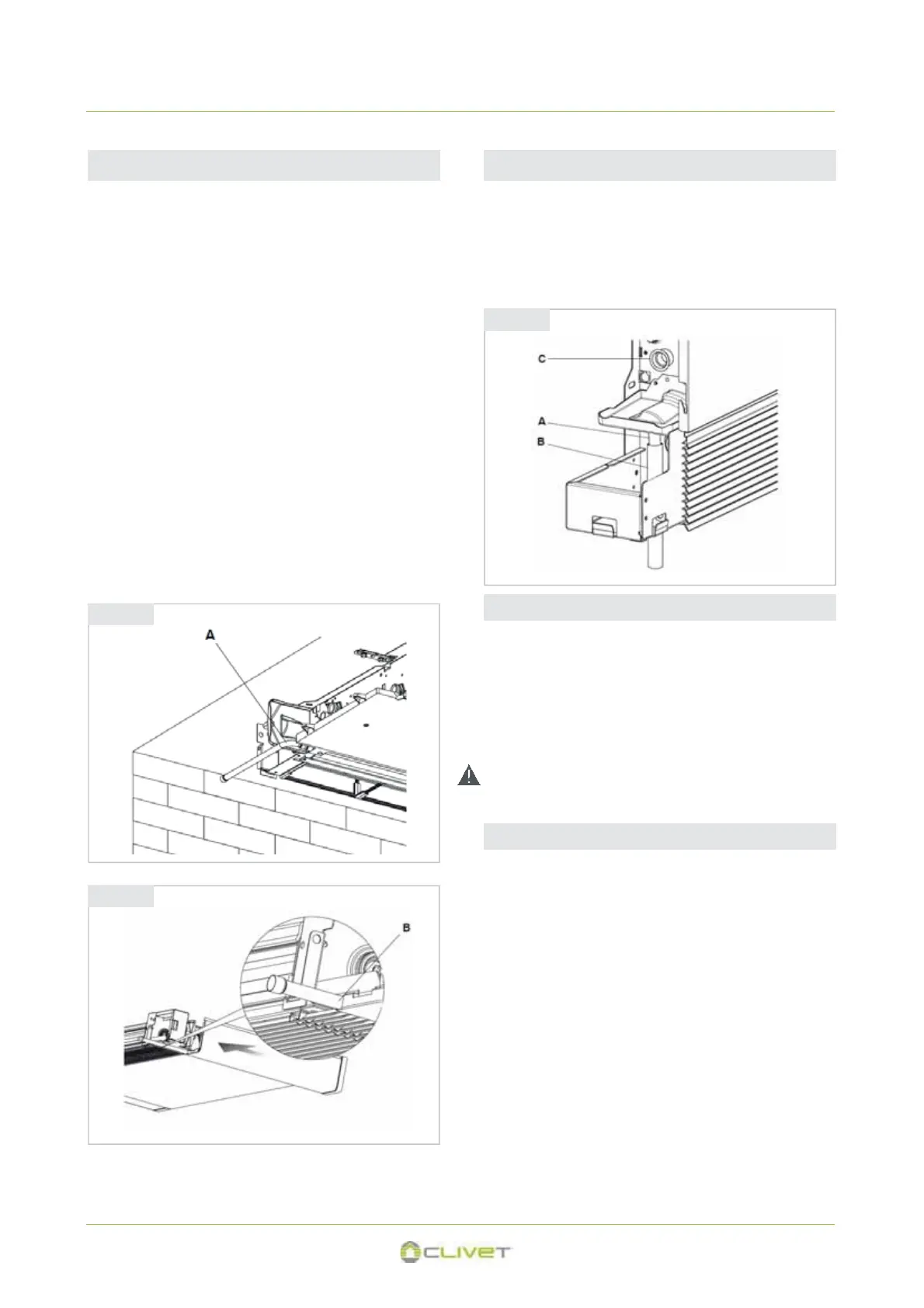

fig 4.2
fig 4.1
fig 4.3
M09160D17-02 60
