5 - ELECTRICAL CONNECTIONS
5.11 Thermostats connections

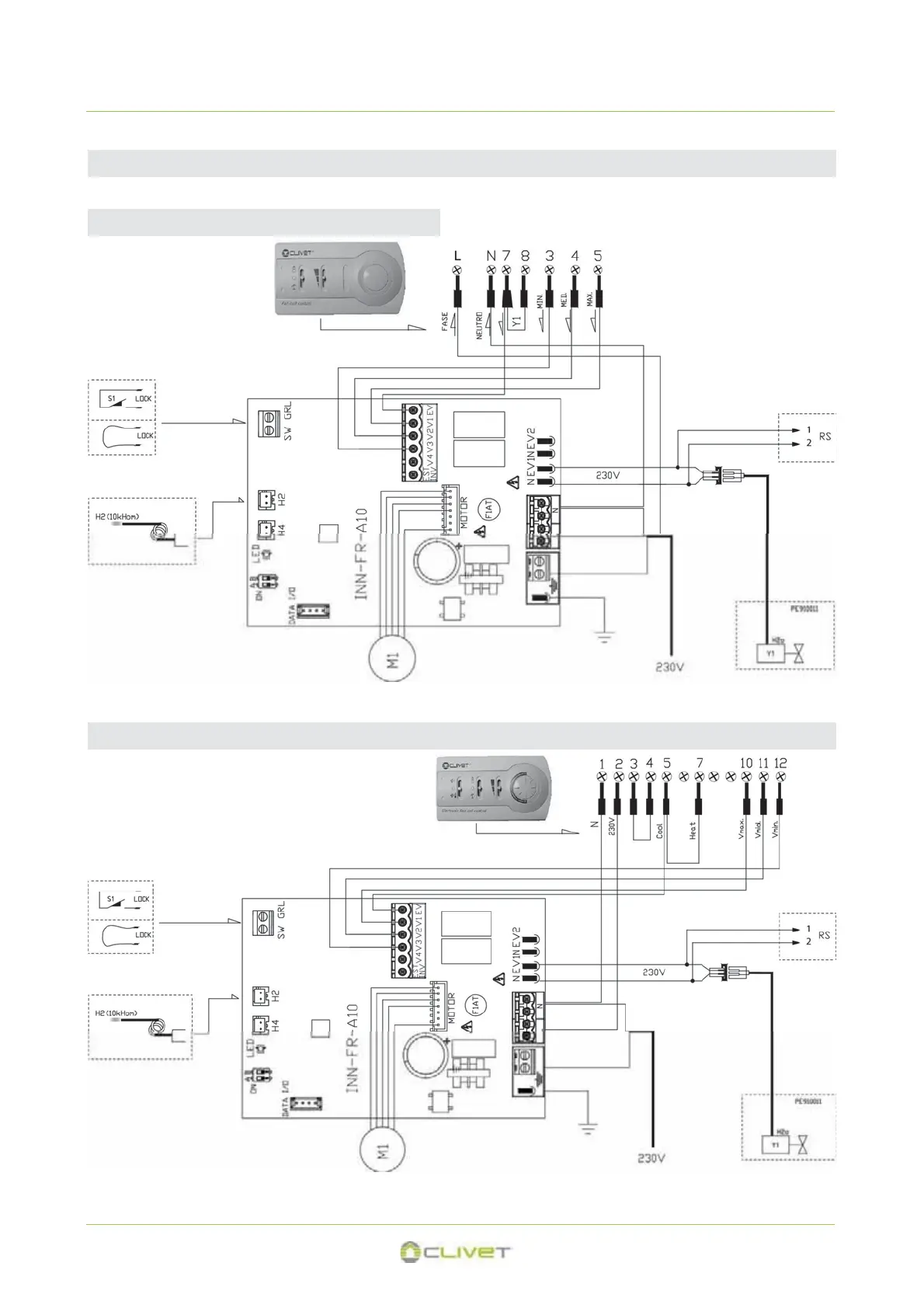

SC3V - DC motor modulation electronic board for matching to 3 speeds thermostats without RS485 interface
HID-E1 thermostat - 2 pipe system
Y1 Water solenoid valve(heating/cooling) RS Radiant optional (page.74)
2 pipes
HID-E2 thermostat - 2 pipe system
Y1 Water solenoid valve(heating/cooling) RS Radiant optional (page.74)
2 pipes
M1 = motor
S1 = Grill safety
micro-switch
Deck electric
Cased
version
Built-in
version
Water probe
Not connected
M1 = motor
S1 = Grill safety
micro-switch
Deck electric
Cased
version
Built-in
version
Water probe
Not connected
