4 - WATER CONNECTIONS
4.5 MOUNTING FRONT GRILL SAFETY SUPPORT
x open the front grill and completely unscrew the fixing
screws on the springs (fig. 4.9 rif. B);
x fix the two clamps, blocking them by retightening the screws
(fig. 4.9 rif. B);
x fix the other part of the clamp to the grill using the supplied
screws (fig. 4.9 rif. C);
x Close the grill.
In the case in which the coolerconvector is installed in a
horizontal position, to guarantee the safety of the cleaning/
filter replacement operations it is obligatory that the two
clamps, in the supplied bag together with the instruction
manual and the accessories, are mounted by the installer.
x Separate the two clamps (fig. 4.9 rif. A);

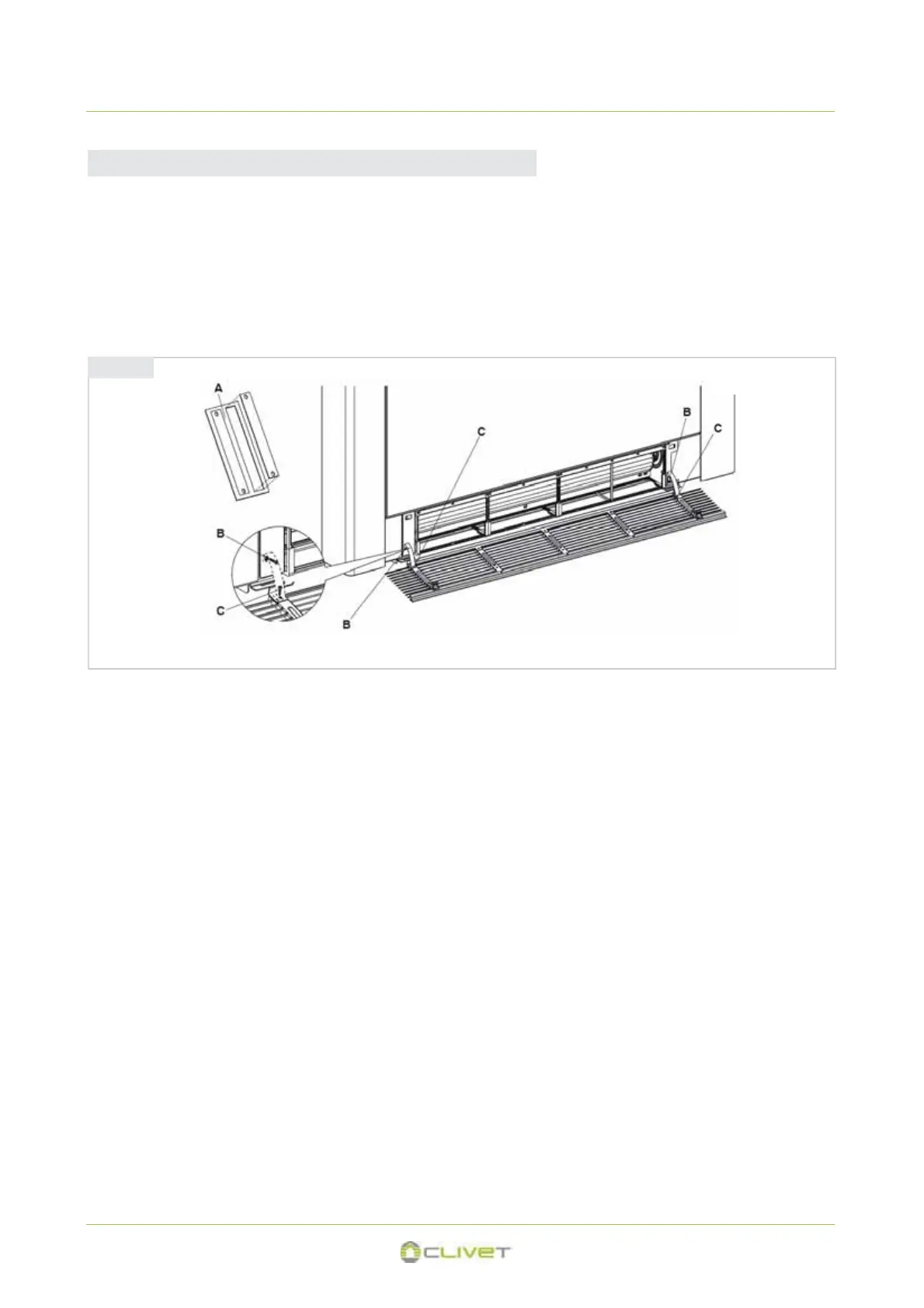

fig 4.9
M09160D17-02 64
