CLIVET ELFORoom2 003.0

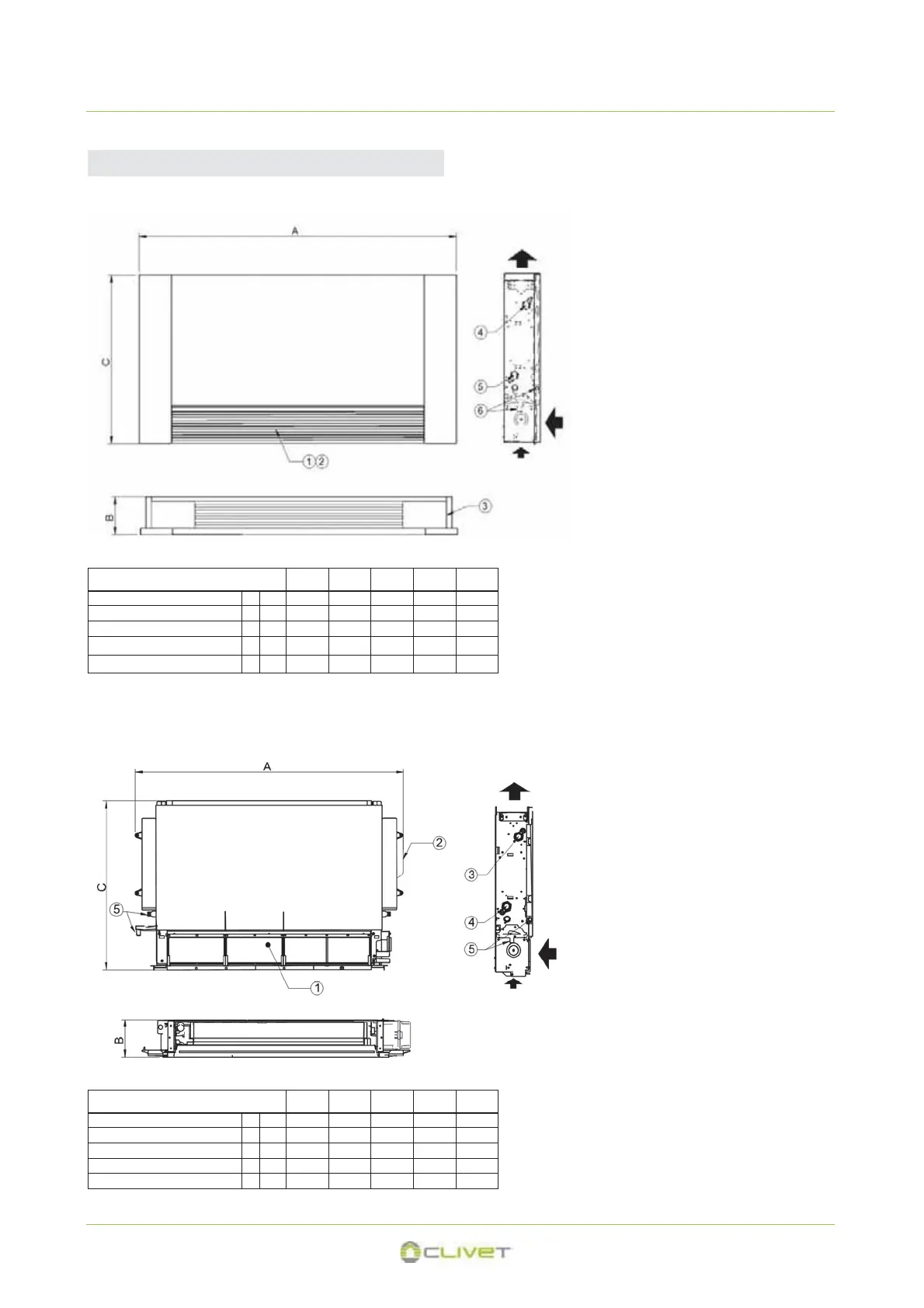

8.1 DIMENSIONS
8 - TECHNICAL INFORMATION
SIZE
003.0 005.0 011.0 015.0 017.0
A mm 737 937 1137 1337
B mm 130 130 130 130
C mm 579 579 579 579
Net weight kg 17 20 23 26
1537
130
579
29
Shipping weight
kg 18 21 24 27 30
Cased version - 2 pipes
Uncased version - 2 pipes
SIZE
003.0 005.0 011.0 015.0 017.0
A mm 527 727 927 1227
B mm 130 130 130 130
C mm 586 586 586 586
Net weight kg 9 12 15 18
1327
130
586
21
Shipping weight
kg 10 13 16 19 22
1. Intake grille removable
2. Air intake removable filter
3. Electrical panel
4. Water inlet, Eurokonus 3/4” F
5. Water outlet, Eurokonus 3/4” F
6. Condensate drain (Ø 14 mm)
1. Air intake removable filter
2. Electrical panel
3. Water inlet, Eurokonus 3/4” F
4. Water outlet, Eurokonus 3/4” F
5. Condensate drain (Ø 14 mm)
