Description of the system
3.2 Hydraulic module
3.2.1 Sizes 2.1 to 3.1
Version with built-in heaterStandard version without built-in heater
2
5.3
1
7
3
4
5.4
5.5
5.1
5.2
6
8
9
12
11
10
1
4
5.4
5.5
6
9
11
10
3
7
8
12
2
5.3
2.1 - 3.1
2.1 - 3.1

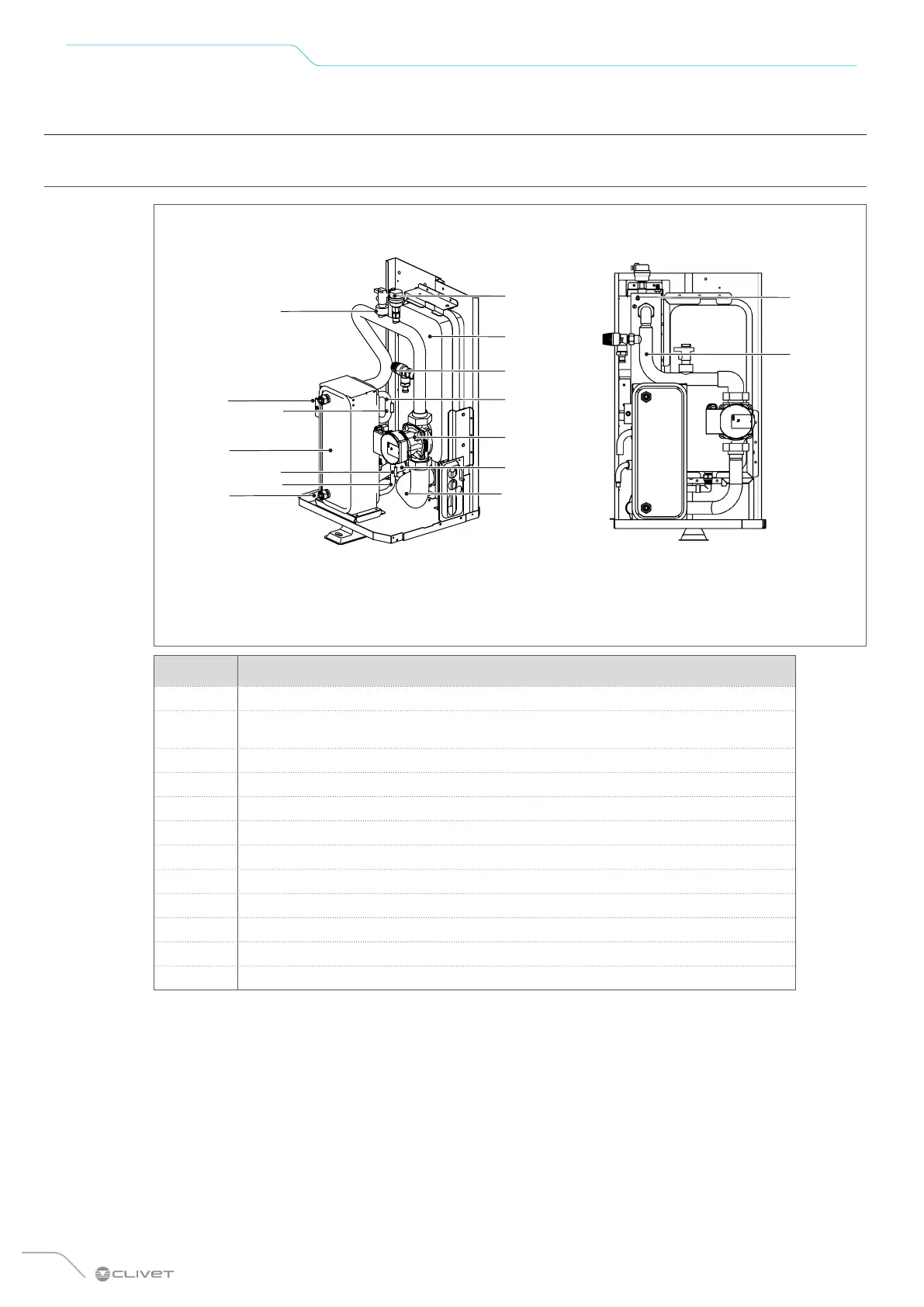

Fig. 5
No. Component
1 Automatic air vent valve
2
Additional/backup electric heater
(optional configuration)
3 Expansion tank
4 Refrigerant gas pipe
5 Temperature sensors
6 Refrigerant pipe
7 Flow switch
8 Pump
9 Plate heat exchanger
10 Water outlet pipe
11 Pressure relief valve
12 Water inlet pipe
