Installation

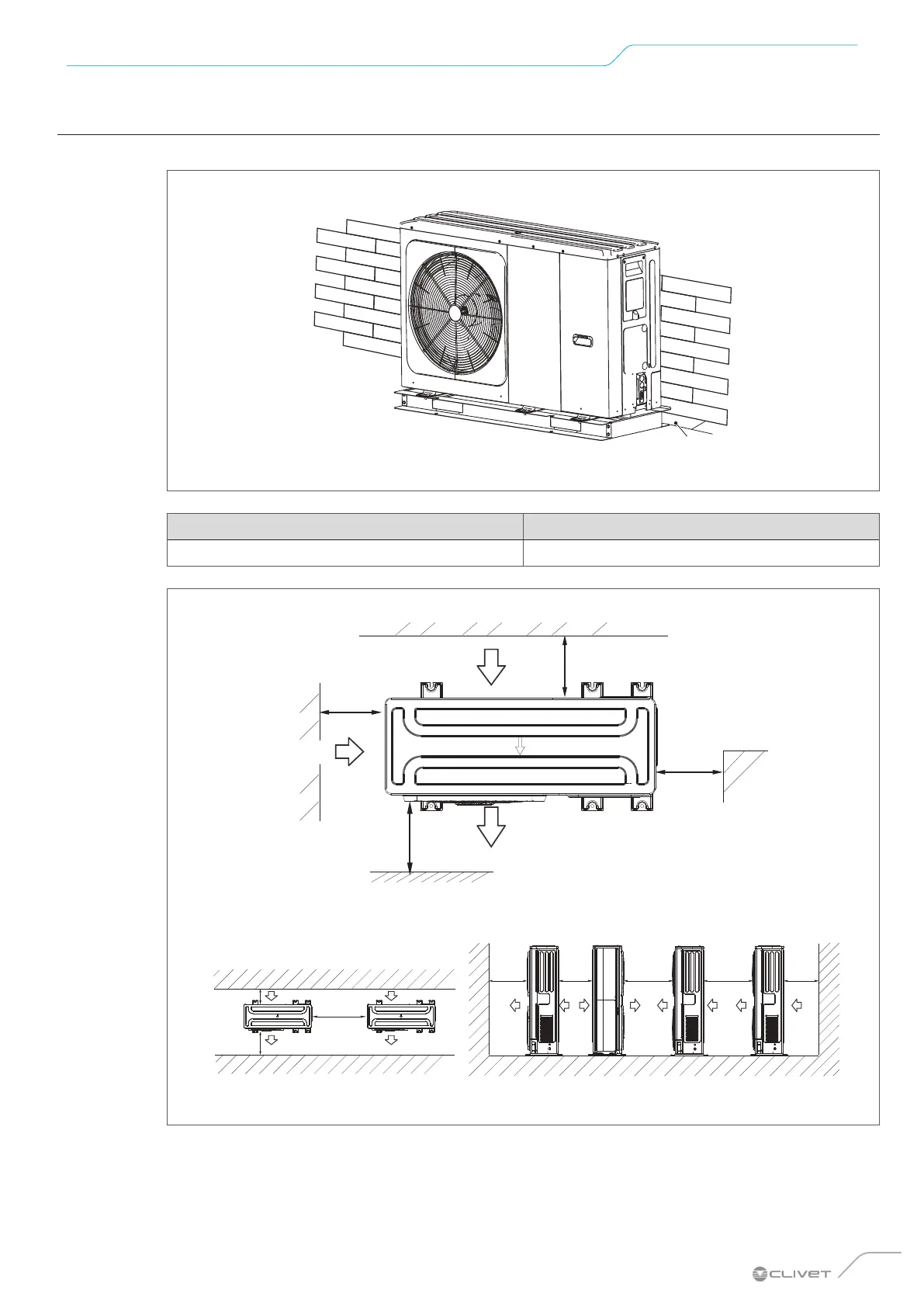

5.2 Standard installation
A
Fig. 14
Size A(mm)
2.1~14.1 ≥300
>600
>3000
>300
>3000 >1000
>6000
>4000 >300
>300
>600
>
300
>
0003
Air inlet
Air inlet
Air outlet
Parallel installation of two or more units Front to back
Fig. 15
