Before installation

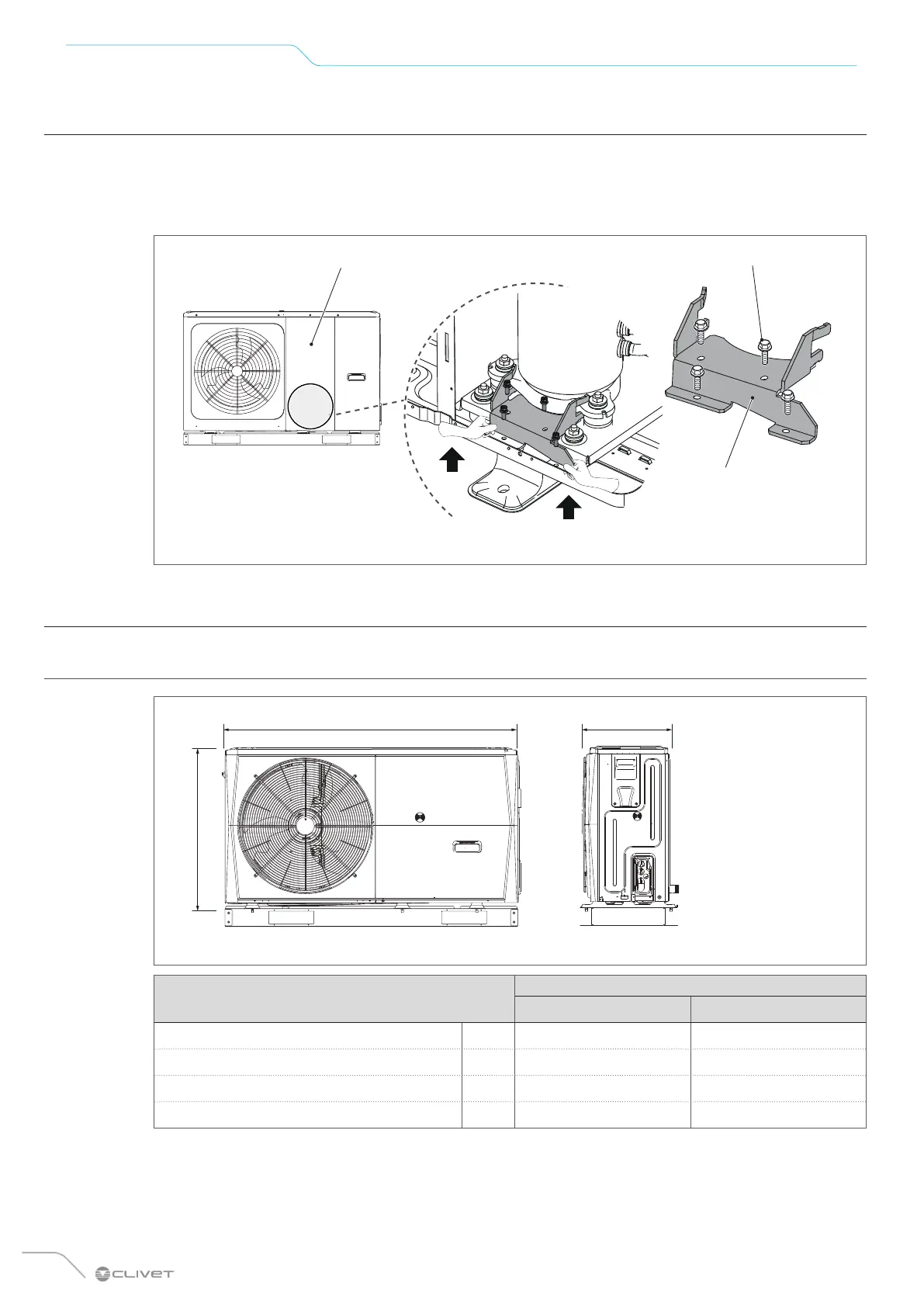

4.5 Removing the transport bracket
For models 6.1, 7.1 and 8.1 , remove the bracket (3) used during transport to avoid stressing the compressor.
• Remove the front panel (1).
• Remove the screws (2).
• Remove the bracket (3).
1
2
3
Fig. 10
4.6 Dimensions and weights
4.6.1 Sizes 2.1 to 3.1
A
B C
Fig. 11
Size
2.1 3.1
Height (A) mm 717 717
Width (B) mm 1295 1295
Depth (C) mm 400 400
Weight kg 86 86
