4 - WATER CONNECTIONS

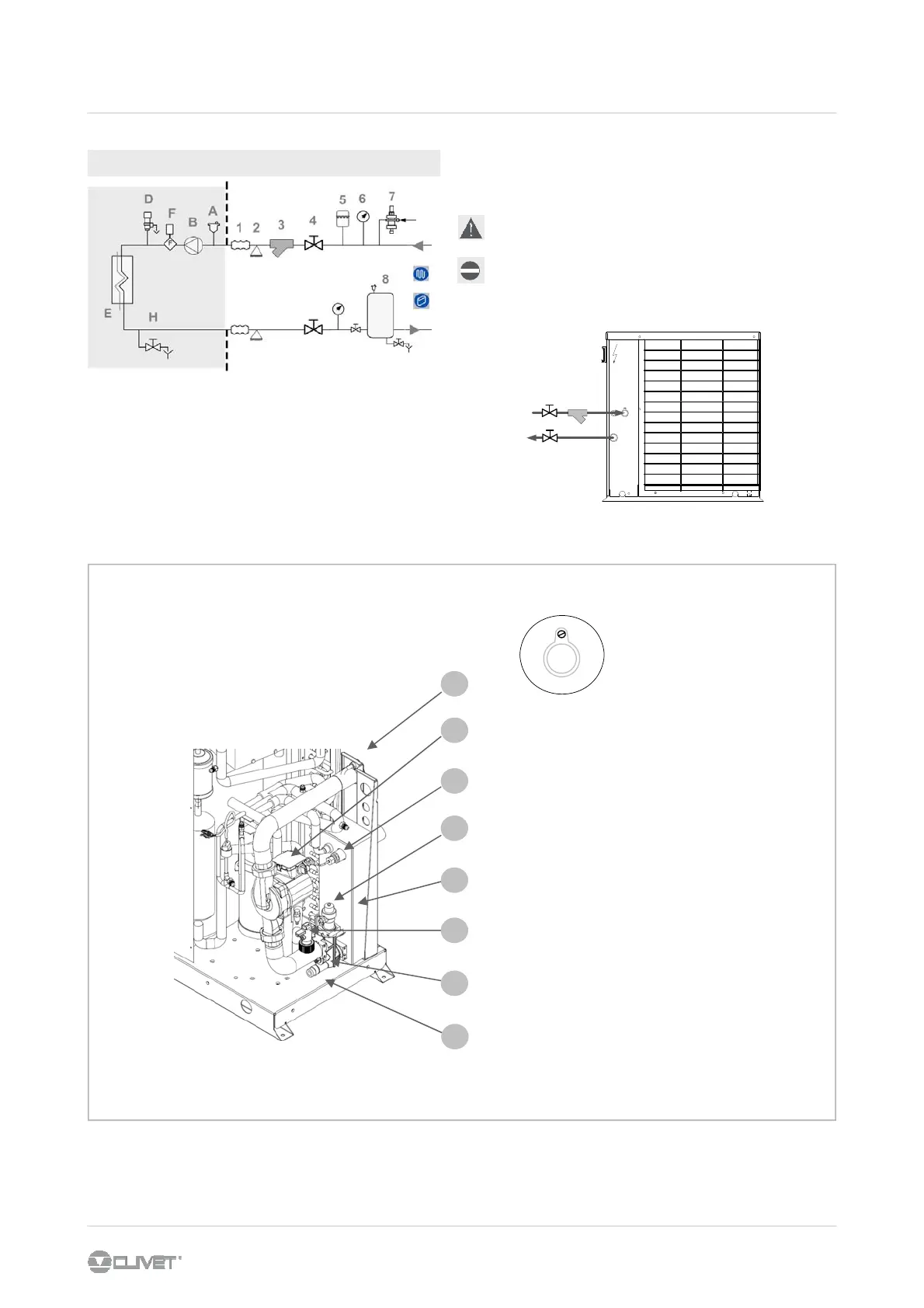

4.7 RECOMMENDED CONNECTION
IN
OUT
WATER FILTER
• Must be installed immediately in the water input of the unit,
in a position that is easily accessible for cleaning.
• The filter never should be removed, this operation
invalidates the guaranty
G
F
D
C
B
A
Vent
Circulator
Output probe
Safety valve ( 6 bar )
Flow switch
Input probe
H
Water discharge
E
A vent
B pump
F flow switch
D safety valve
E user side exchanger
H discharge cock
Plate exchanger
1. antivibration joints
2. supports
3. filter
4. cut-off valves
5. expansion tank
6. pressure switch/thermometer
7. filling valve
8. inertial storage tank
