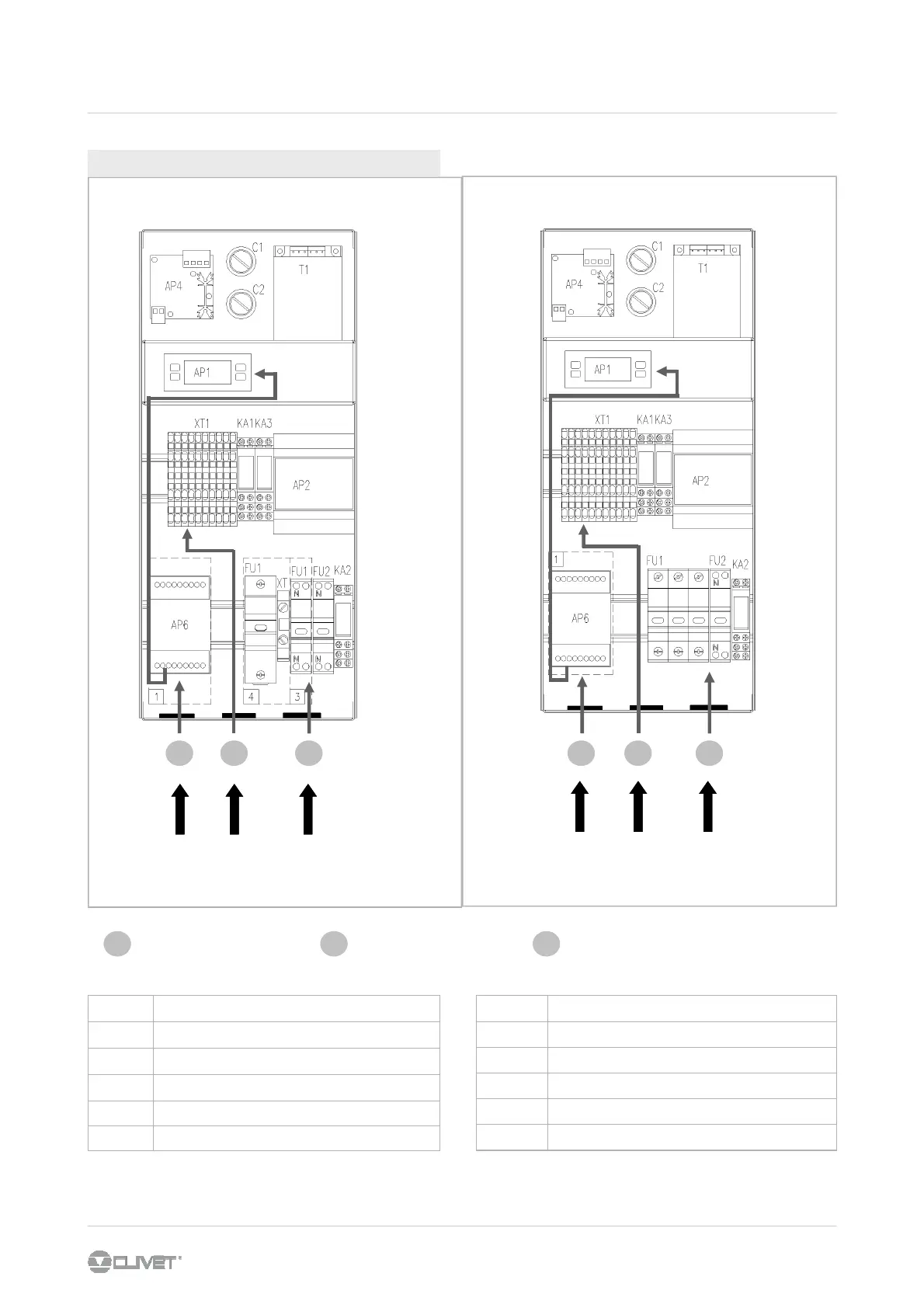

5.6 ELECTRICAL PANEL
AP1 Main control module
AP2 Electronic thermostatic management board
AP4 Fan control module
AP6 RS 485 module (optional)
C1 / C2
Fan condenser
T1
Transformer
5 - ELECTRICAL CONNECTIONS
FU2
Aux. circuit protection fuse
KA1
Aux. relay of inverter alarm
KA2
Compressor control relay
KA3
Control relay of the circulating pump
XT1 Terminal block of the Customer connections
FU1 Fuse
INPUTS
INPUTS
RS485
A
Signals
B
Power supply
C
230/1/50
400/3/50+N
A B C A B C
