CLIVET WSAN-XIN 21 - Ambient Keyboard Remote Control

15
QG unit electrical panel
XT1 Terminal block of the Customer connections
AP7 ambient keiboard
A Max. = 100 mt.
Cable section: Min. 0,35 Max.1 mm
2
5 - ELECTRICAL CONNECTIONS

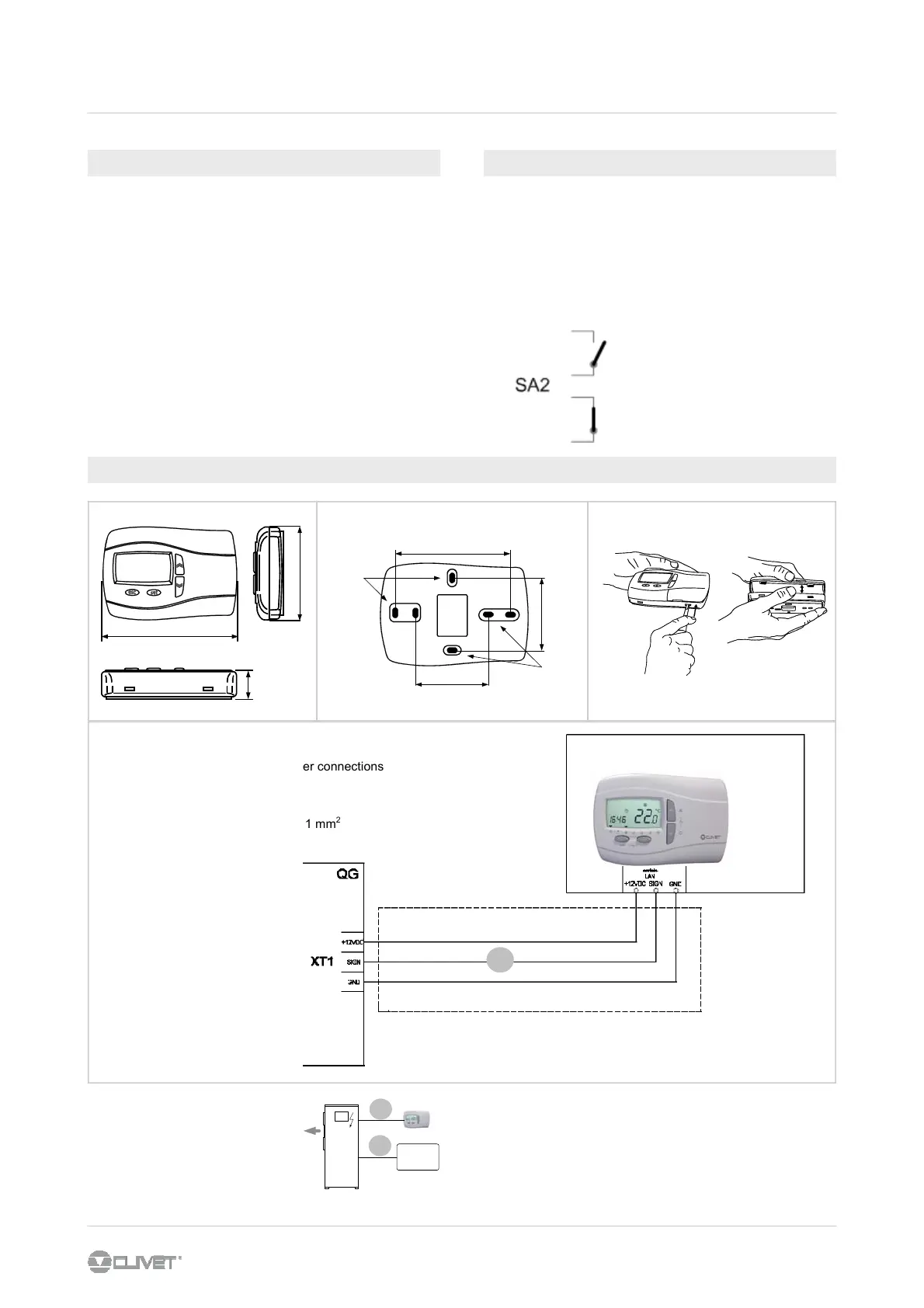

5.9 REMOTE CONTROL WITH AMBIENT KEYBOARD
ACCESSORY
PER90002 (RCTX)
CMACSX
137
96.5
31.3
Ø 4mm
Ø 4mm
60
84
60
LAN net: A + B = 100 mt. Max
CMACSX : DHW module
A
B
A
AP7
SA1 ON - OFF REMOTO
set parameter CL43 :
CL43 = - 2 SA1 = ON-OFF remote
hour scheduling enabled
CL43 = - 1 SA1 = standby remote (see * pag 27)
hour scheduling disabled
CL43 = -28 SA1 = only Domestic Hot Water remote
SA1 ON = DHW + system
SA1 OFF = only DHW
SA2 SUMMER - WINTER REMOTE
set parameter CL44 :
CL44 = 0 SA2 = disabled
CL44 = -3 summer - winter remote
change from keyboard disabled
SUMMER
WINTER
