20 WSAT-XIN 21-171 M0Q940G14-03
6.6 Connections performer by customer

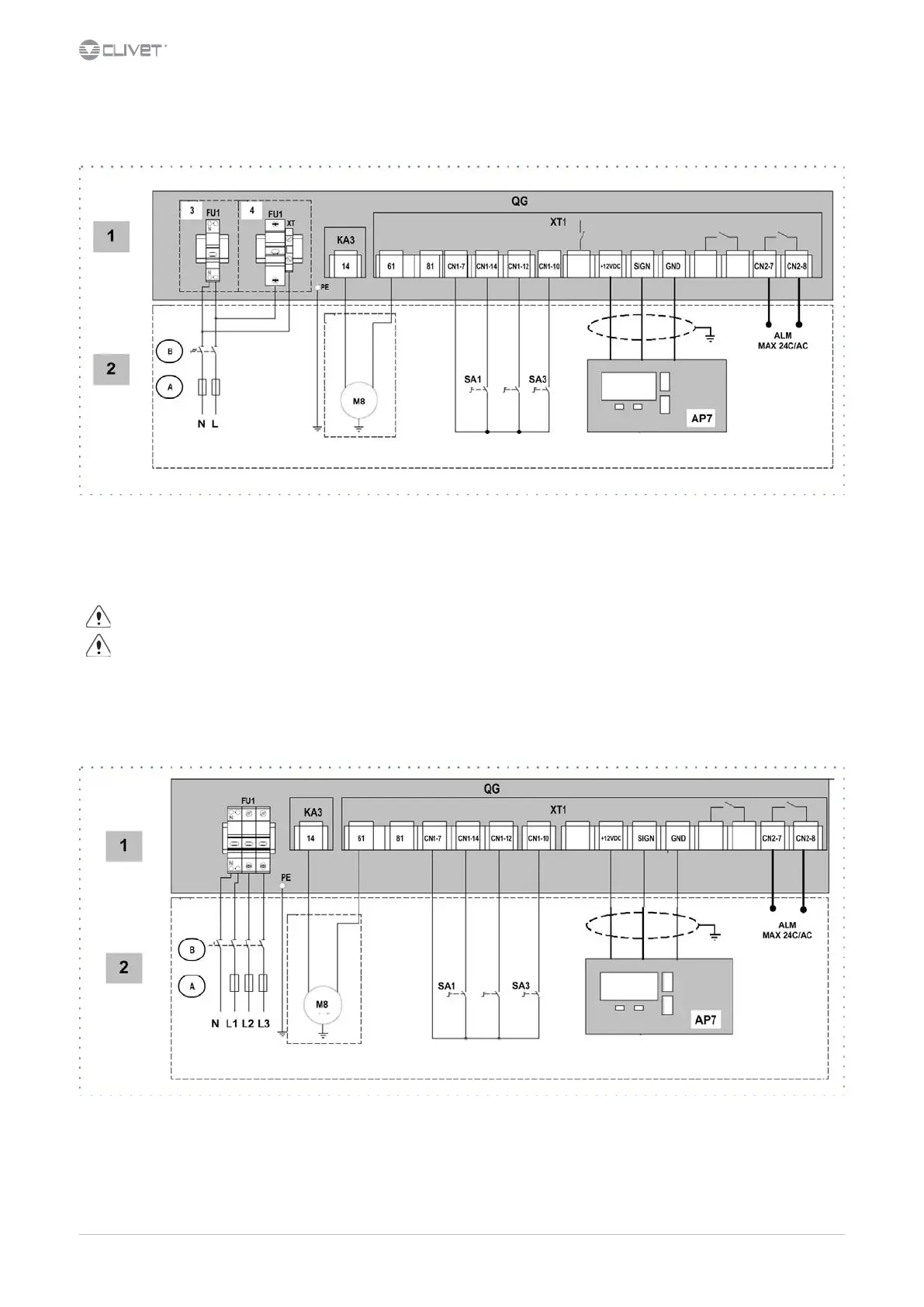

Electrical panel
sizes 21÷71 - 230/1/50
1 Unit QG Electrical panel
2 Connections perfomer by customer AP7 Room keypad
3 Only for sizes 21-41 SA1 On / Standby remote
6.7 SA1 = On / Standby remotep.22
4 Only for sizes 51-71 SA3 Second setpoint enabling
7.10 SA3: 2° set pointp.25
A Fuses
Provided by the customer
M8 Pump use
Provided by the customer
B Isolating switch
Provided by the customer
ALM Cumulative fault signal,max 24v/AC
FU1 Fuse XT1 Terminal block of the customer connections
Electrical panel
sizes 51÷71 - 400/3/50
To Next Page
