46 Series Installation and User Guide V1.0
11

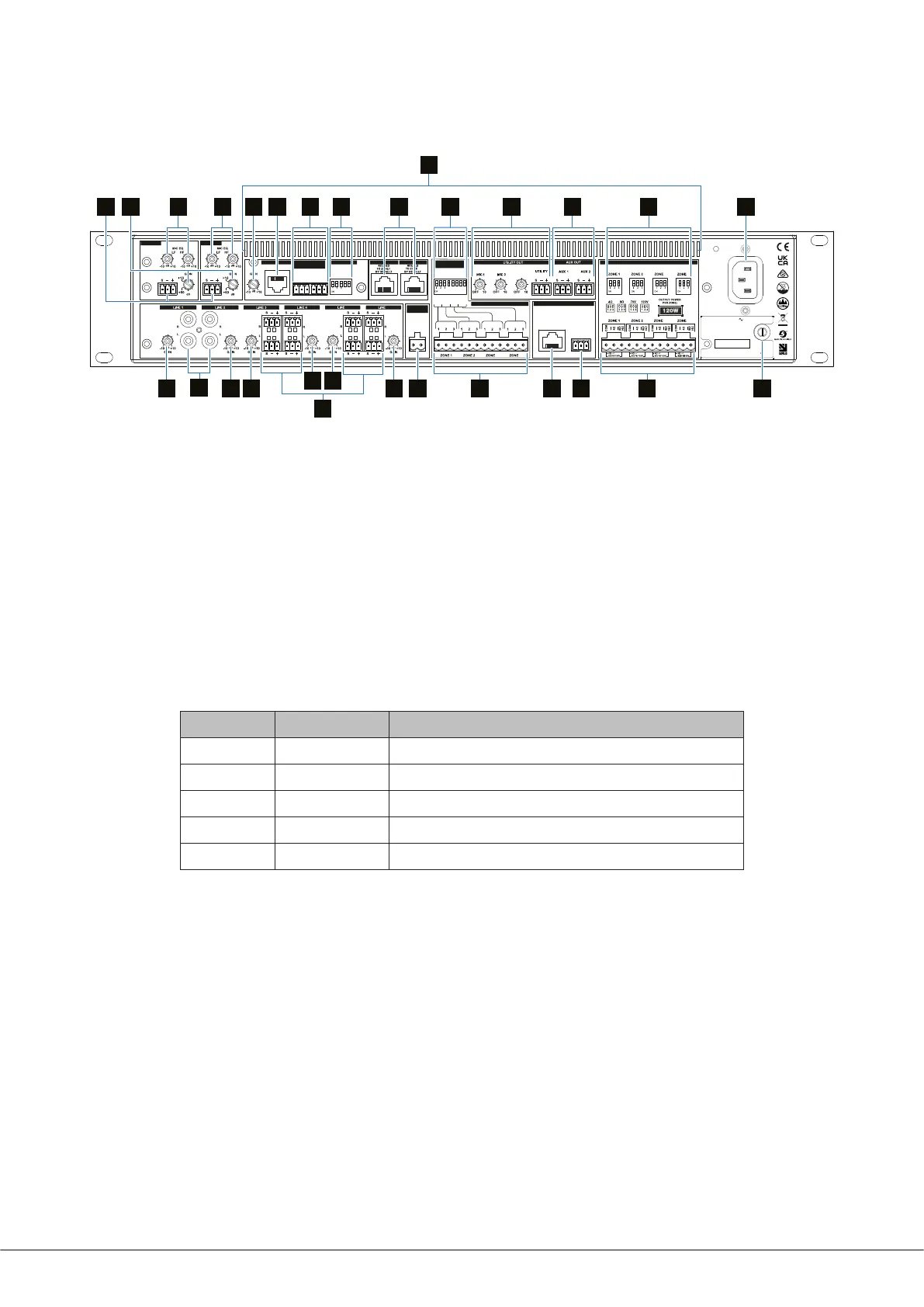

Rear panel description
2
1
2
MUSIC
1
2
3
4
3
4
THIS UNIT MUST
BE EARTHED
5
6
MIC 1 INPUT
0V
Z1 Z2
Z3
Z4
+V
MIC 1 ACCESS
CONTACTS
1: PAGE MODE
2: Z1 MIC PRI.
3: Z2 MIC PRI.
4: Z3 MIC PRI.
5: Z4 MIC PRI.
FACILITY PORT 1
FACILITY PORT 2
REMOTE PORT
SETTINGS
LOCAL / UP
REMOTE / DOWN
LEVEL
SOURCE
LEVEL
SOURCE
LEVEL
SOURCE
LEVEL
SOURCE
DEFAULT Z1
DEFAULT Z2
MUSIC
MUTE
REMOTE MUSIC CONTROL PORTS
ETHERNET & RS232 INTERFACES
10/100Mbit
LINK
100M
0V Rx Tx
SPEAKER OUTPUTS AND CONFIGURATION
MIC 1 SETTINGS
CDPM INTERFACE
MIC 2 INPUT
3
4
54
87654
FUSE
CAUTION: REPLACE WITH SAME TYPE T5AH 250V FUSE
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE
CLOUD ELECTRONICS LTD.
SHEFFIELD, ENGLAND
www.cloud.co.uk
50-60Hz 150w
85V - 265V
46-120MK2
DE MÊME TYPE DE T5AH 250V.
20 3221
14
14 31 25 26 3314
14
1414
17 17 18 22 24
34
2829 3019
12
23 27
13
15 16
12. LINE 1 and LINE 2 – unbalanced stereo line inputs for music sources.
13. LINE 3 to LINE 6 – balanced stereo line inputs for music sources.
14. GAIN 1 to GAIN 6 – level trims for each line input.
15. MIC 1 and MIC 2 INPUT – balanced inputs for microphones.
16. GAIN 1 and 2 – level trims for mic inputs.
17. MIC EQ – LF and HF EQ adjustment for each microphone.
18. MIC 1 ACCESS CONTACTS – external paging control port for Mic 1.
19. MIC 1 SETTINGS – 5-pole DIP switch for conguring paging operation:
SWITCH NAME FUNCTION
SW1
PAGE MODE
MIC 1 mode – congures the mic input for paging use
SW2
Z1 MIC PRI.
Enables mic-over-music priority in Zone 1
SW3
Z2 MIC PRI.
Enables mic-over-music priority in Zone 2
SW4
Z3 MIC PRI.
Enables mic-over-music priority in Zone 3
SW4
Z4 MIC PRI.
Enables mic-over-music priority in Zone 4
20. CDPM INTERFACE – RJ45 socket for connection of Cloud PM4/8/12/16 digital paging microphones.
21. GAIN – Input level control for CDPM mic.
22. FACILITY PORT 1 and 2 – RJ45 sockets for connection of remote active input/control modules such as the LM-2, BT-1, L-1
and M-1. These ports may alternatively be used as an additional balanced line input. By default, signals applied here are
routed to Zones 1 and 2 respectively, but Facility Port 1 may be routed to all zones, or each port routed to two zones, by
moving internal jumpers.
23. REMOTE MUSIC CONTROL PORTS – for connection of RL-1 or RSL-6 remote control plates.
46-120MK2 rear panel: 46-240 is functionally identical.
