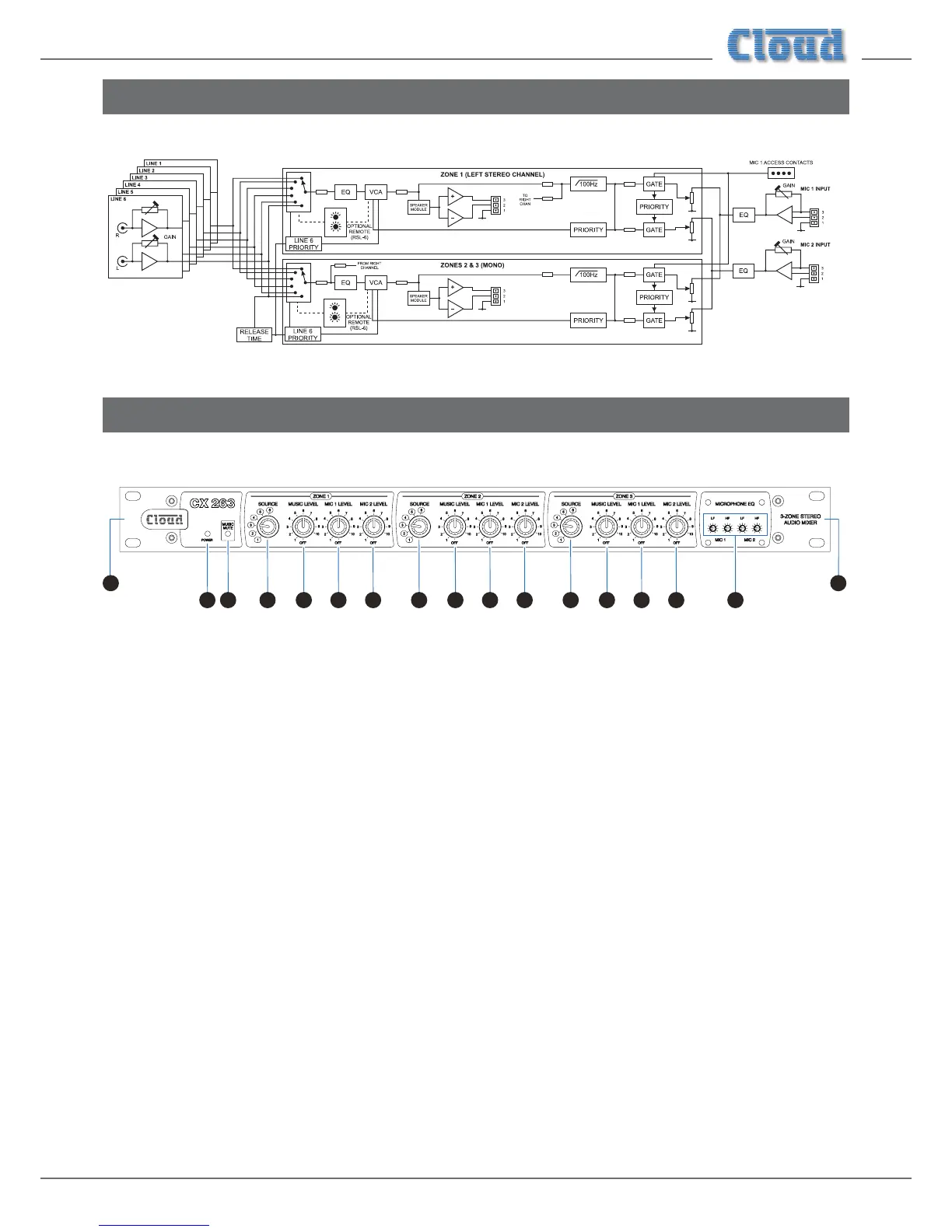

Block Diagram
Description of front panel
16 27 3 4 1 2 3 4 1 2 3 4 5
8 8
1. SOURCE – selects one of the Music Inputs (Line 1 to Line 6) for each Zone. See “Music Inputs” on page 12.
2. MUSIC LEVEL – adjusts the level of the selected Music input in each Zone. See “Gain & level” on page 12.
3. MIC 1 LEVEL – adjusts level of Mic input 1 in each Zone. See page 13.
4. MIC 2 LEVEL – adjusts level of Mic input 2 in each Zone. See page 13.
5. MICROPHONE EQ – preset controls adjusting HF/LF EQ for each Mic Input. See “EQ” on page 14.
6. MUSIC MUTE – indicates (red) when external Music Mute is active. See “Music Mute” on page 11.
7. POWER – Green LED, conrms power is applied to the unit.
8. Rack mounting ears – the unit may be rack-mounted in a standard 19” equipment rack. It requires 1U of rack height.
See “Hardware Considerations” on page 9.
