4. System Overview

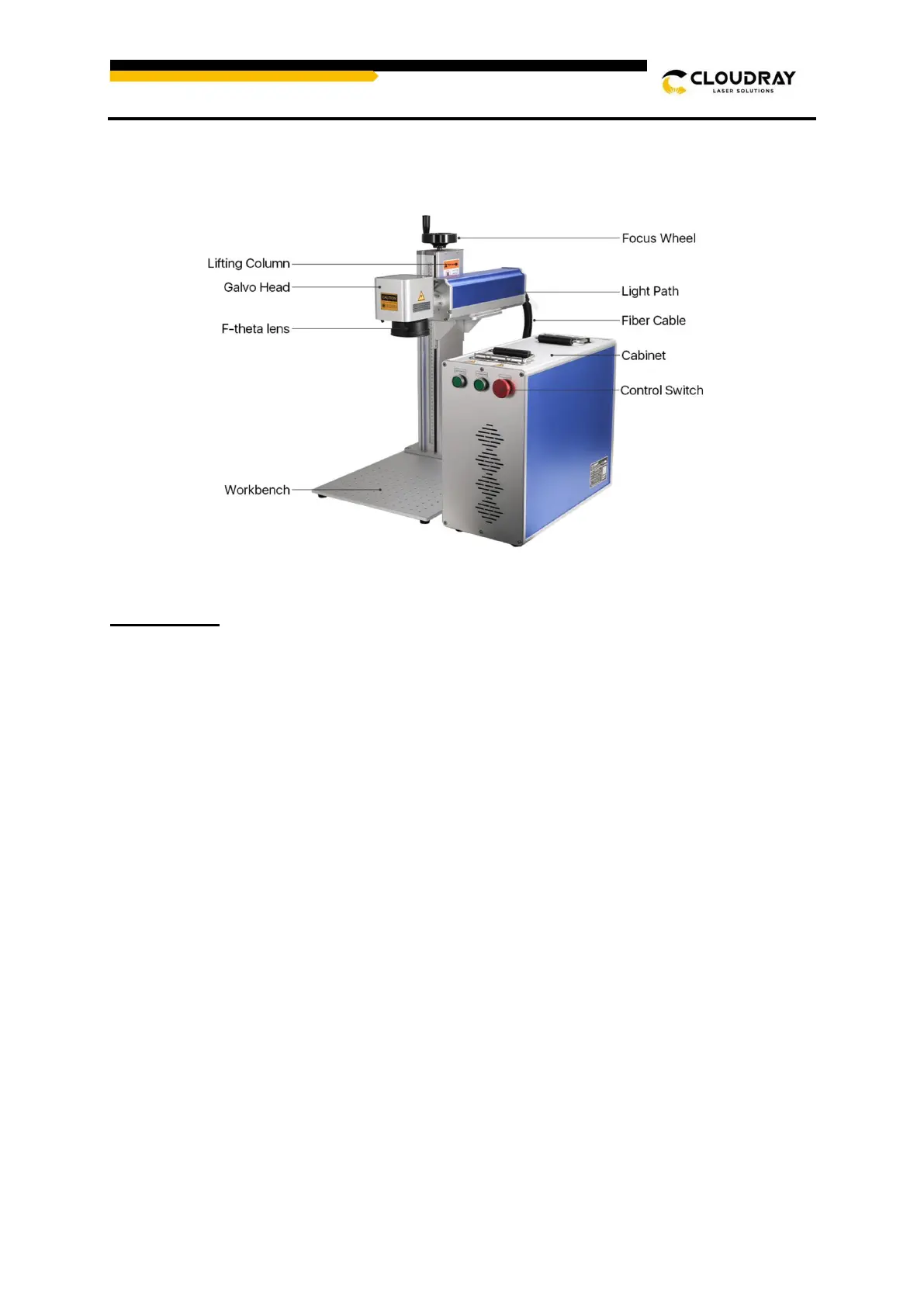

Main Parts
Cabinet——Contains controllers, lasers, power supply units, etc.
Galvo Head——Focuses the laser beam to a fine point, directing it to proper locations on the
target material during engraving.
Workbench——This platform holds the target material, with optional positioning bars to
ensure precise alignment.
Fiber Cable——This transmits the laser beam from its source to the galvo lens.
Lifting Column——Lifting column holds the laser arm and includes a precise graduated rule
for quickly adjusting height to work with different materials and thicknesses.
Focus Wheel——This wheel moves the laser arm up and down for the correct alignment
across different materials and thicknesses.
F-Theta Lens——Focused beam is the strongest energy point.
Control Switch——Laser marking machine start-stop control switch.
Light Path——Internal isolator with laser, red light and beam combiner (some models).
