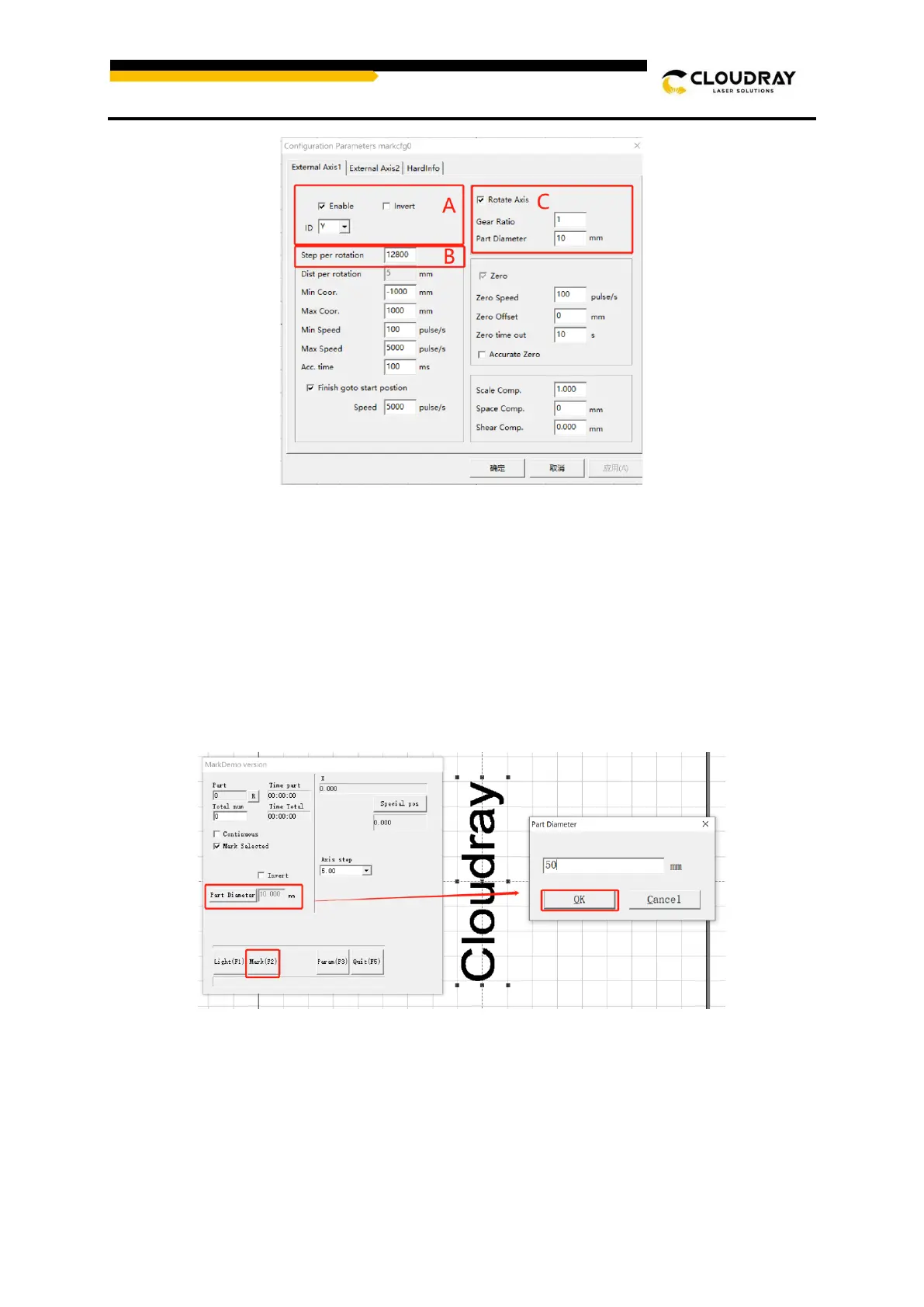

A. Enable extended axis, reverse mode, enable Y axis (enable X or Y axis according to the
direction in which the rotation axis is placed).
B. The value of the number of pulses per revolution is the subdivision value on the drive, and
the number of pulses usually used is 12800 or 25600.
C. Enable the function of the rotary, the gear ratio value is determined according to the
reduction ratio of the rotating axis, the workpiece diameter is the actual diameter of the
workpiece to be processed.
6. Enter the diameter of the workpiece to mark.
7. Press Mark(F2), the fiber laser will mark your image.
6.5.3. Vector file rotate marking
1. Import vector files, modify text size and parameters, and fill files
